0396.6002.80.37

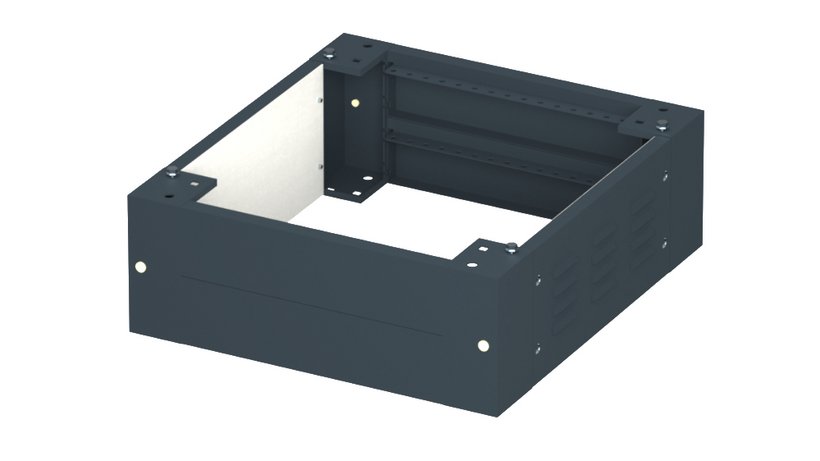

Bases height 7.87" for cabinets type H390 and H395
- Quick and easy installation
- For free-standing single and ganged-together modular cabinets
- High lifting capacity
Product description
Bases for installation under cabinets.
Front & back pieces are removeable after assembly for easy access to underside of cabinet.
Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools.
Technical data
-
Article number: 0396.6002.80.37
-
Dimensions: suitable for width : 600 mm suitable for depth : 800 mm
-
Variant: with ventilation slots
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm -
Base depth (t): 750 mm
Notice
- To achieve highest stability for transportation purposes, the side pieces can be screwed in and the corner pieces have a second mounting hole that can be utilized.
- Bases with order numbers ending in “-37” are equipped with air vents for improved air circulation. If used with cabinet H390, an offset of 25 mm will be in the back.
- If bases are ganged together, a base cross rail is required for mounting of cable support rails.
- From W-600mm cable entry with brush strip (clearance 270x48mm) is available upon request.
- Corner pieces with front and back pieces pre-assembled and side pieces (1 packet each). Mounting hardware and installation instructions.
0396-0000-80-07
Base Crossbar
Suitable for depth
800 mm
Material
Sheet steel
Suitable for
Base H-200 mm high
0395-6018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
