Plan your cable conduit system with häwa cable conduits
For your planning, it is important that you get an understanding of the terms we use. This is the prerequisite for configuring your system correctly. To determine the right molded parts, start at a starting point and follow the “process”.
laying direction
We always look at the direction of laying of the next duct part, based on the duct part positioned in front of it. The position of the cover plays a crucial role here: it is always at the top when considering this.

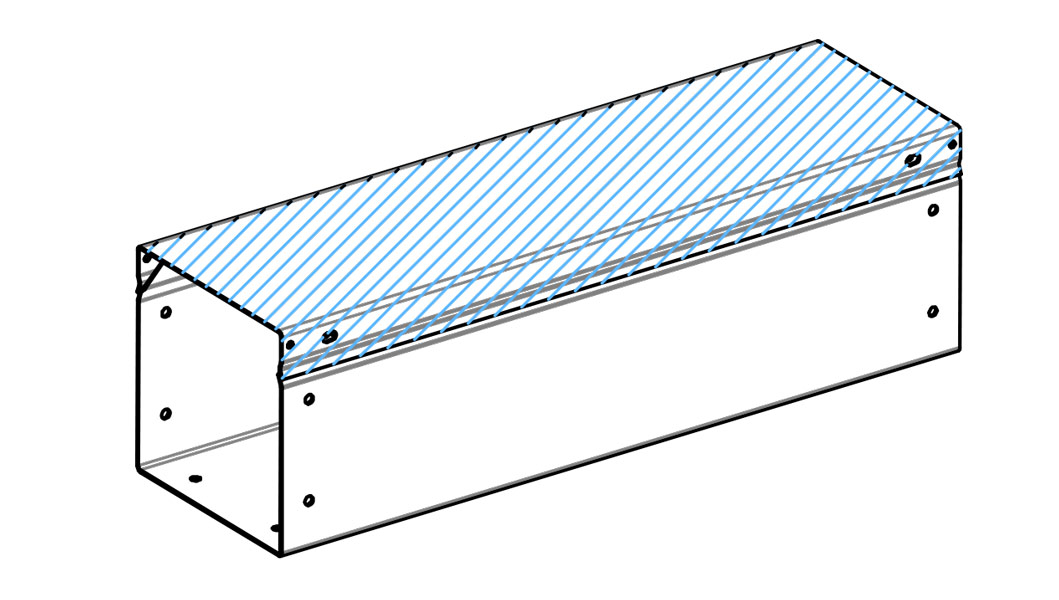

No change of direction = “straight”
The position of the lid does not change from the previous component.

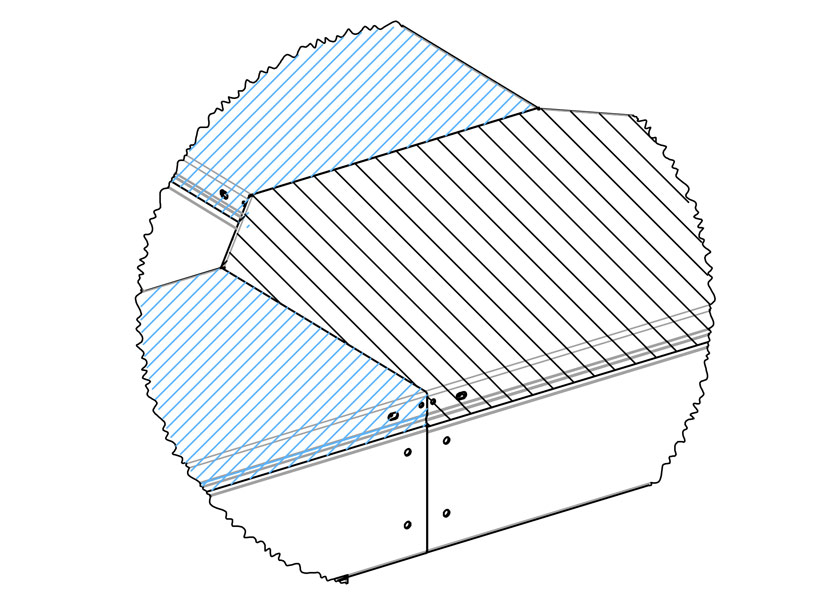

Horizontal direction change = “horizontal left” or “horizontal right”
The position of the lid does not change from the previous component.

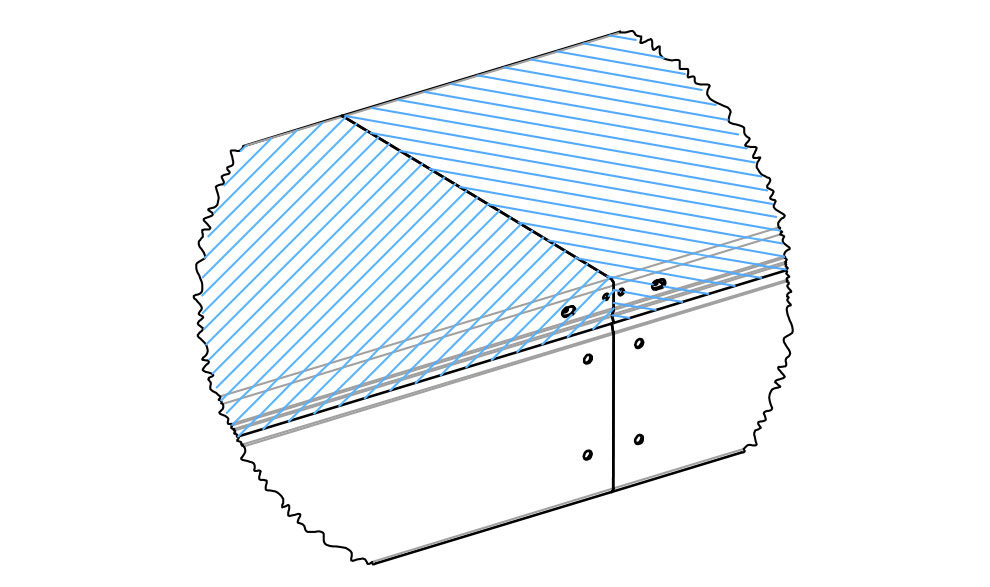

Vertical direction change = “vertically down” or “vertically up”
The position of the cover changes from the previous component.
Laying directions Special parts

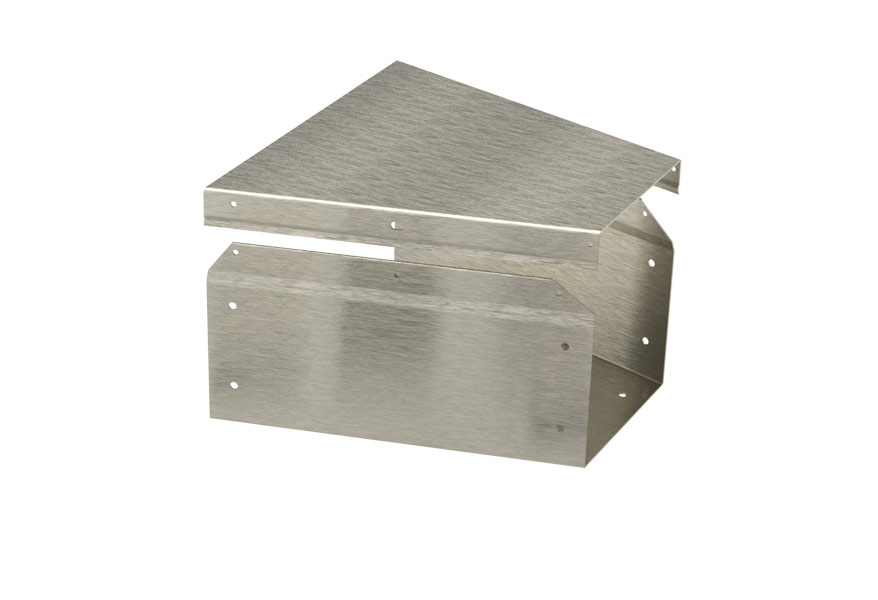

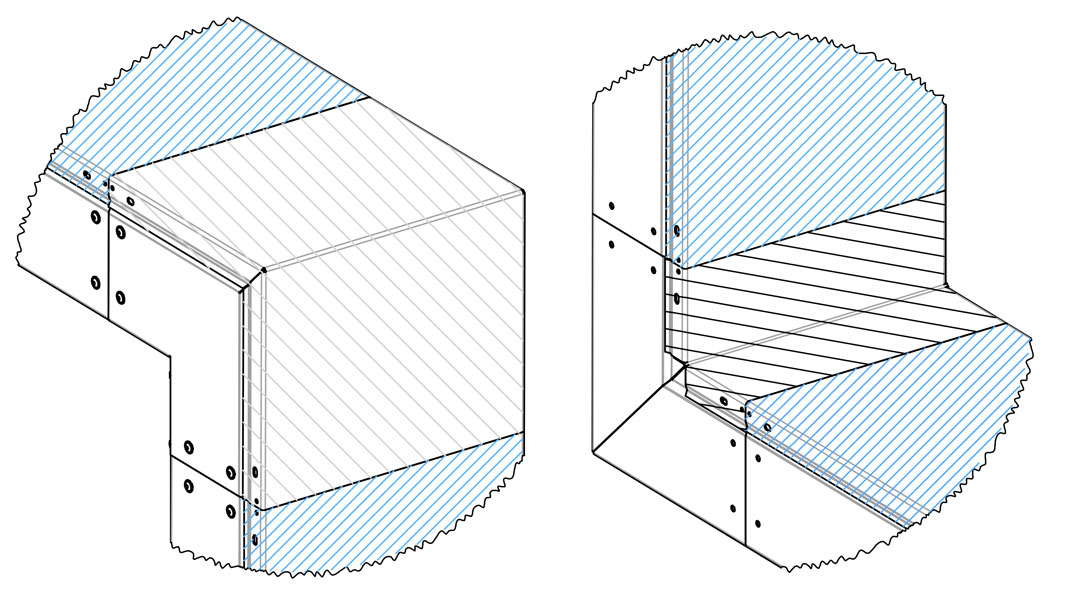

Turning angle
Horizontal change of direction + “exit left behind” or “exit right behind”
The position of the cover changes from the previous component.

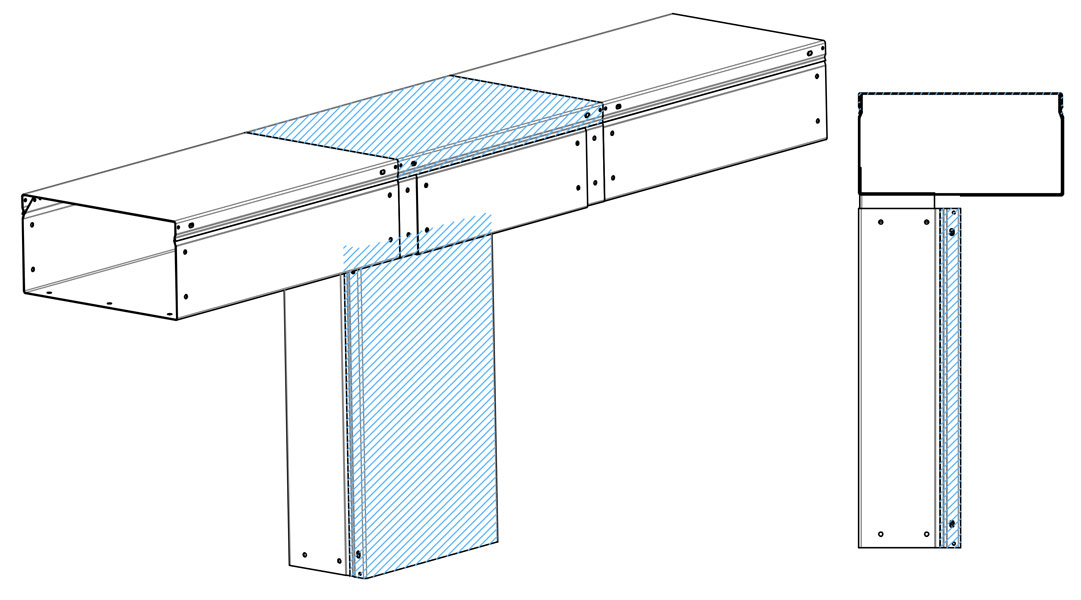

Turning T-piece
No change in direction = “straight”
The position of the cover does not change in relation to the previous component.
Turning T-piece
Vertical change of direction = “vertical down”
The position of the cover changes in relation to the previous component.

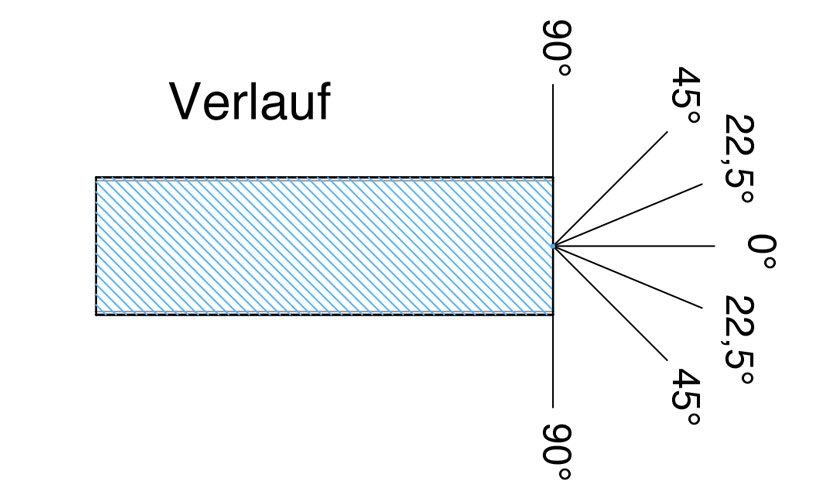

Angle specifications
Change of direction in the direction of travel

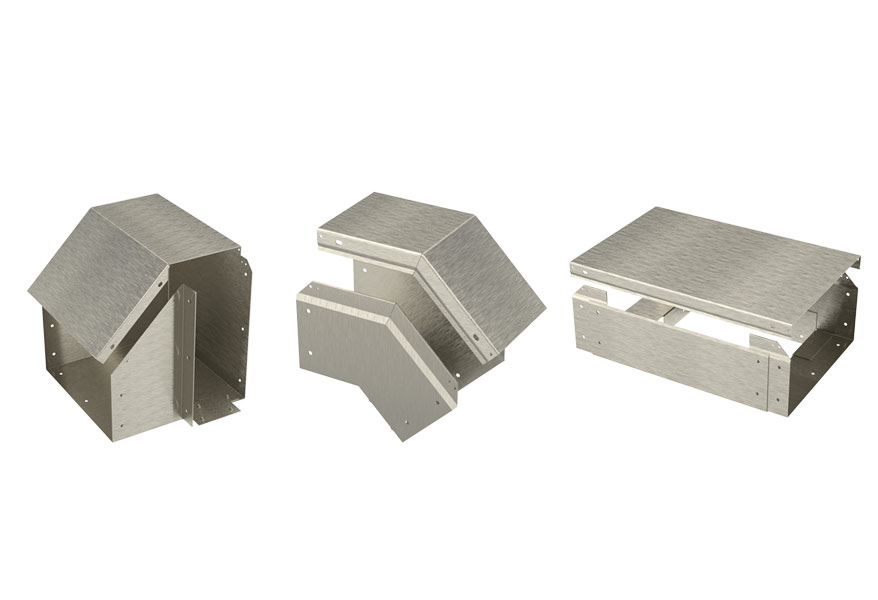

Notes on connecting parts of trunking sections

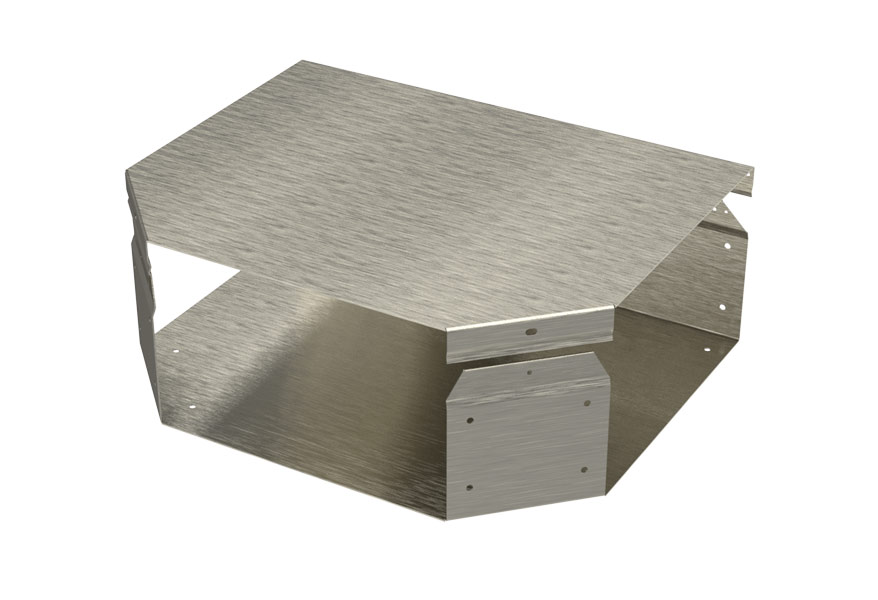

T-piece
connection point 2 requires different degrees of the connection angle than connection point 1.
Reducer
These connecting parts are included in the scope of delivery.

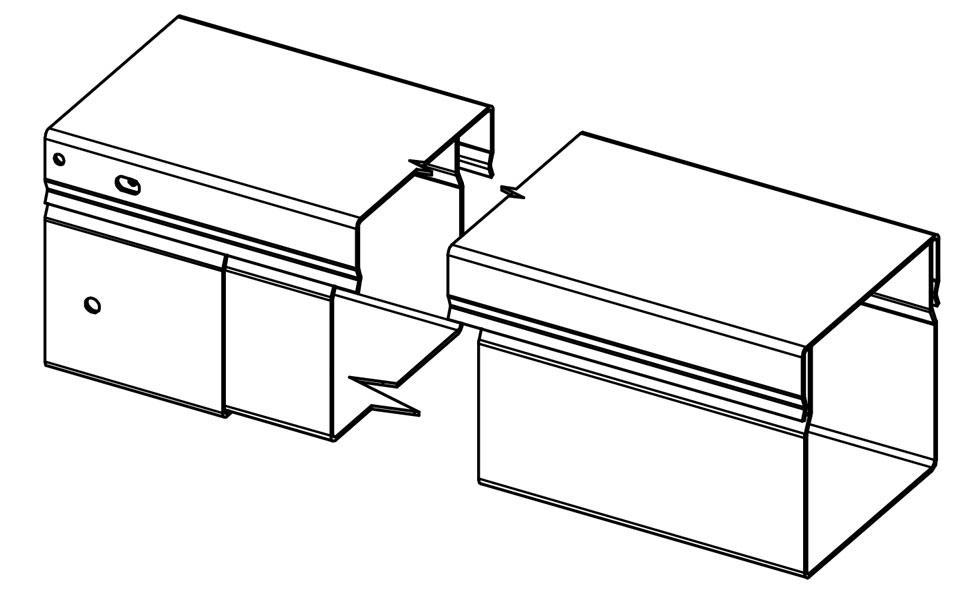

Telescopic
connecting pieces are only required at connection point 1.
The opposite side is pushed into a (straight) cable duct.
Turn T-piece + turn angle
connecting pieces are only required at connection point 1.
These are already present at connection point 2.
