Control Enclosures

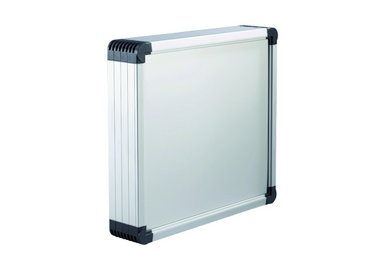

HLG Basic

Control enclosure made of extruded aluminum profiles
Profile depths 60, 90, 130 or 210 mm.
Width and height are variable up to max. 600 x 700 mm.

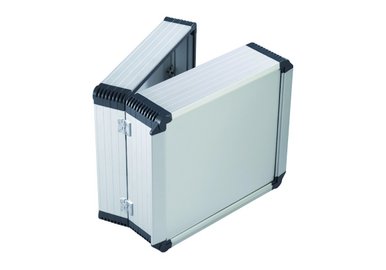

It is possible to mount a door with the same profile
Mounting of a pendant arm or lift system is possible at the rear panel, 90 mm and deeper enclosures can also be connected from the top or bottom

Art No.	Type	Dimensions	Remember
7505-xxxx-xx-1x	Extruded aluminum profiles	Width: variable up to max. 600 mm Height: variable up to max. 700 mm

HLG Touch

Control enclosure made of extruded aluminum profiles with lateral integrated handle flange
Profile depths 60, 90, 130 or 210 mm.
Variable width and height up to max. 600 x 700 mm
It is possible to mount a door with the basic profile
Mounting of a pendant arm or lift system is possible at the rear panel, 90 mm and deeper enclosures can also be connected from the top or bottom

Art No.	Type	Dimensions	Remember
7505-xxxx-xx-2x	with integrated handle flange	Width: variable up to max. 600 mm Height: variable up to max. 700 mm

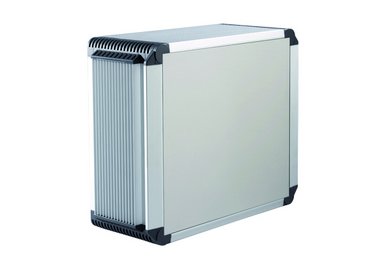

HLG Cool

Control enclosure made of extruded aluminum profiles with lateral integrated handle flange
The continuous integrated aluminum side profile enables extremely high passive heat dissipation
Profile depths 130 or 210 mm.
Variable width and height up to max. 600 x 700 mm
It is possible to mount a door with the basic profile
Mounting of a pendant arm or lift system is possible at the rear panel, 90 mm and deeper enclosures can also be connected from the top or bottom

Art No.	Type	Dimensions	Remember
7505-xxxx-xx-3x		Width: variable up to max. 600 mm Height: variable up to max. 700 mm
