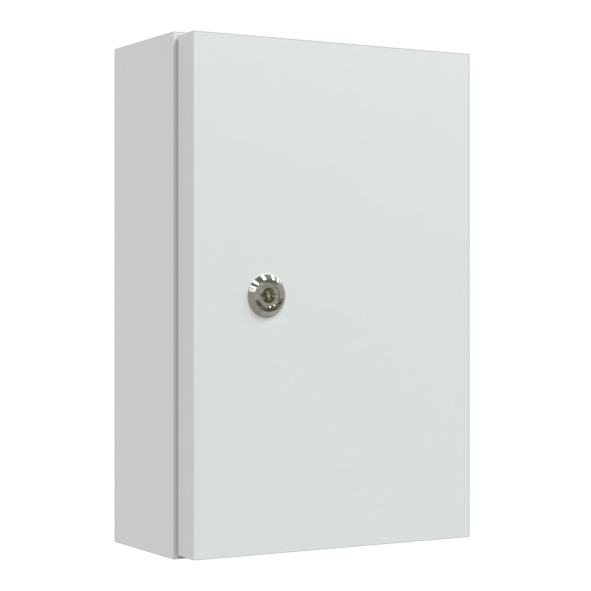

Our compact69 case

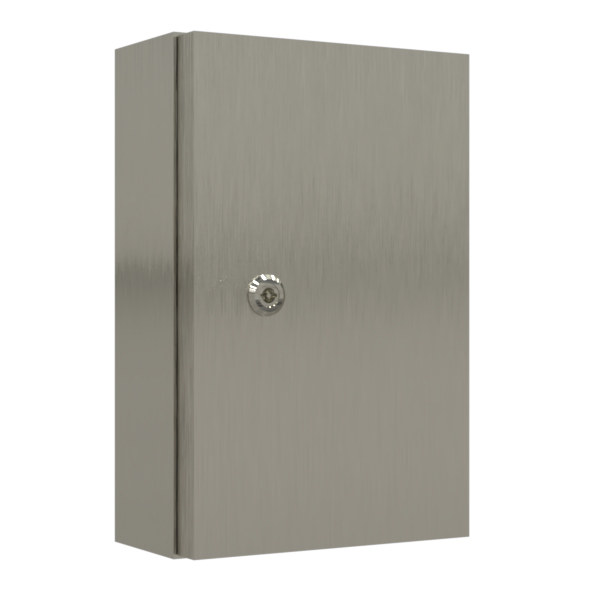

Thanks to the high protection class IP66/69 and the optional vibration-resistant design, our compact69 housings are ideal for use in harsh environments, in areas with high humidity and moisture, and on, in or under vehicles. Our optional sealing concept eliminates any kind of gap, so that a compact69 in stainless steel can also be used in the pharmaceutical, food and cleanroom industries.
Please feel free to contact us!
Main features
- Protection class: IP66/IP69
- Steam-jet and high-pressure cleaner-proof and sealed against strong jets of water

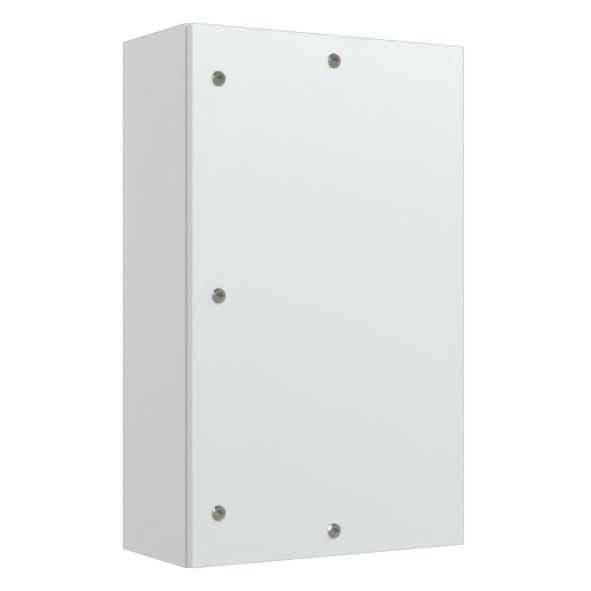

- Hinges and twist locks can be made vibration-proof on request
- Concealed hinges, opening approx. 120°
Product description
- compact69 enclosures, single door, prepared for use of häwa enclosure and terminal box accessories
- Protective conductor connection in accordance with DIN EN 61439-1, M6x16 bolt on door and body
- Special triple folded frame, 25 mm (top/bottom) or 31.5 mm (side) to protect the seal against direct water jets, prevents dirt and water from entering when the door is opened
- Door with seamlessly foamed seal, standard hinge on the right, change of hinge by turning the enclosure
- Hinges made of metal, concealed, opening approx. 120°
- Lock: 3 mm double-bit operation
- Hinges and turn buckles are available in a vibration-proof version on request; the number and distances are defined by the respective width and height of the enclosure.
- Door from enclosure width 226 mm with bolt, M4x8 for attaching reinforcement profiles or for free disposal. Door for enclosure width up to 225 mm without bolt.
- Enclosure with depth 120 mm prepared for the installation of mounting plate or DIN rail, from depth 200 mm for mounting plate
- Wall mounting using 4 pan head rivet nuts with M6 internal thread in the rear panel
