Type 1201

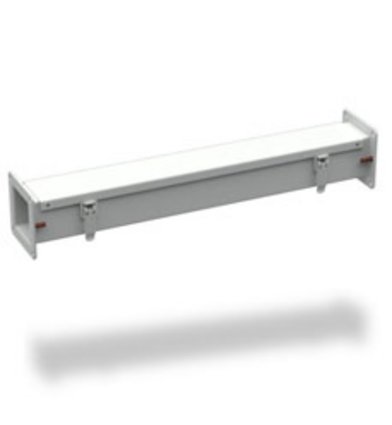

Cable Duct

The up to 2 m/78,74" long straight cable ducts are equipped with two welded flanges.
The hinged cover can be opened by 180° and closed tightly with locks.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).


1201-0106-05-00	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	500 mm	UL	Sheet steel
1201-0106-10-00	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	1000 mm	UL	Sheet steel
1201-0106-20-00	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	2000 mm	UL	Sheet steel
1201-0110-05-00	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	500 mm	UL	Sheet steel
1201-0110-10-00	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	1000 mm	UL	Sheet steel
1201-0110-20-00	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	2000 mm	UL	Sheet steel
1201-0112-05-00	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	500 mm	UL	Sheet steel
1201-0112-10-00	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	1000 mm	UL	Sheet steel
1201-0112-20-00	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	2000 mm	UL	Sheet steel
1201-0115-05-00	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	500 mm	UL	Sheet steel
1201-0115-10-00	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	1000 mm	UL	Sheet steel
1201-0115-20-00	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	2000 mm	UL	Sheet steel

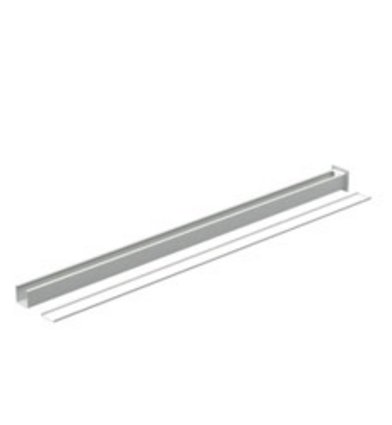

Cable Duct kürzbar

The 2.5 m/98,43" long cable ducts can be cut to length by the customer and are equipped with a welded flange on one side only. The second flange, as well as the hinges and quick release buckle latches are welded on site.
The cable ducts are closed tightly with quick release buckle latches.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).


1201-0106-25-00	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	2500 mm	Sheet steel
1201-0110-25-00	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	2500 mm	Sheet steel
1201-0112-25-00	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	2500 mm	Sheet steel
1201-0115-25-00	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	2500 mm	Sheet steel

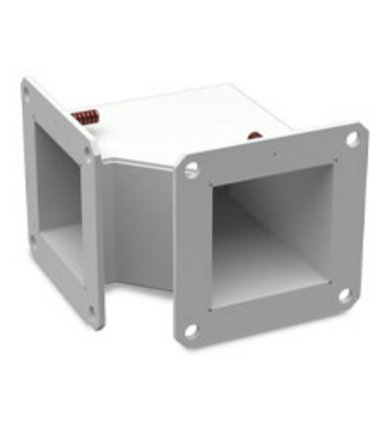

Elbow

Elbows are equipped with 2 welded flanges and are used to change the installation direction.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).


1201-0106-00-03	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	90°	variable	UL
1201-0106-13-03	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	45°	variable	UL
1201-0110-00-03	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	90°	variable	UL
1201-0110-13-03	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	45°	variable	UL
1201-0112-00-03	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	90°		UL
1201-0112-00-08	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	90°	variable	UL
1201-0112-13-03	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	45°		UL
1201-0112-13-08	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	45°	variable	UL
1201-0115-00-03	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	90°	variable	UL
1201-0115-13-03	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	45°	variable	UL

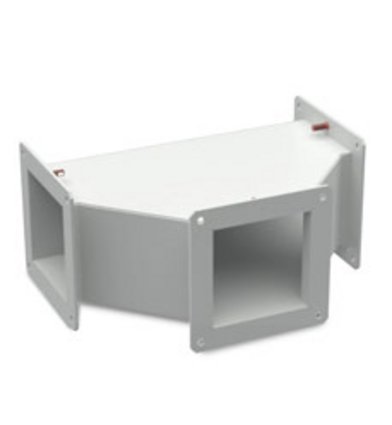

T-Section

T-sections are used for cable routing in various directions. They are equipped with welded flanges at each outlet.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).


1201-0106-00-04	Cable duct system type 1201	60 x 60 mm/2,36 x 2,36"	90°	variable	UL
1201-0110-00-04	Cable duct system type 1201	100 x 100 mm/3,94 x 3,94"	90°	variable	UL
1201-0112-00-04	Cable duct system type 1201	200 x 100 mm/7,87 x 3,94"	90°	variable	UL
1201-0115-00-04	Cable duct system type 1201	150 x 150 mm/5,91 x 5,91"	90°	variable	UL
