Type 1204/1207

Cable Duct

The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
The chamfered duct ends permit a continuous insertion.
The duct ends have pre-drilled holes for the connection screws of u-brackets or connection brackets.


1204-0003-10-00	Cable duct system type 1204	1,18 x 1,18 inch	1000 mm	Sheet steel
1204-0003-20-00	Cable duct system type 1204	1,18 x 1,18 inch	2000 mm	Sheet steel
1204-0006-05-00	Cable duct system type 1204	60 x 60 mm/2,36 x 2,36"	500 mm	Sheet steel
1204-0006-10-00	Cable duct system type 1204	60 x 60 mm/2,36 x 2,36"	1000 mm	Sheet steel
1204-0006-20-00	Cable duct system type 1204	60 x 60 mm/2,36 x 2,36"	2000 mm	Sheet steel
1204-0010-05-00	Cable duct system type 1204	100 x 100 mm/3,94 x 3,94"	500 mm	Sheet steel
1204-0010-10-00	Cable duct system type 1204	100 x 100 mm/3,94 x 3,94"	1000 mm	Sheet steel
1204-0010-20-00	Cable duct system type 1204	100 x 100 mm/3,94 x 3,94"	2000 mm	Sheet steel
1204-0015-05-00	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	500 mm	Sheet steel
1204-0015-10-00	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	1000 mm	Sheet steel
1204-0015-20-00	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	2000 mm	Sheet steel
1204-0030-05-00	Cable duct system type 1204	11,81 x 5,91 inch	500 mm	Sheet steel
1204-0030-10-00	Cable duct system type 1204	11,81 x 5,91 inch	1000 mm	Sheet steel
1204-0030-20-00	Cable duct system type 1204	11,81 x 5,91 inch	2000 mm	Sheet steel
1207-0003-10-00	Cable duct system type 1207	1,18 x 1,18 inch	1000 mm	Stainless steel no. 1.4301
1207-0003-20-00	Cable duct system type 1207	1,18 x 1,18 inch	2000 mm	Stainless steel no. 1.4301
1207-0006-05-00	Cable duct system type 1207	60 x 60 mm/2,36 x 2,36"	500 mm	Stainless steel no. 1.4301
1207-0006-10-00	Cable duct system type 1207	60 x 60 mm/2,36 x 2,36"	1000 mm	Stainless steel no. 1.4301
1207-0006-20-00	Cable duct system type 1207	60 x 60 mm/2,36 x 2,36"	2000 mm	Stainless steel no. 1.4301
1207-0010-05-00	Cable duct system type 1207	100 x 100 mm/3,94 x 3,94"	500 mm	Stainless steel no. 1.4301
1207-0010-10-00	Cable duct system type 1207	100 x 100 mm/3,94 x 3,94"	1000 mm	Stainless steel no. 1.4301
1207-0010-20-00	Cable duct system type 1207	100 x 100 mm/3,94 x 3,94"	2000 mm	Stainless steel no. 1.4301
1207-0015-05-00	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	500 mm	Stainless steel no. 1.4301
1207-0015-10-00	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	1000 mm	Stainless steel no. 1.4301
1207-0015-20-00	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	2000 mm	Stainless steel no. 1.4301
1207-0030-05-00	Cable duct system type 1207	11,81 x 5,91 inch	500 mm	Stainless steel no. 1.4301
1207-0030-10-00	Cable duct system type 1207	11,81 x 5,91 inch	1000 mm	Stainless steel no. 1.4301
1207-0030-20-00	Cable duct system type 1207	11,81 x 5,91 inch	2000 mm	Stainless steel no. 1.4301

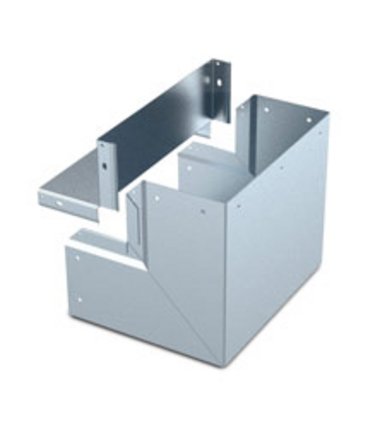

Elbow

The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This form part has pre-drilled holes for the connecting screws of the connection brackets.


1204-0306-13-00	Cable duct system type 1204	60 x 60 mm/2,36 x 2,36"	45°	horizontal	Sheet steel
1204-0306-90-00	Cable duct system type 1204	60 x 60 mm/2,36 x 2,36"	90°	horizontal	Sheet steel
1204-0310-13-00	Cable duct system type 1204	100 x 100 mm/3,94 x 3,94"	45°	horizontal	Sheet steel
1204-0310-90-00	Cable duct system type 1204	100 x 100 mm/3,94 x 3,94"	90°	horizontal	Sheet steel
1204-0315-13-00	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	45°	horizontal	Sheet steel
1204-0315-90-00	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	90°	horizontal	Sheet steel
1204-0330-13-00	Cable duct system type 1204	11,81 x 5,91 inch	45°	horizontal	Sheet steel
1204-0330-90-00	Cable duct system type 1204	11,81 x 5,91 inch	90°	horizontal	Sheet steel
1204-1315-00-90	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	90°		Sheet steel
1204-1315-01-35	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	45°		Sheet steel
1204-1315-02-25	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	45°		Sheet steel
1204-1315-02-70	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	90°		Sheet steel
1204-1330-00-90	Cable duct system type 1204	11,81 x 5,91 inch	90°		Sheet steel
1204-1330-01-35	Cable duct system type 1204	11,81 x 5,91 inch	45°		Sheet steel
1204-1330-02-25	Cable duct system type 1204	11,81 x 5,91 inch	45°		Sheet steel
1204-1330-02-70	Cable duct system type 1204	11,81 x 5,91 inch	90°		Sheet steel
1207-0306-13-00	Cable duct system type 1207	60 x 60 mm/2,36 x 2,36"	45°	variable	Stainless steel no. 1.4301
1207-0306-90-00	Cable duct system type 1207	60 x 60 mm/2,36 x 2,36"	90°	variable	Stainless steel no. 1.4301
1207-0310-13-00	Cable duct system type 1207	100 x 100 mm/3,94 x 3,94"	45°	variable	Stainless steel no. 1.4301
1207-0310-90-00	Cable duct system type 1207	100 x 100 mm/3,94 x 3,94"	90°	variable	Stainless steel no. 1.4301
1207-0315-13-00	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	45°	variable	Stainless steel no. 1.4301
1207-0315-90-00	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	90°	variable	Stainless steel no. 1.4301
1207-0330-13-00	Cable duct system type 1207	11,81 x 5,91 inch	45°	variable	Stainless steel no. 1.4301
1207-0330-90-00	Cable duct system type 1207	11,81 x 5,91 inch	90°	variable	Stainless steel no. 1.4301
1207-1315-00-90	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	90°		Stainless steel no. 1.4301
1207-1315-01-35	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	45°		Stainless steel no. 1.4301
1207-1315-02-25	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	45°		Stainless steel no. 1.4301
1207-1315-02-70	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	90°		Stainless steel no. 1.4301
1207-1330-00-90	Cable duct system type 1207	11,81 x 5,91 inch	90°		Stainless steel no. 1.4301
1207-1330-01-35	Cable duct system type 1207	11,81 x 5,91 inch	45°		Stainless steel no. 1.4301
1207-1330-02-25	Cable duct system type 1207	11,81 x 5,91 inch	45°		Stainless steel no. 1.4301
1207-1330-02-70	Cable duct system type 1207	11,81 x 5,91 inch	90°		Stainless steel no. 1.4301

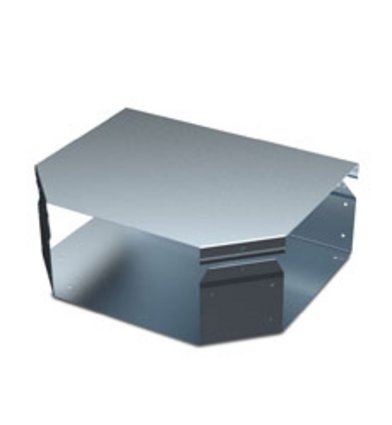

T-Section

The snap-on cable duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This accessory is provided with pre-drilled holes for the attachment screws of the connection brackets.


1204-0406-00-00	Cable duct system type 1204	60 x 60 mm/2,36 x 2,36"	90°	variable	Sheet steel
1204-0410-00-00	Cable duct system type 1204	100 x 100 mm/3,94 x 3,94"	90°	variable	Sheet steel
1204-0415-00-00	Cable duct system type 1204	150 x 150 mm/5,91 x 5,91"	90°	variable	Sheet steel
1204-0430-00-00	Cable duct system type 1204	11,81 x 5,91 inch	90°	variable	Sheet steel
1207-0406-00-00	Cable duct system type 1207	60 x 60 mm/2,36 x 2,36"	90°	variable	Stainless steel no. 1.4301
1207-0410-00-00	Cable duct system type 1207	100 x 100 mm/3,94 x 3,94"	90°	variable	Stainless steel no. 1.4301
1207-0415-00-00	Cable duct system type 1207	150 x 150 mm/5,91 x 5,91"	90°	variable	Stainless steel no. 1.4301
1207-0430-00-00	Cable duct system type 1207	11,81 x 5,91 inch	90°	variable	Stainless steel no. 1.4301
