3080-9081-01-60

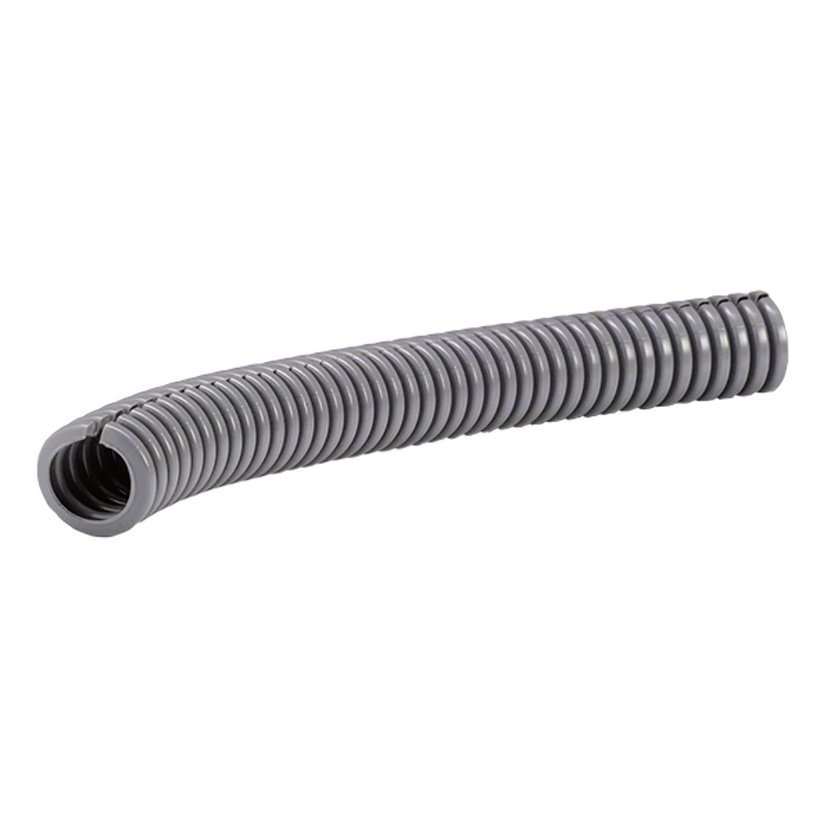

Cable protection conduit, open, universal
Product description
To protect cables and bundle individual wires.
Low-cost cable protection conduit to be used for example inside a control cabinet.
Suitable for light mechanical stresses, very good flexibility
The slotted conduit enables easy laying of pre-terminated cables with plugs.
Also well suited for repairing existing systems.
Technical data
-
Article number: 3080-9081-01-60
-
Material: modified polyethylene
-
Surface: grey
-
BRANDKLASSE: HB
-
Temperature resistance: from: -40 °C/-104 °F to: +90 °C/+194 °F
-
DRUCKBELASTUNG: >400 N/100 mm
-
Size: M 32/P 29
Notice
- Other sizes and cable protection conduits with an area of application “outside control cabinets” available upon request.
- By the metre, min. 5 metres
