Top/Bottom

Rain Cover for Free-Standing Cabinets type H370

Rain cover for free-standing cabinets type H370.
For safe protection against water accummulations in the door gap.
The rain cover can be mounted without subsequent processing of the cabinet by using the drillings of the lifting eyes.


0376-6040-04-00	600 mm	400 mm	Stainless steel no. 1.4301	Brushed
0376-6050-04-00	600 mm	500 mm	Stainless steel no. 1.4301	Brushed
0376-6060-04-00	600 mm	600 mm	Stainless steel no. 1.4301	Brushed
0376-8040-04-00	800 mm	400 mm	Stainless steel no. 1.4301	Brushed
0376-8050-04-00	800 mm	500 mm	Stainless steel no. 1.4301	Brushed
0376-8060-04-00	800 mm	600 mm	Stainless steel no. 1.4301	Brushed
0376-1040-04-00	1000 mm	400 mm	Stainless steel no. 1.4301	Brushed
0376-1050-04-00	1000 mm	500 mm	Stainless steel no. 1.4301	Brushed
0376-1060-04-00	1000 mm	600 mm	Stainless steel no. 1.4301	Brushed
0376-1240-04-00	1200 mm	400 mm	Stainless steel no. 1.4301	Brushed
0376-1250-04-00	1200 mm	500 mm	Stainless steel no. 1.4301	Brushed
0376-1260-04-00	1200 mm	600 mm	Stainless steel no. 1.4301	Brushed

Closed top panel for cabinets type H390

Protective ground connection to DIN EN 61439-1, 1 bolt M8x20
with seamlessly foamed seal
lateral design edge
fixed with Torx screws


0390-6000-40-07	400 mm	600 mm
0390-6000-50-07	500 mm	600 mm
0390-6000-60-07	600 mm	600 mm
0390-8000-40-07	400 mm	800 mm
0390-8000-50-07	500 mm	800 mm
0390-8000-60-07	600 mm	800 mm
0390-1000-40-07	400 mm	1000 mm
0390-1000-50-07	500 mm	1000 mm
0390-1000-60-07	600 mm	1000 mm
0390-1200-40-07	400 mm	1200 mm
0390-1200-50-07	500 mm	1200 mm
0390-1200-60-07	600 mm	1200 mm
0390-1600-40-07	400 mm	1600 mm
0390-2000-40-07	400 mm	2000 mm

Closed top panel for cabinets type H395

Protective ground connection to DIN EN 61439-1, 1 bolt M8x20
with seamlessly foamed seal
lateral design edge
fixed with Torx screws


0395-6000-40-07	400 mm	600 mm
0395-6000-50-07	500 mm	600 mm
0395-6000-60-07	600 mm	600 mm
0395-6000-80-07	800 mm	600 mm
0395-8000-40-07	400 mm	800 mm
0395-8000-50-07	500 mm	800 mm
0395-8000-60-07	600 mm	800 mm
0395-8000-80-07	800 mm	800 mm
0395-1000-40-07	400 mm	1000 mm
0395-1000-50-07	500 mm	1000 mm
0395-1000-60-07	600 mm	1000 mm
0395-1200-40-07	400 mm	1200 mm
0395-1200-50-07	500 mm	1200 mm
0395-1200-60-07	600 mm	1200 mm

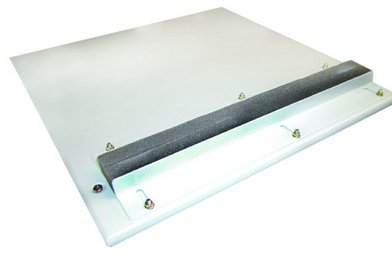

Top panel with rubber clamping

Top panel with movable cable entry plate with rubber clamping (good hydrolysis resistance)
Max. cut-out 460x50 mm, suitable for shockproof plugs etc.
Protective ground protection according to DIN EN 61439-1, 1 stud M8x20
with seamlessly foamed seal
Laterally flanged edges
Secured with Torx screws
Suitable for cabinets H395

Art No.	Suitable for width	Suitable for depth	Remember
0396-7060-60-77	600 mm	600 mm

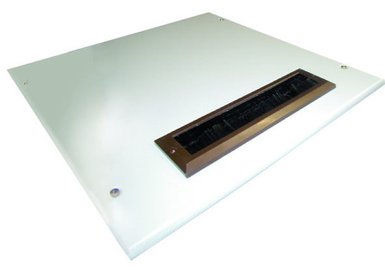

Top panels with brush strip

The brush strip enables an easy cable passage and protects against ingress of dust
Cut-out 272 x 42 mm, suitable for shockproof plug etc.
Protective ground connection: according to DIN EN 61439-1, 1 bolt M8 x 20
with seamlessly foamed seal
lateral design edge
secured with Torx screws

Art No.	Suitable for width	Suitable for depth	Remember
0396-7060-60-47	600 mm	600 mm

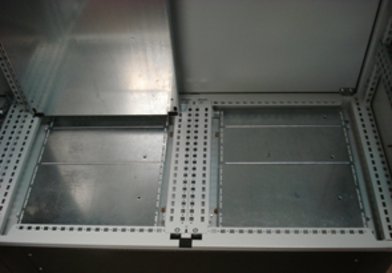

Bottom cable entry plates


0396-4000-40-03	800 mm	400 mm
0396-6000-40-03	1200 mm	400 mm
0396-4000-60-03	800 mm	600 mm
0396-6000-60-03	1200 mm	600 mm
