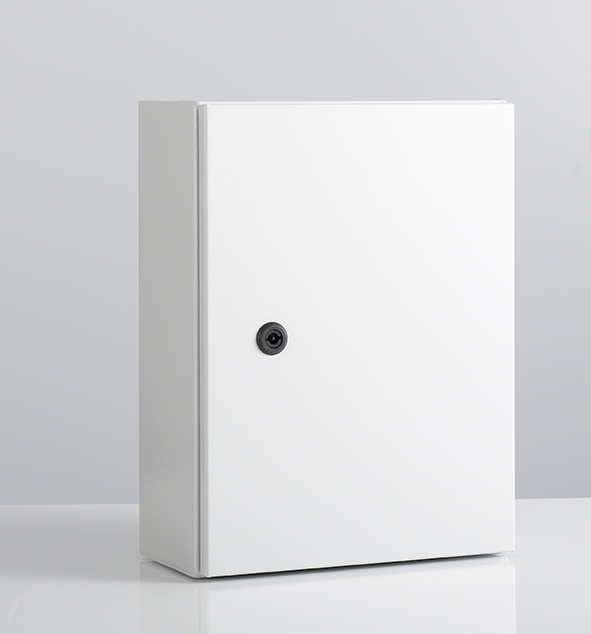

häwa’s new wall enclosures offer almost unlimited application possibilities

At the SPS IPC Drives häwa GmbH presents in hall 5 (stand 170 and 270) a new series of wall enclosures that are available in powder-coated sheet steel, stainless steel 1.4301 or any other suitable material according to customer specifications. The wide opening angle of the doors (180°) through concealed hinges and a protection class of up to IP66 offer the customer almost unlimited application possibilities – even in escape routes and poor weather conditions.

The wall enclosures are available from stock in over 70 sizes, with single or double door, optionally with or without mounting panel and a width from minimum 200 mm up to maximum 1200 mm, a height from minimum 300 mm to maximum 1400 mm and a depth from minimum 125 mm up to maximum 400 mm. For customer-specific solutions it is possible to implement other dimensions. The enclosures are very spacious as the maximum useable depth corresponds to the enclosure depth minus 16 mm. A 26.5 mm wide frame offers a lot of stability. The double edged body frame combined with a small door gap also prevents dirt or water from entering when the door is opened. The enclosures are UL approved according to Nema 1, 2, 5 and 12 as well as Nema 3, 3R and 4X for the stainless steel versions.

häwa also offers a comprehensive range of accessories available for the new wall enclosures, e.g. bases, support feet, wall mounting brackets, cable plates, perforated mounting panels, interior doors with 180° opening angle, a 19” pivoting frame,  universal rails, door opening limiters, universal lights etc. The patented häwa compact handle which takes all common profile half cylinders and hence the locking system of the enclosures can be integrated into the proprietary internal locking system, is available upon request.
