3080-7115-12U15

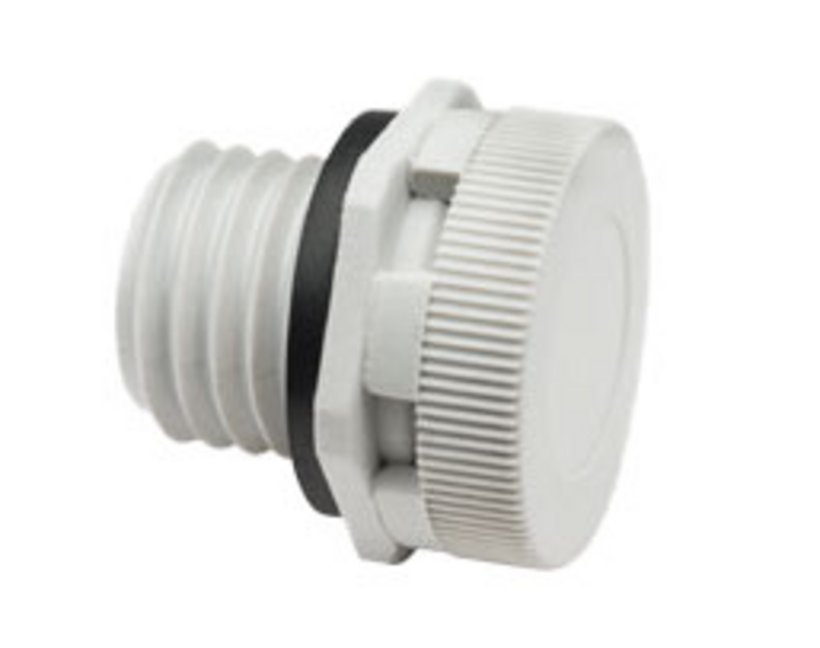

Pressure Compensation Plug
Technical Data
-
Order No.: 3080-7115-12U15
-
Type: Thread with union nut
-
Size: M12x1,5
-
Protection type: IP66/68, IPX9K
Type 1,4/4X -
Material: Body: Plastic to UL94 V0 UV resistant (UL746C (f1))
Sealing: NBR -
Surface: light grey
-
Weight: 2 g
-
Sheet thickness: 0,5 - 4 mm/0,01 - 0,16"
-
Operating temperature: from : -35 °C to : +70 °C
-
Air permeability: 120 ltr./h at ∆p 70mbar
Notice
- We recommend installing two pressure compensation plugs opposite each other in the upper part of the enclosure to ensure optimum pressure compensation.
Assembly instructions:
