3080-7115-30-50

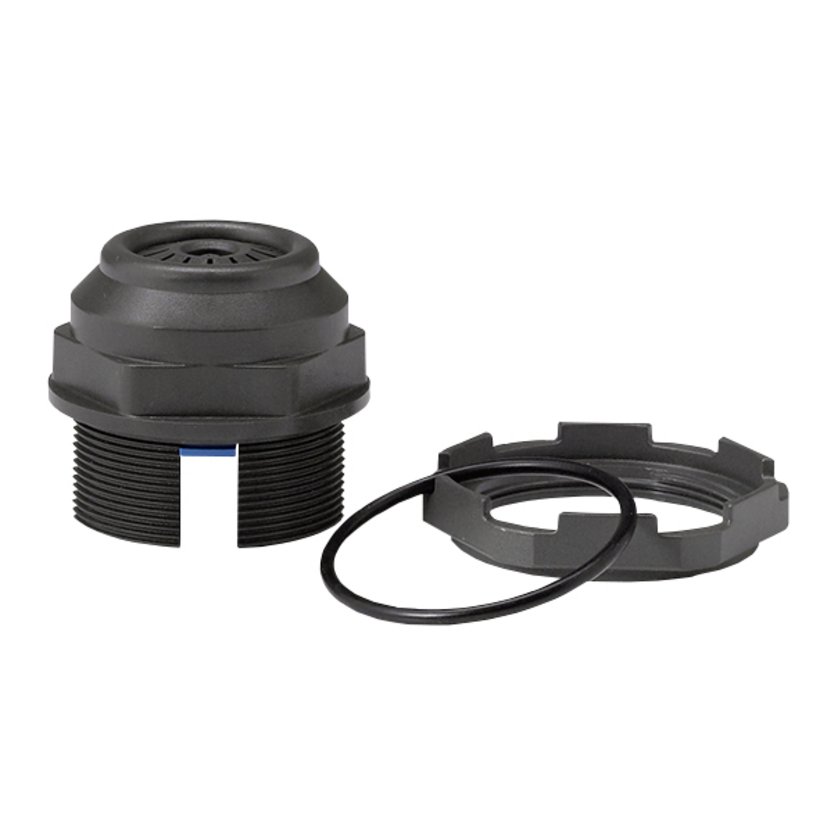

Drainage unit
Technical Data
-
Order No.: 3080-7115-30-50
-
Protection type: IP66/IP67/IP69K
-
Material: Plastic according to UL94 V-0
-
Surface: umbra grey
-

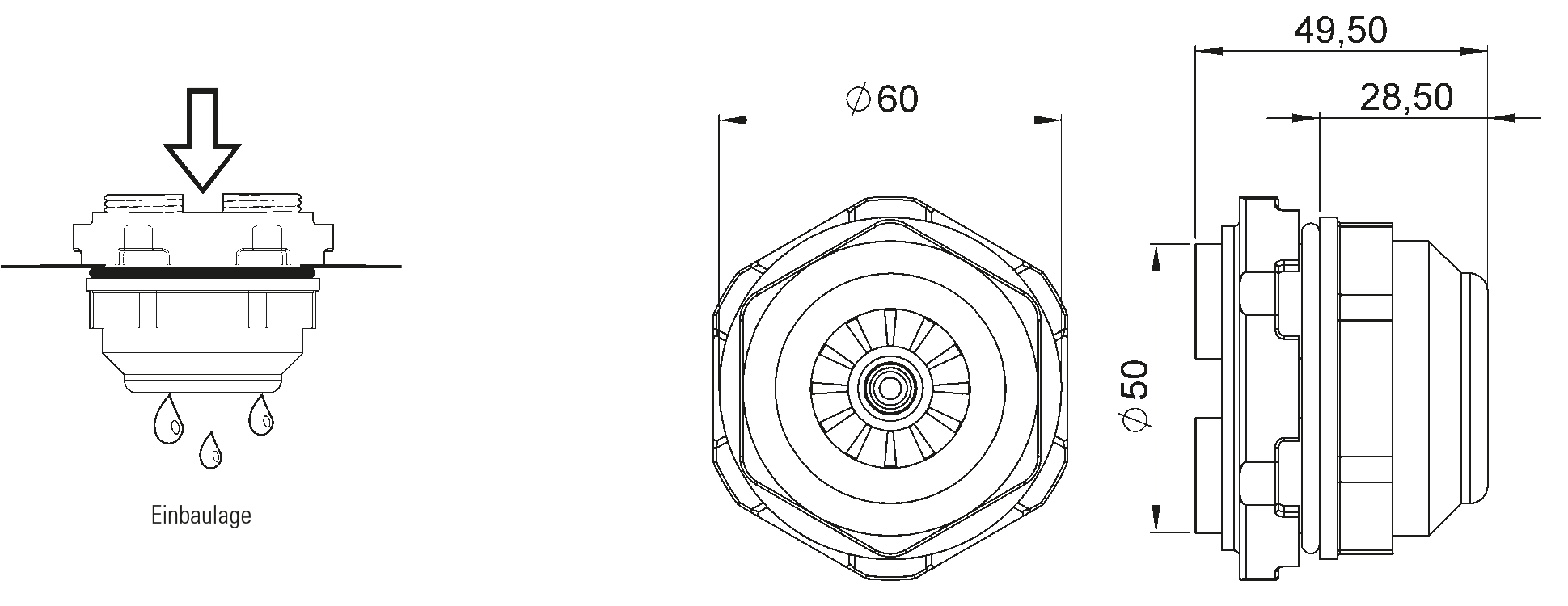

Fitting position: at the lowest point of the bottom
-
Operating temperature: from : -45 °C to : +70 °C
-
Tightening torque: max. 6 Nm
-
Water permeability: ca. 200 ml/h at 5 mm of water
-
Seal: gasket ring NBR
-
Connection thread: M 50 x 1,5
-
Drilling: 50,5 + 0,5 inch
Notice
- It has to be ensured that the gasket ring is mounted on the outer casing wall and that the bore is free from burrs.
