3080-7115-37-55

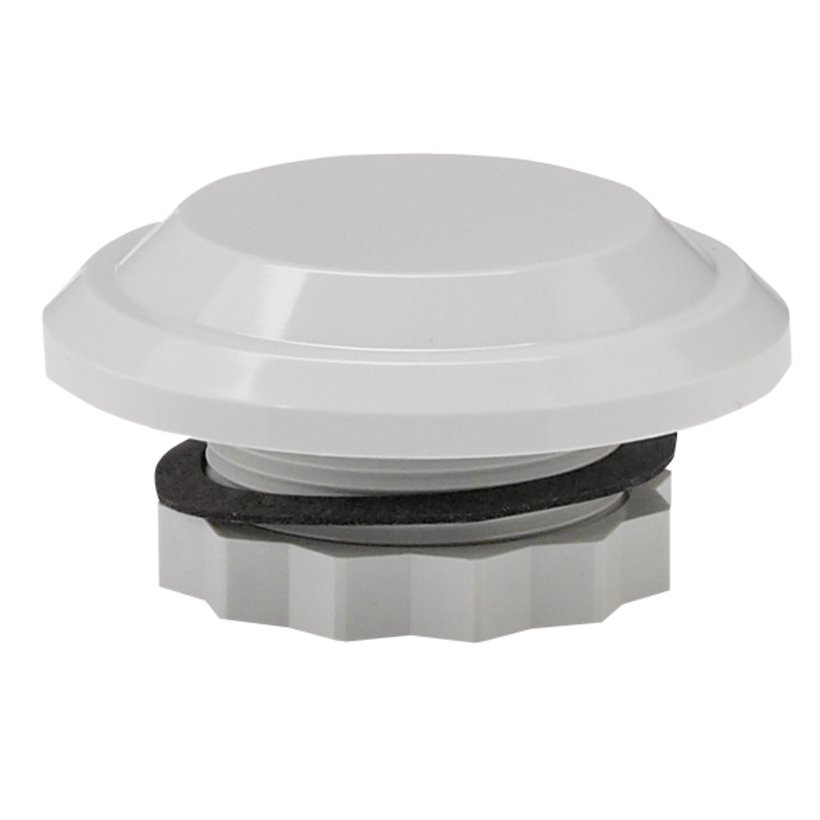

Pressure relief plug
Technical Data
-
Order No.: 3080-7115-37-55
-
UV resistance: good
-
Protection type: IP55
-
Material: Plastic according to UL94
-
Surface: light grey
-
Operating temperature: from : -45 °C to : +70 °C
-
Tightening torque: 5 Nm (max. 10 Nm)
-
Seal: gasket ring NBR
-
Connection thread: PG 29
-
Drilling: D=37 + 1 mm
Notice
- It has to be ensured that the gasket ring is mounted to the outer casing wall. For optimal pressure compensation, it is recommended that two pressure relief screws should be mounted in the upper part of the cabinet on opposite sides.
- Suitable for indoor use only (pressure relief plug available upon request).
- If this pressure relief plug is installed horizontal, the IP rating is reduced to IP 54.
