3080-7115-40U70

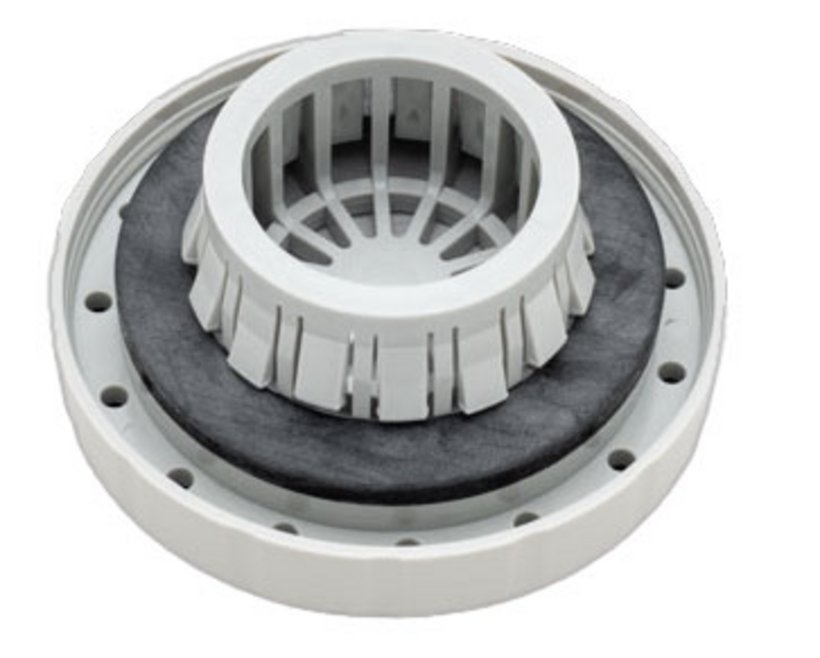

Snap-In Pressure Compensation Element
Technical Data
-
Order No.: 3080-7115-40U70
-
Type: Snap-in hooks
-
Size: Ø 40 mm/1,57"
-
Protection type: IP66, IPX9K
Type 4/4X -
Material: Body: Plastic to UL94 V0 UV resistant (UL746C (f1))
Sealing: EPDM -
Surface: light grey
-
Weight: 45 g
-
Sheet thickness: 1 - 4 mm/0,04 - 0,16"
-
Operating temperature: from : -35 °C to : +70 °C
-
Air permeability: 2000 ltr./h at ∆p 70mbar
Notice
- We recommend installing two snap-in pressure compensation elements opposite each other in the upper part of the enclosure to ensure optimum pressure compensation.
