Cable entry

Cable entry plate for serie33 sheet steel closed

Cable entry plate made from sheet steel.
Gasket enclosed.
Mounted using Gefu screws TX20.

				Remember
3080-7035-12-27	Sheet steel	155 mm	355 mm
3080-7055-12-27	Sheet steel	155 mm	555 mm

Cable entry plate for serie33 sheet steel with knockouts

Cable entry plate made from sheet steel with knockouts to support cable glands
gasket enclosed
mounted using Gefu screws TX20

				Remember
3080-7035-12-57	Sheet steel	155 mm	355 mm
3080-7055-12-57	Sheet steel	155 mm	555 mm

Cable entry plate for Series33 with rubber infill

Cable entry plate made from sheet steel with rubber infill
gasket enclosed
mounted using Gefu screws TX20

				Remember
3080-7035-12-07
3080-7055-12-07

Cable entry plate with rubber infill

To simultaneously insert varying numbers of cables and different cable diameters.
Cut the soft rubber at the required places and insert the cable or just push the cable through the rubber.

				Remember
3080-0102-28-07	without	Frame: Sheet steel Insert: Cellulose rubber CR/NBR	Frame: Powder coating RAL 7035 Insert: Black
3080-0102-34-37	without	Frame: Sheet steel Insert: Cellulose rubber CR/NBR	Frame: Powder coating RAL 7035 Insert: Black

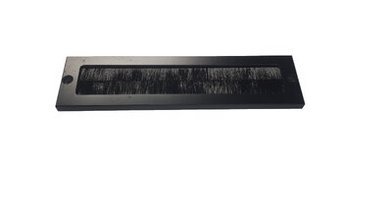

Cable entry with brushes

For subsequent mounting to housings, cabinets, covers or trims.
For inserting cables of different sizes with or without plugs.

Art No.	Material	Dimensions	Remember
0396-7310-84-00	Frame: Hard PVC, black Brushes: with nylon trim, black	317 x 83 x 12,5 mm

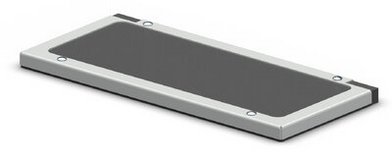

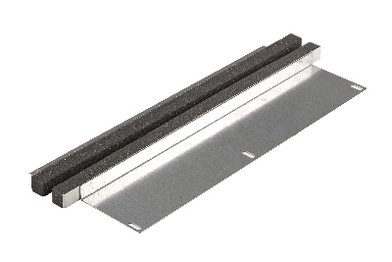

Cable plate for wall housing 3339 landscape format, two-piece with

Cable entry plate from sheet steel, two-piece movable with rubber clips
with seamless foamed seal
suitable for all wall housings series 33, landscape format

Art No.	Remember
0336-5000-12-03

Cable entry plate, plastic

With foamed gasket to provide tight sealing to the inside of the enclosure.


3080-0102-24-17	1	without	Cable entry plate: Plastic Sealing: PU-foam
3080-0102-25-17	1	metric	Cable entry plate: Plastic Sealing: PU-foam
3080-0102-25-27	1	PG	Cable entry plate: Plastic Sealing: PU-foam

Cable entry plate, sheet steel

With foamed gasket to provide tight sealing to the inside of the enclosure.


3080-0102-32-07	2	without	Cable entry plate: Sheet steel Sealing: PU-foam
3080-0102-32-27	2	metric	Cable entry plate: Sheet steel Sealing: PU-foam
3080-0102-32-17	2	PG	Cable entry plate: Sheet steel Sealing: PU-foam
3080-0102-26-07	1	without	Cable entry plate: Sheet steel Sealing: PU-foam

Cable entry plate for Series 33 high packing density

Cable entry plate for direct cable and hose insertion
Screwed cable glands are not required
Suitable for häwa enclosures series 33
Mounted cable entry plate in sandwich design
Support plates outside made of sheet steel with 2 intermediate elastomer plates
Attachment with Gefu-screws TX20

				Remember
3080-7102-80-20
3080-7102-80-30
