3080-9080-01-40

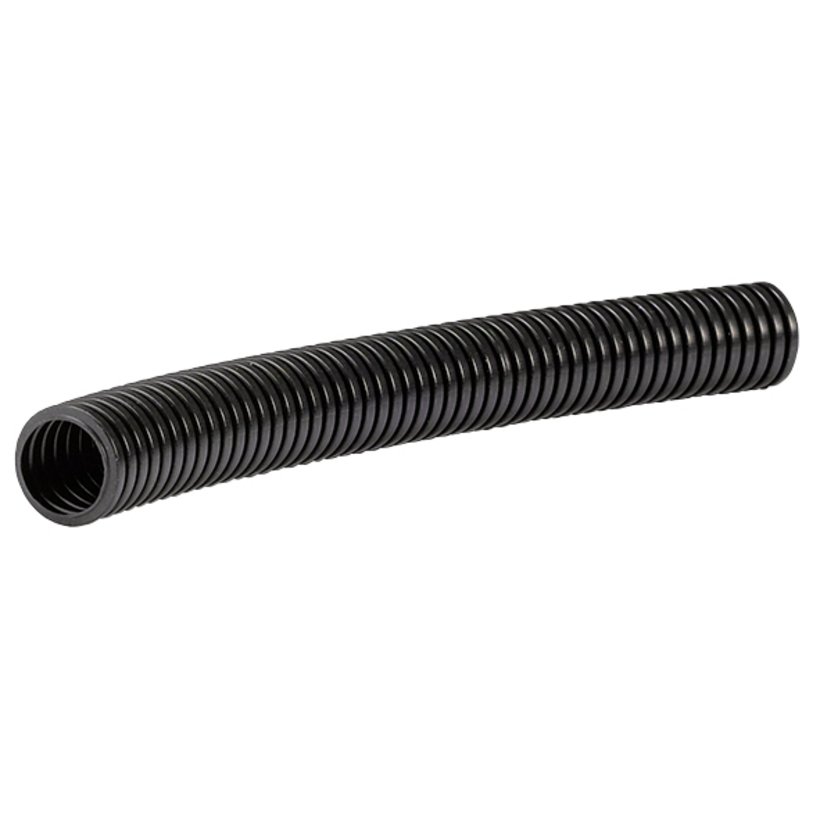

Cable protection conduit, closed
Product description
To protect cables and bundle individual wires.
Self-extinguishing cable protection conduit for high mechanical stress with good chemical resistance.
Application: Also suitable for use under permanent movement, in machine and plant construction and in the chemical industry.
The conduit is also suitable for use inside control cabinets.
Technical data
-
Article number: 3080-9080-01-40
-
Material: modified polyethylene
-
Surface: black
-
Authorization: CE
-
BRANDKLASSE: V2 self-extinguishing
-
Temperature resistance: from: -40 °C/-104 °F to: +130 °C/+266 °F
-
DRUCKBELASTUNG: >700 N/100 mm
-
Size: M 20/P 16
Notice
-
Different variants of cable protection conduits available upon request:
- same conduit with an allowable compressive stress of >1400 N/100 mm
- with UR-/CSA-/DB- or SNCF approval
- or suitable for use in Ex-zones under the ATEX directive
- By the metre, min. 5 metre

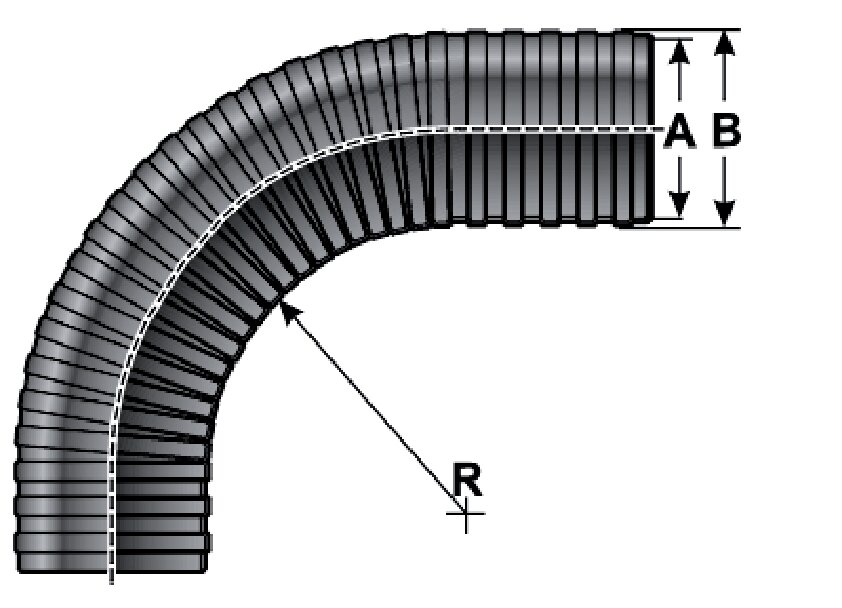

CAD data and other illustrations:
