3070-7393-01-15

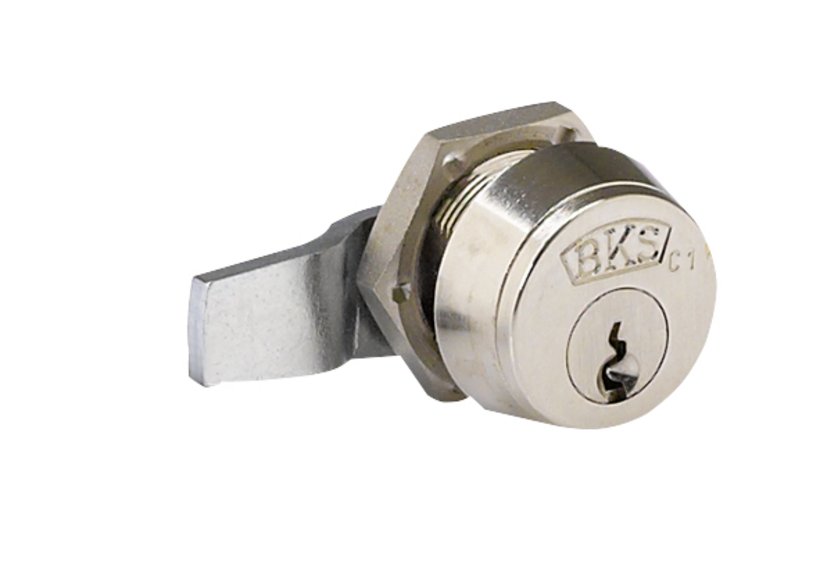

Cylinder lock, closure VW-E1
- VW-closure E1
Product description
Screwable
Key can only be extracted in closed state
Technical data
-
Article number: 3070-7393-01-15
-
Surface: nickel-plated
-
Closing direction: Anticlockwise closing
-
Closing tongue length: 33.5 mm
-
Closing distance: 90 °
-
Closing: E1
-
Protection class: IP40
-
MASS_B_DICT: 10,5 / 17,5 / 18,5 / 25,5 mm
Notice
- The key necessary for the installation has to be requested at VW-AG.
- Left to right from 12 to 9 or from 6 to 3 o'clock.

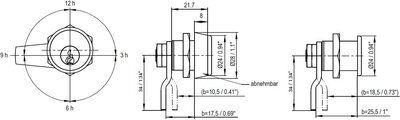

- Different closing heights (dimension b) can be achieved by combining the options with/without tapered ring and the installation type of the depressed center latch (see downloads)
- Use the toothed lock washer type 3055-6797-22-00 as anti-rotation disk for the "alternative installation openings" specified in the download.
- Other versions are available upon request (different VW locks and different “dimension b”)
- 1 cylinder lock with fixing nut and latch, but without key
