3080-0108-36-00

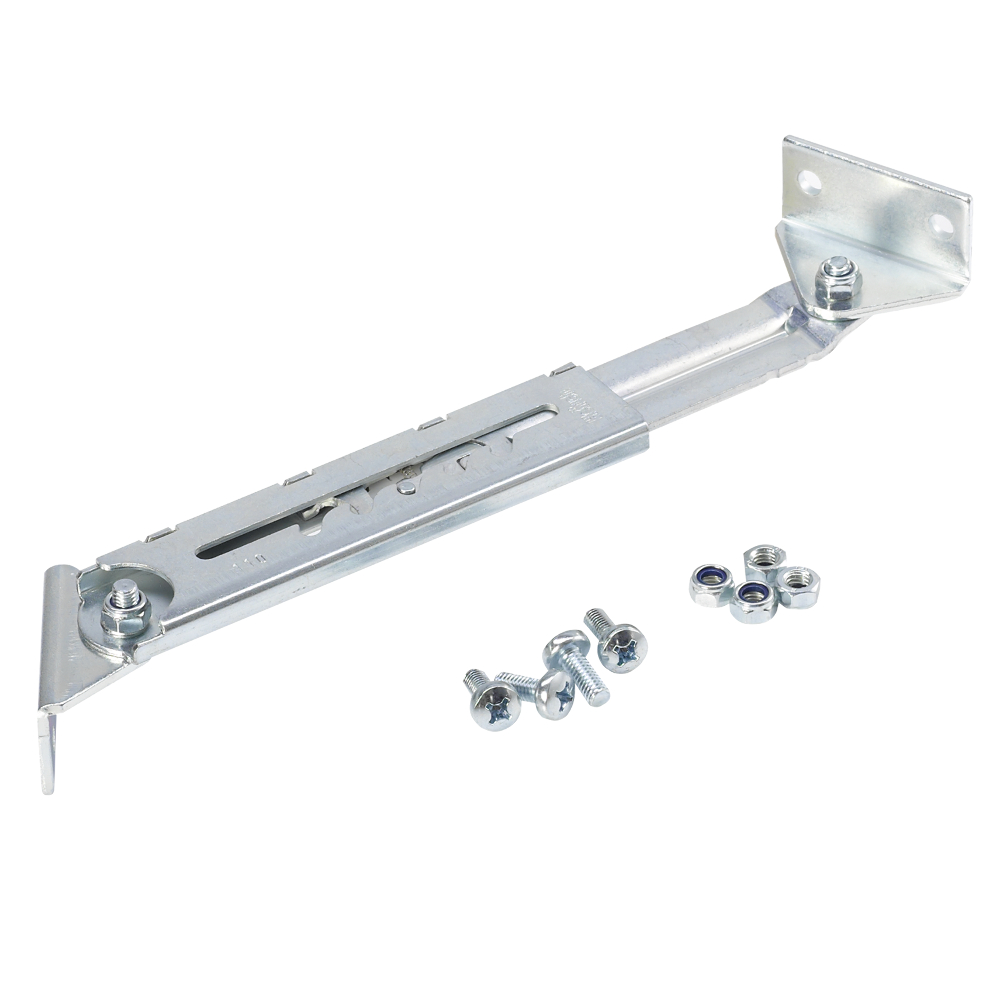

Telescopic lid support with multiple locking
- With automatic multiple locking
Product description
In order to open or keep flaps and console lids open
Unlocking in final position
Applicable on the right and on the left
Technical data
-
Article number: 3080-0108-36-00
-
Material: Sheet steel
-
Surface: Galvanized
-
LA: 374 mm
-
LE: 214 mm
-
Rasterization: 10
Notice
- Only in completely extended state the telescopic lid support can be retracted.
- 1 telescopic lid support with mounting angles

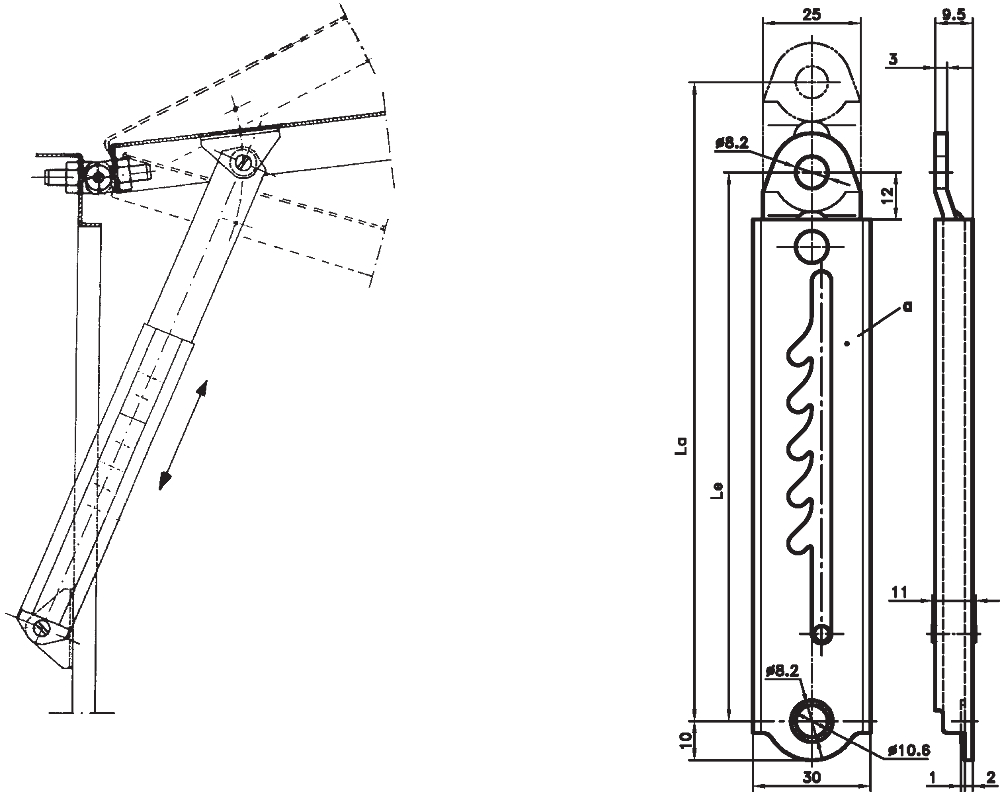

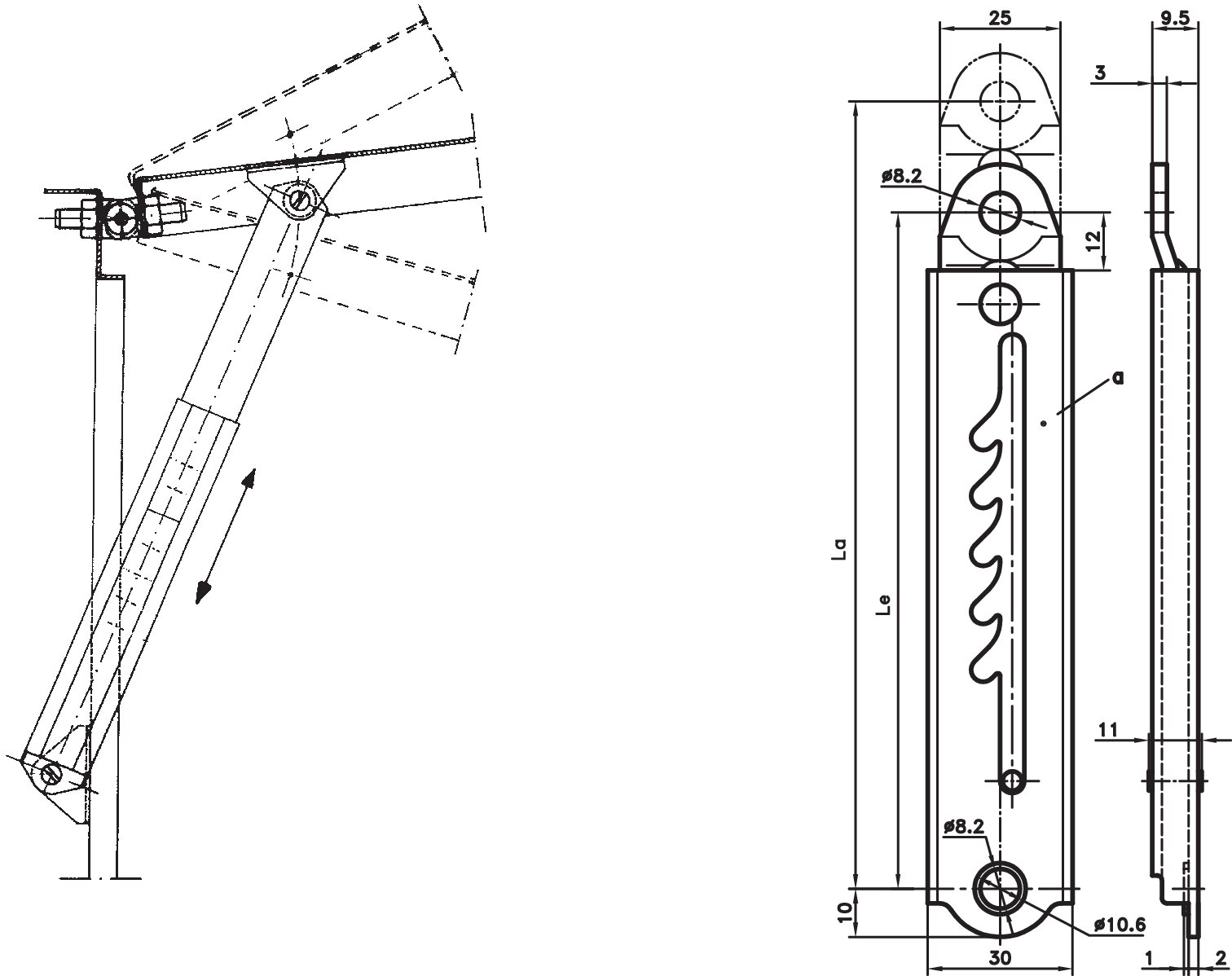

CAD data and other illustrations:
