3080-7041-23-00

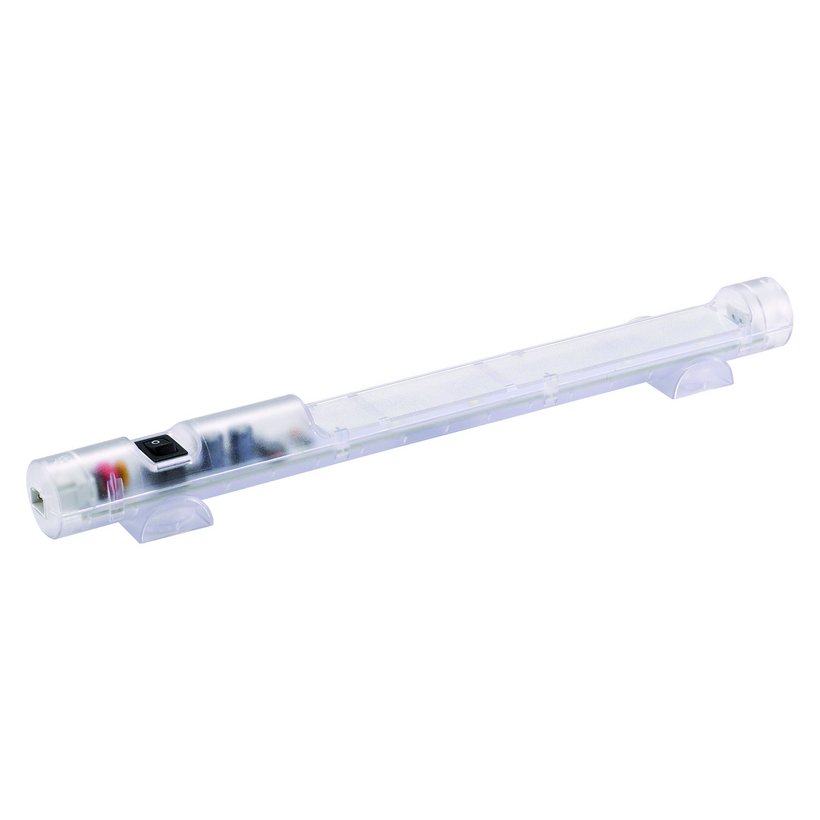

LED lamp with screw fixing, snap lock
- Integrated power unit
- Daisy chaining
- Long service life and maintenance-free by LED technology
- Energy-saving by LED technology
- Quick connection through snap lock
Product description
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life thanks to the use of LED technology. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs, the lamps can be connected quickly. It is possible to connect up to 10 lamps (DC 12V up to 5 lamps) to each other (cascading).
Technical data
-
Article number: 3080-7041-23-00
-
ABSTRAHLWINKEL: 120°
-
FARBTEMPERATUR: 6000-7000 K
-
Lifetime: 60,000 h at + 20°C (+68°F)
-
LEISTUNGSAUFNAHME: max. 5 W
-
Light source: LED
-
Light color: daylight white color
-
Light intensity: 400 Lm at 120°
-
MONTAGE: screw fixing M5, torque 2 Nm max.
-
Operating voltage: AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
-
Enclosure: plastic, transparent
-
Electrical connection: 2-pole connector with snap lock AC: max. 2.5 A, AC 240V, color = white
-
Version: on/off switch
-
Application/storage humidity: max. 90% relative humidity (non-condensing)
-
Storage temperature: from : -40 °C to : +85 °C
-
from: 30 °C
-
to: 60 °C
-
Protection class: IP20/ II (double insulated)
-
Weight: 0.2 kg
-
Authorization: CE, cURus
-
Type of clamping: AC
- 1 piece
3080-7041-23-29
Male connector
Model
male connector loosely enclosed
Color
white
Use for
power output
3080-7041-23-24
Connection cable with female connector and open end
Model
connection cable 2 x 1.5 mm² with female connector
Use for
Input side
3080-7041-23-25
Connection cable with female connector and open end
Model
connection cable AWG 15 with female connector
Use for
Input side
3080-7041-23-26
Connection cable with female and male connectors for daisy chain connection
Model
Extension cable 2 x 1,5 mm2 with female and male connectors
Color
Socket/connector white, lead white
3080-7041-23-27
Connection cable with female and male connectors for daisy chain connection
Model
Extension cable 2 x AWG 15 with female and male connectors
Color
Socket/connector white, lead white
CAD data and other illustrations:
