3080-7042-25-27

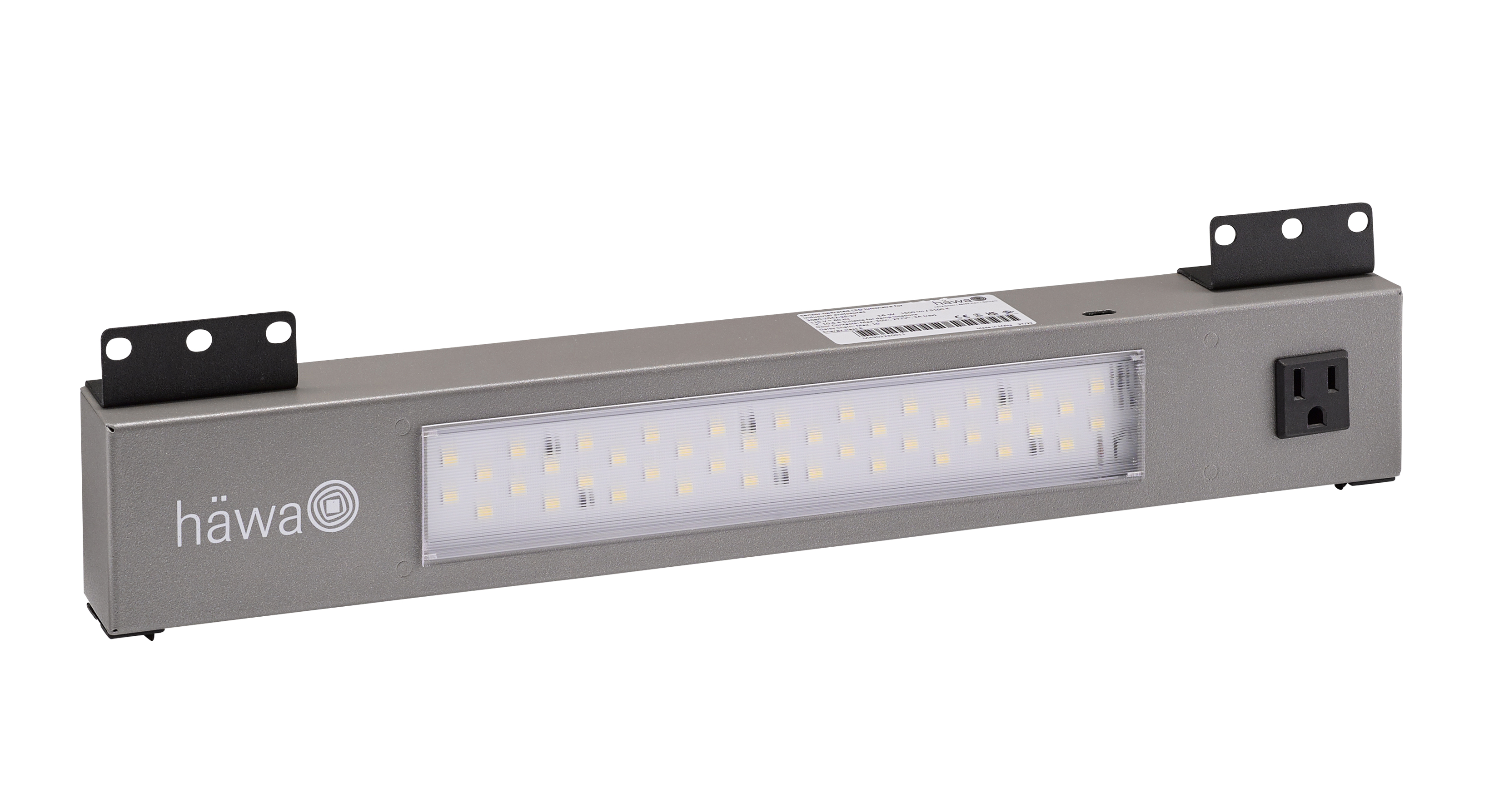

Sensor Operated LED Lamp, SOL 704
- Sensor-controlled ON/Off function
- Potential-free contacts normally closed/ normally open for further applications
- Long service life and maintenance-free
- Cascadable
- Energy saving by LED technology
Product description
The SOL 704 Sensor Operated LED lamp ensures an optimum illumination of control cabinets. The pre-set proximity sensor is ready for operation after mounting the lamp and switches the lamp immediately ON or with a delay of 5 s OFF when opening or closing the door.
An integrated N.C (normally closed) / N.O. (normally open) relay operates as a door switch for switching devices or components, such as cooling units, filter fans and signal towers, etc., including suitable plugs for connecting the required cables.
It is possible to cascade up to 10 lamps (serial mounting).
The lamp is available with two different voltages either 24 V DC or 120 V - 230 V AC; the AC versions are optionally available with socket.
These lamps have a very long service life thanks to the use of LED technology.
They are either screw-mounted or fixed with magnets (static load only).
Technical data
-
Article number: 3080-7042-25-27
-
Protection class: I
-
Length: 440 mm
-
ABSTRAHLWINKEL: 120°
-
KASKADIERUNG: max. 10 lamps
-
Lifetime: 60.000 hrs at 20 °C
-
LEISTUNGSAUFNAHME: 16 W
-
Light source: LED
-
Light color: 5100 K
-
LICHTSTROM: 1500 lm
-
MONTAGE: Screw mounted version
-
Operating voltage: 120 V~ (50 Hz/60 Hz) +/- 10%
-
Material: Housing bottom cover – top cover made of sheet steel
LED cover/panel UL94 V0 made of transparent polycarbonate >PC< -
Surface: Housing bottom cover powder coated RAL 9007 grey aluminum fine structure matt
Housing top cover RAL 9011 graphite black fine structure matt -
Version: Proximity switch
-
Operating temperature: -30 - +50 °C / -22 - +122 °F (max. 90%r.H.)
-
Protection class: IP20
-
Width: 90 mm
-
Depth: 45 mm
-
Weight: 1480 g
-
ABSICHERUNG_EXTERN_NICHT_INTEGRIERT: 16 A(T) or C16 MCB
-
Authorization: UKCA, cULus, cURus, CE, VDE EMC
-
POTENZIALFREIER_KONTAKT_DICT: Output max. switching voltage: 277 V AC, 30 V DC
Output switching current (ohmic): Max. 3 A
Notice
- Suitable for häwa free-standing cabinets and cabinets from other manufacturers perforated every 25 mm / 0.98” from a width of 600 mm / 23.62”.
- Versions with magnet fixing are suitable for häwa wall-mounted enclosures series 33.
- We recommend to mount the lamp after installation of the mounting plate.
- For approval reasons, please use only the specified accessories.
- 1 lamp incl. mounting hardware or integrated magnets as well as plug for door switch function, quick start guide
