2070-0018-25-51

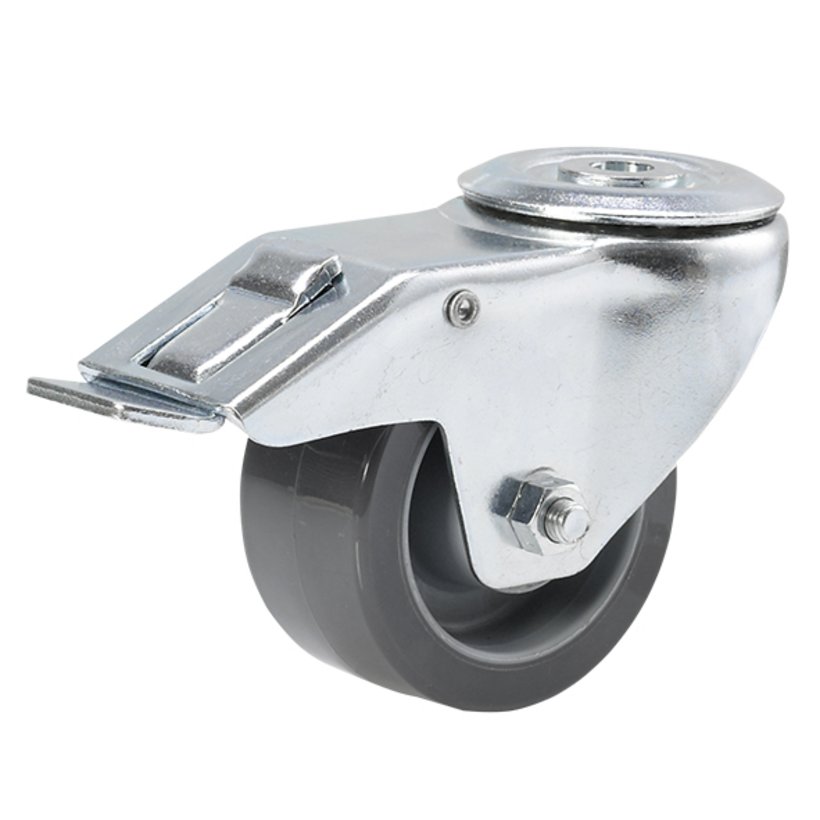

Single swivel caster, load capacity 150 kg
Product description
Very compact design with and without wheel lock.
Tread made of polyurethane.
Coming in two different versions: The standard version is completely sufficient if only few parts are to be moved and for short distances.
The premium version distinguishes itself through the perfect-fit bearing. However, this has no effect on the load capacity, it “just” provides better handling.
In addition, the premium version is equipped with a rim protection.
Max. load capacity: 150 kg/caster – 450 kg/set of casters (consisting of four casters)
Technical data
-
Article number: 2070-0018-25-51
-
Version: Standard
-
Variant: with wheel lock
-
Wheel axle: wheel axle
-
Roller bearing: Pressed-in wheel body made of polyamide.
-

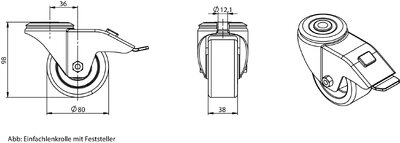

Dimension height (h): 99 mm
-
Wheel width: 38 mm
-
Back hole diameter: 13 mm
Notice
- To be fastened with M12
- or M10 screw (only standard version). As for the premium version, M12 screws must be used.
- Put together your individual set of casters. A suitable “set of fasteners for casters” contains screws and washers for 4 casters. When using M10 bolts, you will need the set of fasteners “C”. Our casters come in different versions, for example with electrically conductive wheels, as fixed caster, with other wheel diameters etc., available upon request.
- 1 unit
