2070-3301-20-00

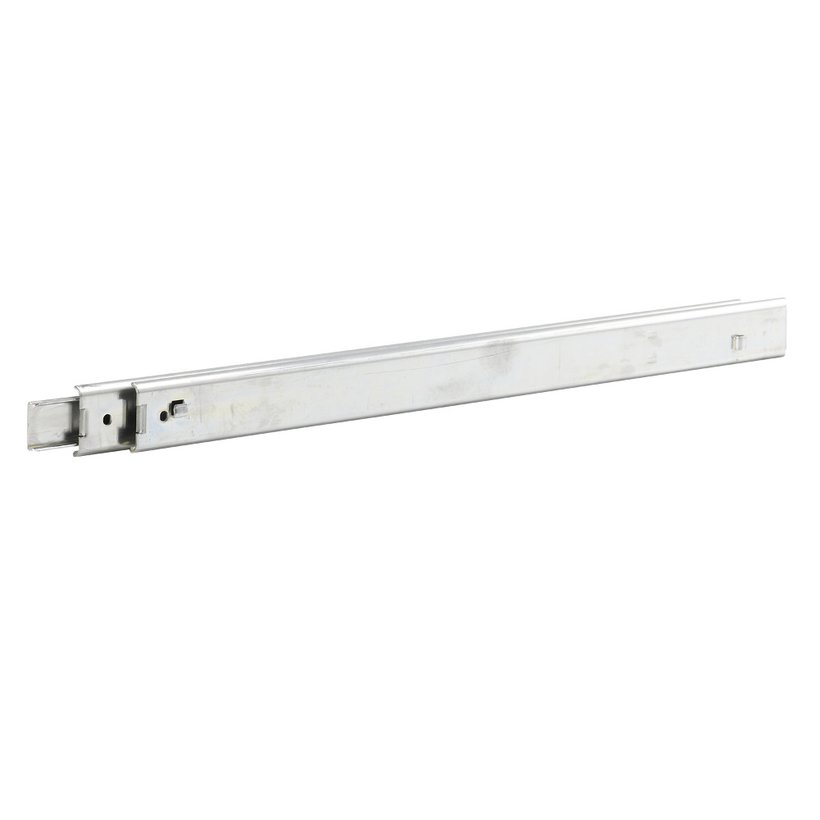

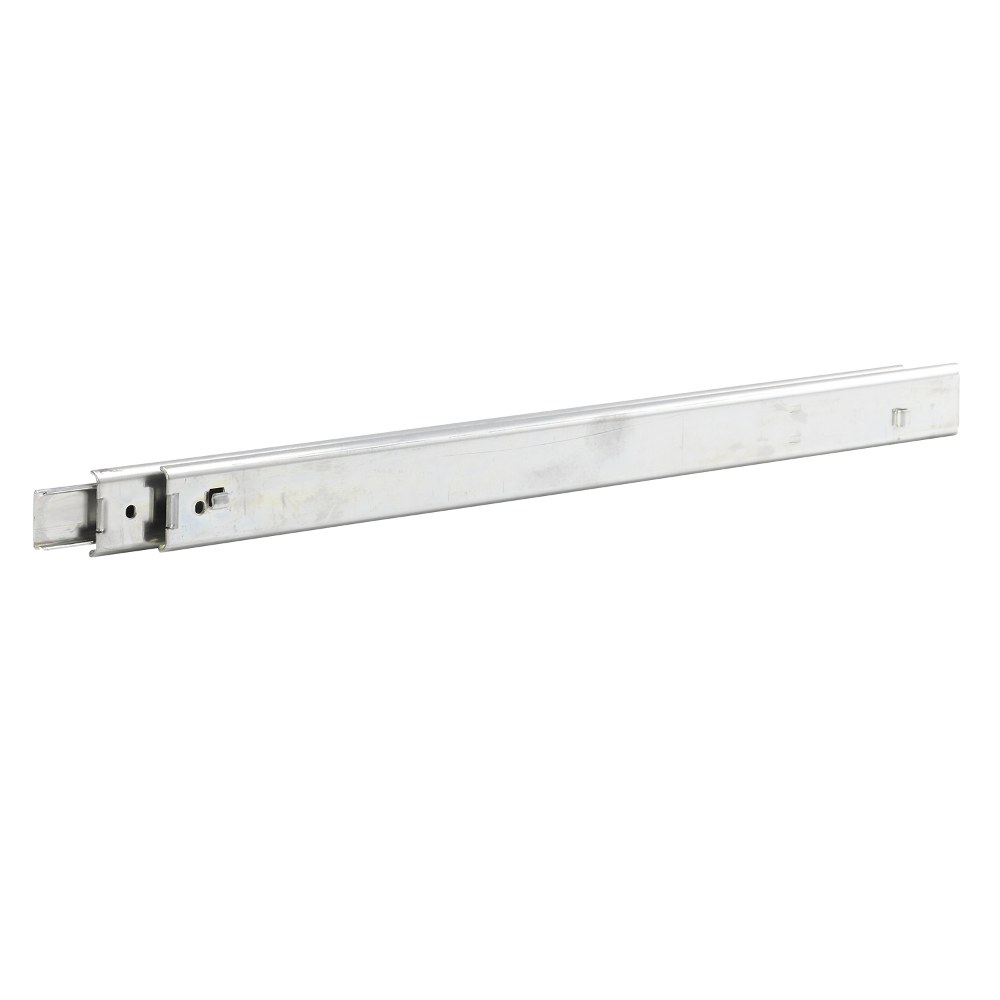

Telescopic slides, over-extension, rear-mounted locking device
- The telescopic slide has a resistance against opening.
Product description
Sturdy galvanized steel design with high precision high-performance bearings.
The extremely flat design of the telescopic slide ensures that you get the best out of the available space (width).
Technical data
-
Article number: 2070-3301-20-00
-
Material: Sheet steel
-
Surface: Galvanized
-
Load capacity/pair: 66 kg
-
Weight: 2.14 kg
-

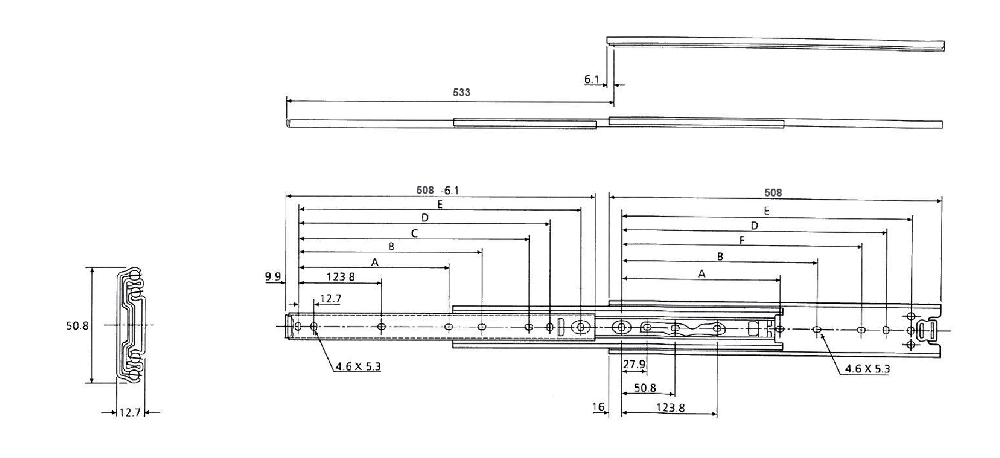

Dimension b: 365.2 mm
-
Extension length Z: 533 mm
-
Dimension A: 238.2 mm
-
Dimension C: 425.4 mm
-
Dimension D: 438.1 mm
-
Dimension E: 463.5 mm
-
Dimension F: 412.7 mm
-
Rail length L: 508 mm
Notice
- To be able to use the maximum load-bearing capacity as specified, all designated fastening positions must be used. Horizontal mounting is not recommended!
- 1 pair of telescopic slides with fasteners consisting of 16x each: slotted bolt M4x12, spring washer, washer and nut.
CAD data and other illustrations:
