2070-7581-45-00

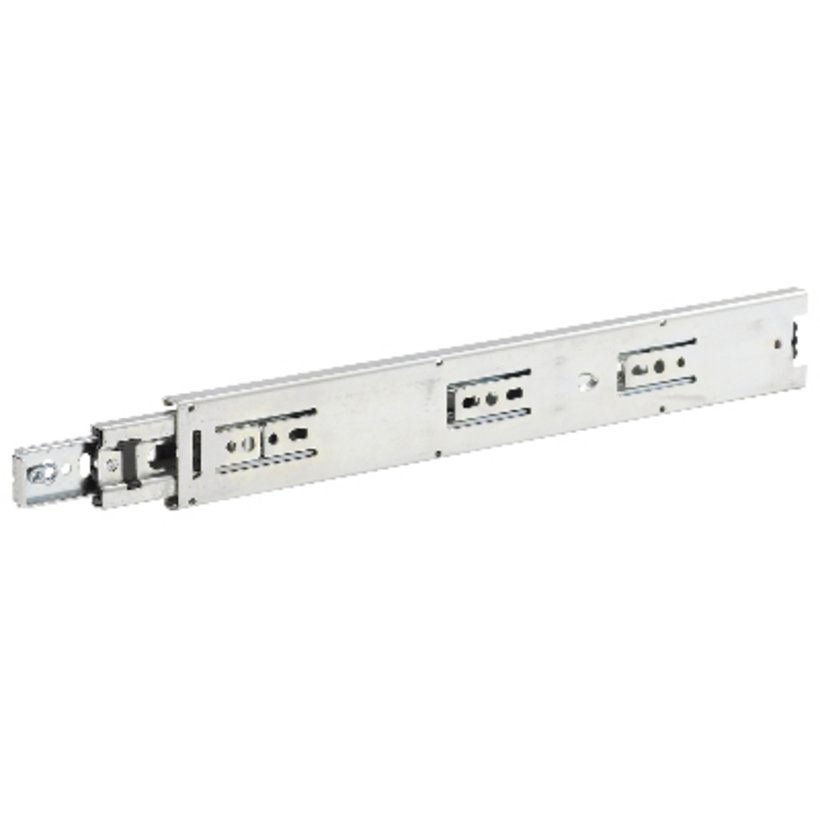

Telescopic slide, full extension, locking device, rapid disengagement
- All telescopic slides have a resistance against opening.
- The slide 2070-3832-35-00 has an additional resistance against closing.
Product description
Robust galvanized steel construction with high precision high-performance bearings.
The extremely flat design of the telescopic slide ensures that you get the best out of the available space (width).
As the slide is symmetric, it can be mounted on either the right or the left side.
Technical data
-
Article number: 2070-7581-45-00
-
Material: Sheet steel
-
Surface: Galvanized
-
Load capacity/pair: 50 kg
-
Weight: 1.36 kg
-
Extension length Z: 457 mm
-
Dimension C: 320 mm
-
Dimension E: 392 mm
-
Dimension F: 224 mm
-
MASS_G: 352 mm
-
Rail length L: 450 mm
Notice
- To be able to use the maximum load-bearing capacity as specified, all designated fastening positions must be used. Horizontal mounting is not recommended!
- 1 pair of telescopic slides without fastening elements. Recommended fasteners: Screw M4 / wood screw 4 mm / euro-screw 6 mm – max. height of screw head 2.5 mm / ø 9.6 mm.
