2070-7581-45-71

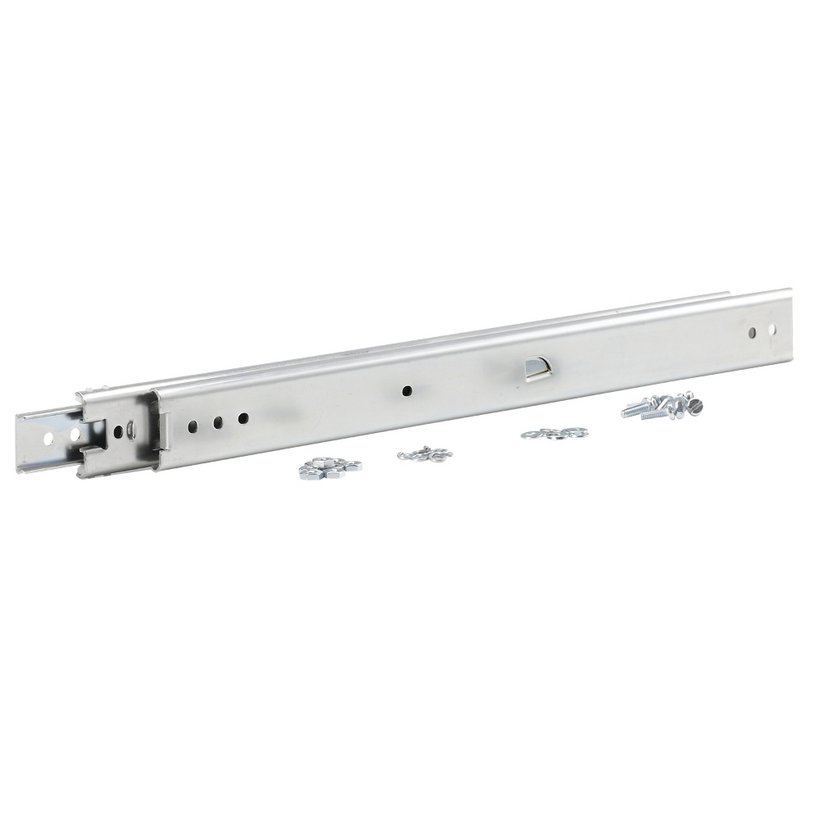

Telescopic slide, over-extension, rapid disengagement
- Locked when fully extended. Unlocking by pushing a release lever located on the telescopic slide.
Product description
Sturdy galvanized steel design with high precision high-performance bearings.
Due to its slim design, the telescopic slide requires only little mounting space.
As the slide is symmetric, it can be mounted on either the right or the left side.
Technical data
-
Article number: 2070-7581-45-71
-
Material: Sheet steel
-
Surface: Galvanized
-
Load capacity/pair: 70 kg
-
Weight: 1.88 kg
-
Extension length Z: 479.5 mm
-
Dimension A: 212.7 mm
-
Dimension C: 400 mm
-
Dimension D: 412.7 mm
-
Dimension E: 425.4 mm
-
Dimension F: 301.6 mm
-
Rail length L: 457 mm
Notice
- To be able to use the maximum load-bearing capacity as specified, all designated fastening positions must be used. Horizontal mounting is not recommended!
- 1 pair of telescopic slides with fasteners consisting of 16x each: slotted bolt M4x12, spring washer, washer and nut.
CAD data and other illustrations:
