2070-7581-45-76

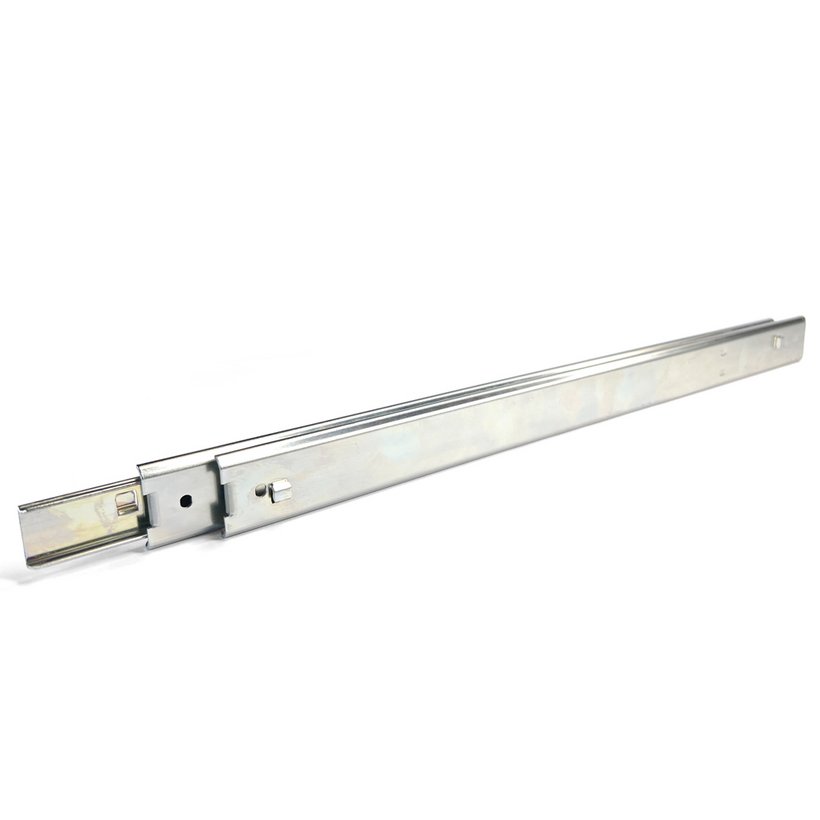

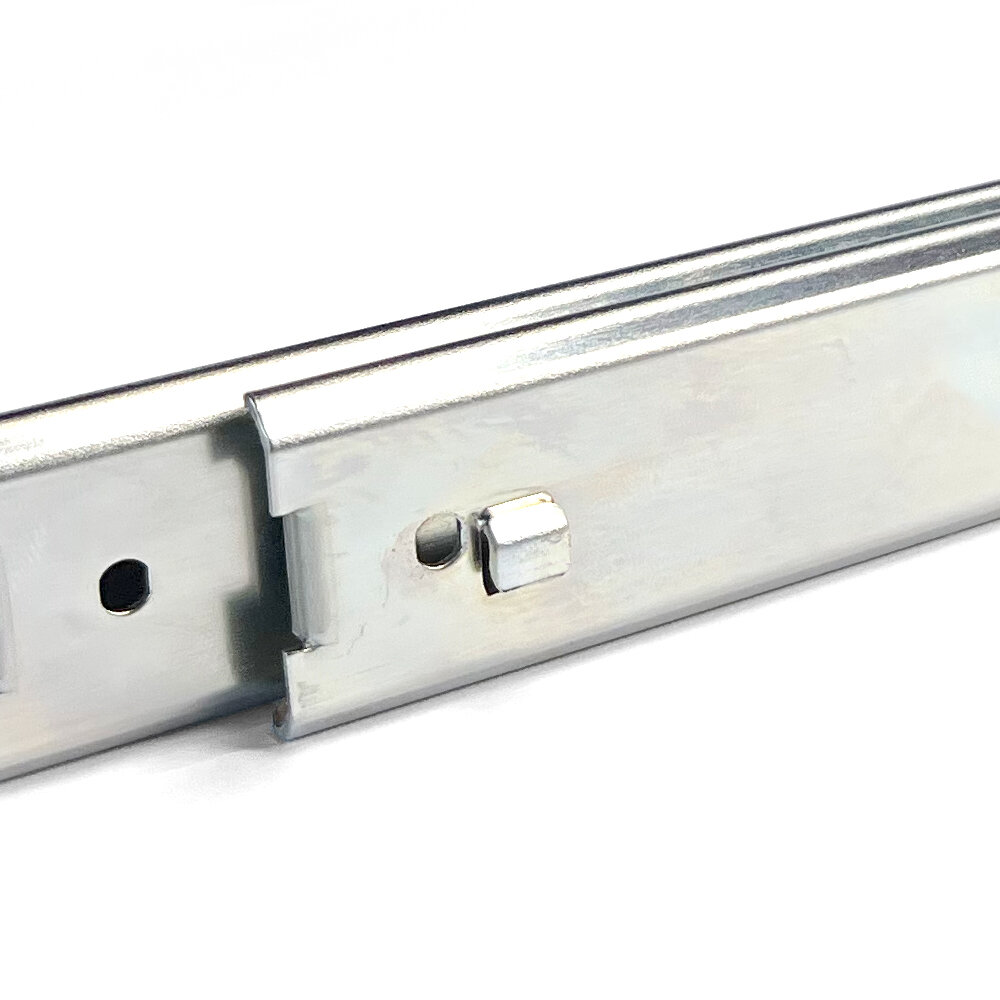

Telescopic slides, bayonet mounting, over-extension
- Installation without screws
Product description
Sturdy galvanized steel design with high precision high-performance bearings.
Due to its slim profile, the telescopic slide requires only little mounting space.

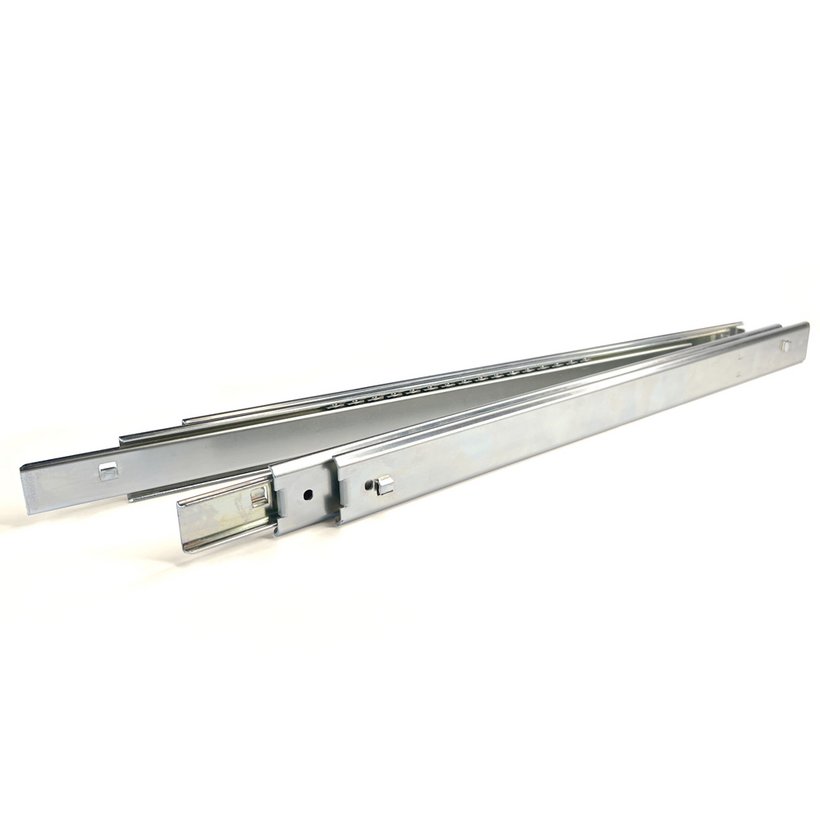

A pair of slides consists of a right and a left-side slide.
Technical data
-
Article number: 2070-7581-45-76
-
Material: Sheet steel
-
Surface: Galvanized
-
Load capacity/pair: 40 kg
-
Weight: 1.72 kg
-
Dimension b: 365.2 mm
-
Extension length Z: 480 mm
-
Dimension A: 238.2 mm
-
Dimension C: 425.4 mm
-
Dimension D: 438.1 mm
-
Dimension E: 463.5 mm
-
Dimension F: 412.7 mm
-
Rail length L: 457 mm
Notice
- Very fast mounting by simply placing it into the existing snap-in device. The notches must have a minimum size of 9x9 mm and the correct distance.
- 1 pair of telescopic slides. No separate fasteners required.

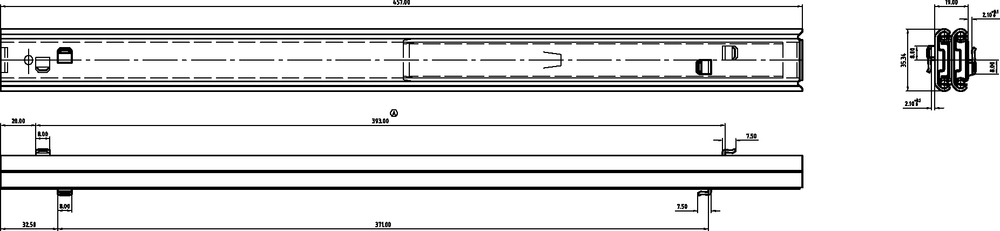

CAD data and other illustrations:
