0394-7120-11-07
Cover set for mounting in distribution cabinets
Product description
The cover set inside the cabinet (containing one left, right, top and bottom cover) protects against accidental contact of live components. Suitable for covering at a pitch dimension of 9.84".
Top and bottom cover can be inclined thereby, the cover set can be used for all systems.
Technical data
-
Article number: 0394-7120-11-07
-
Dimensions: suitable for width : 1100 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel 1,5 mm / 16 ga
-
Weight: 1.4 kg
-
L.W: 1020 mm
- 1 cover set consisting of 2 lateral covers, 1 top cover, 1 bottom cover and mounting hardware

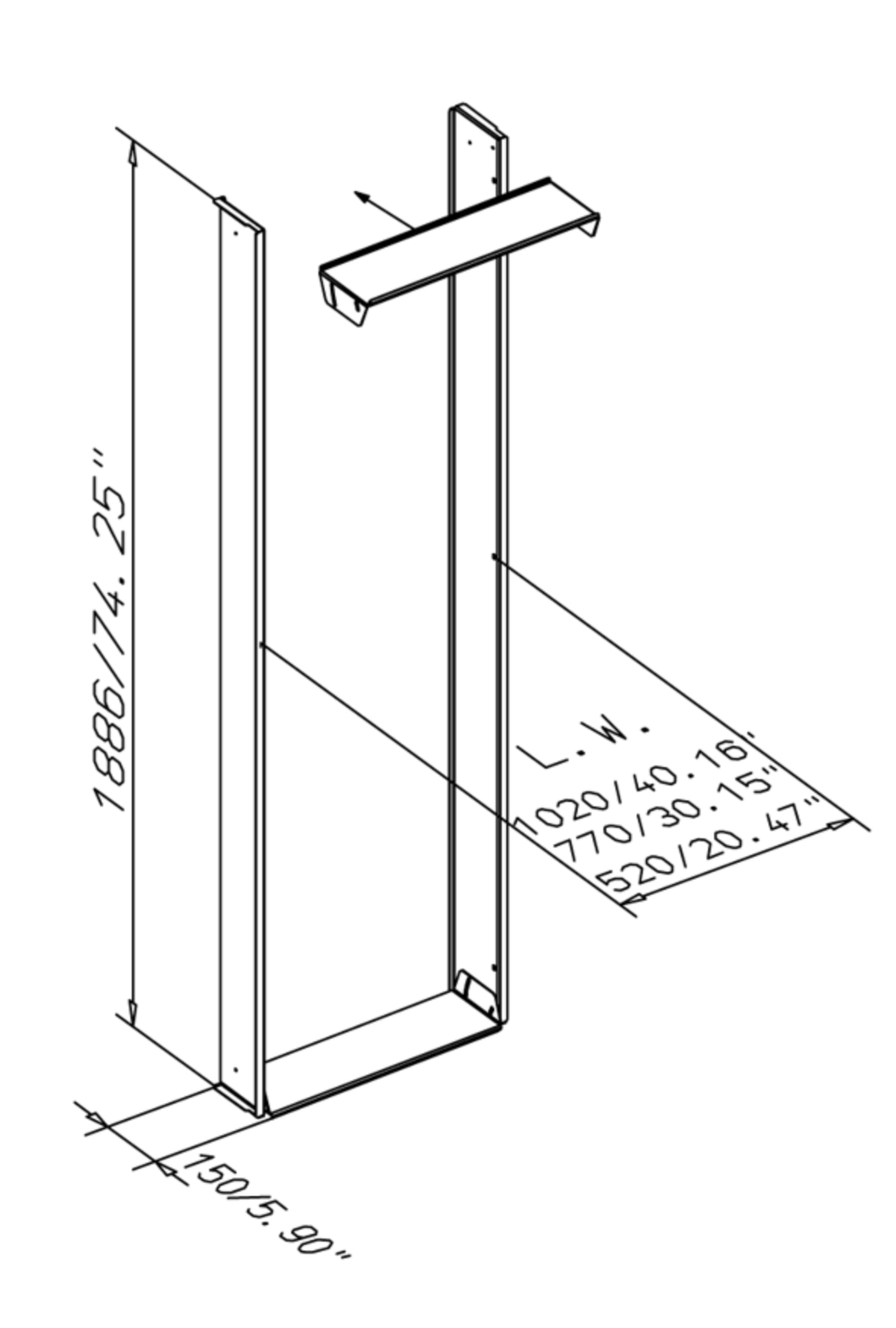

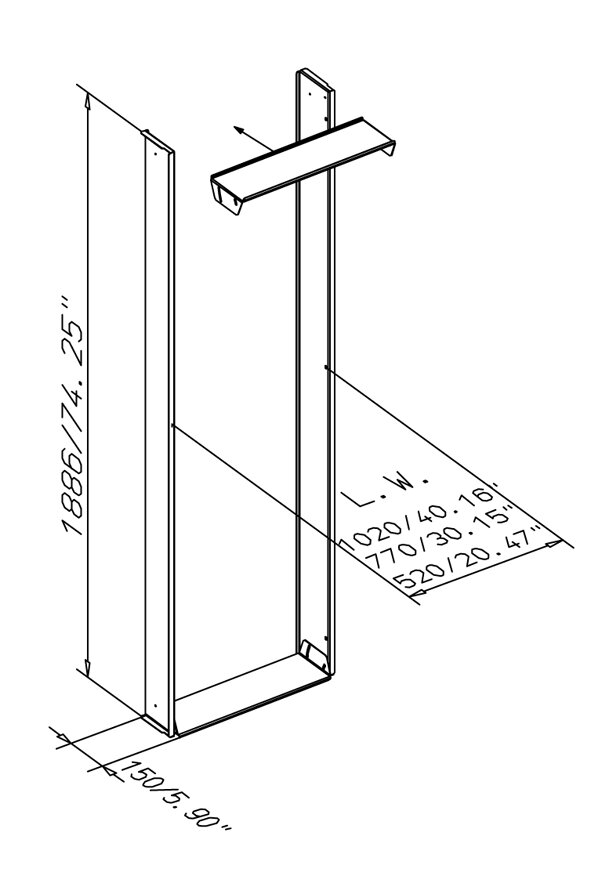

CAD data and other illustrations:
