0395-8018-00-87

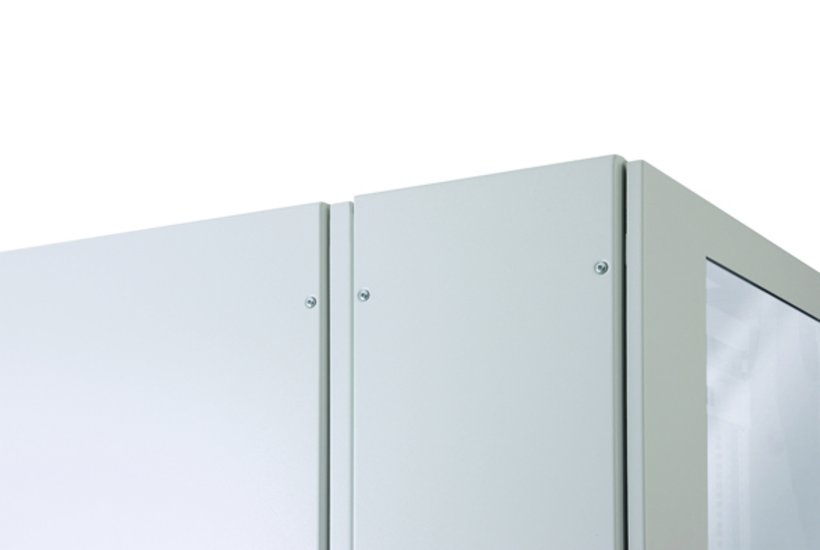

Depth Extension Frames
- Depth extension for bayed cabinets H395
- IP55 protection class is maintained
Product description
Connection via self-locking nuts.
All combinations in related width and height are possible.
With seamlessly foamed gasket.
Technical data
-
Article number: 0395-8018-00-87
-
Dimensions: suitable for width : 800 mm suitable for height : 1800 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Sheet thickness: 2 mm
Notice
- Other modifications and price available on request.
- Please read the assembly instructions before transporting assembled H395 modular cabinets!
- 1 piece depth extension frame with mounting hardware and installation manual part no. 0396-7000-08-77.
0395-8018-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-50-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8018-50-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8018-60-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8018-60-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
