0376-7010-40-61

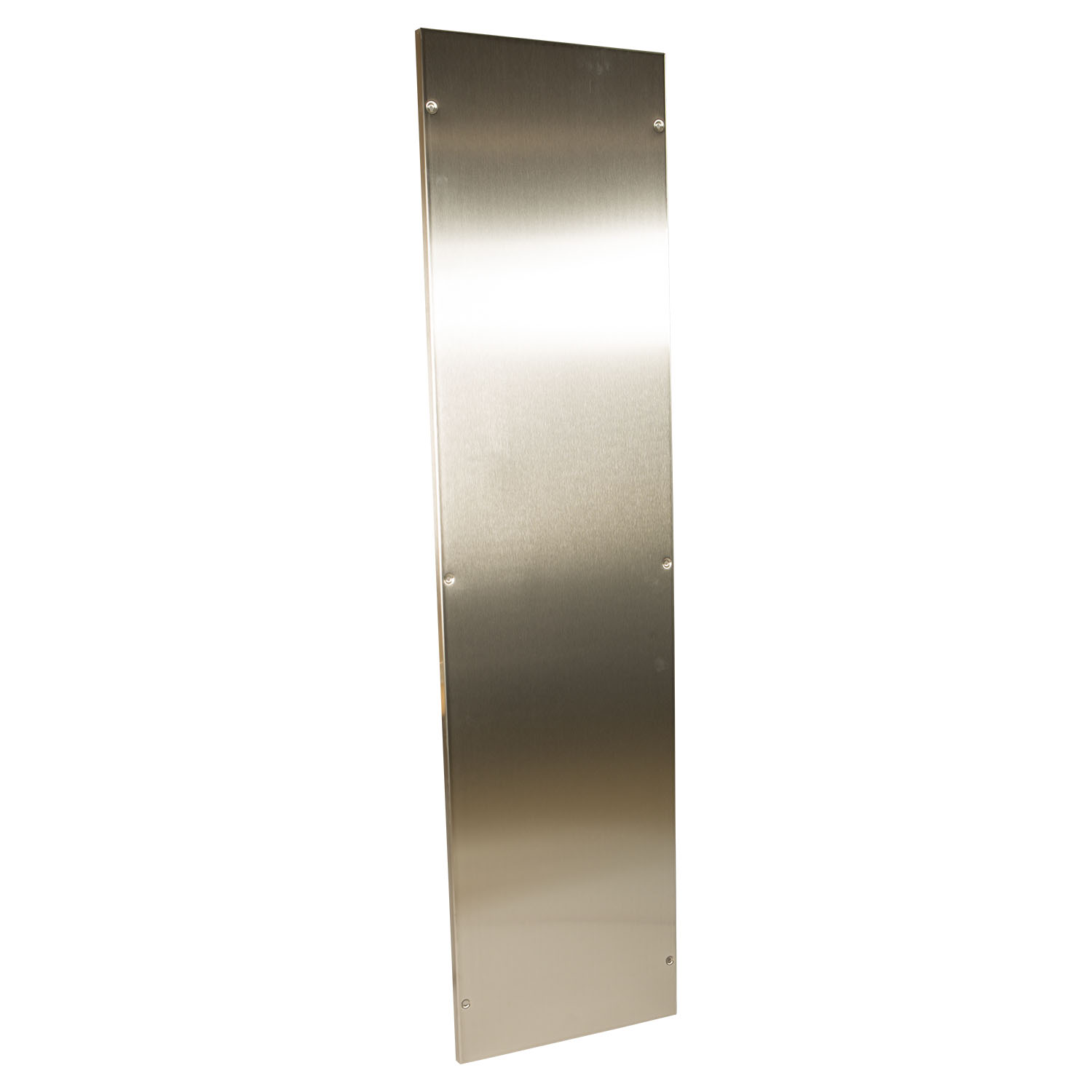

Side panel H375
- For installation of outward side panels of modular cabinets H375
Product description
Protective ground connection according to DIN EN 61439-1
Technical data
-
Article number: 0376-7010-40-61
-
Dimensions: suitable for height : 1000 mm suitable for depth : 400 mm
-
Variant: X x 39.37" x 15.75"
-
Surface: Externally brushed
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: 1.5 mm
-
HS: 996 mm
-
TS: 350 mm
- 1 set of side panels with foamed rubber gasket and mounting hardware.
0375-1010-40-00
Modular cabinets Stainless steel H375, single door
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1010-40-10
Modular cabinets Stainless steel H375, single door
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1210-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1210-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6010-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6010-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-8010-40-00
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-8010-40-10
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
