0371-5521-55-10

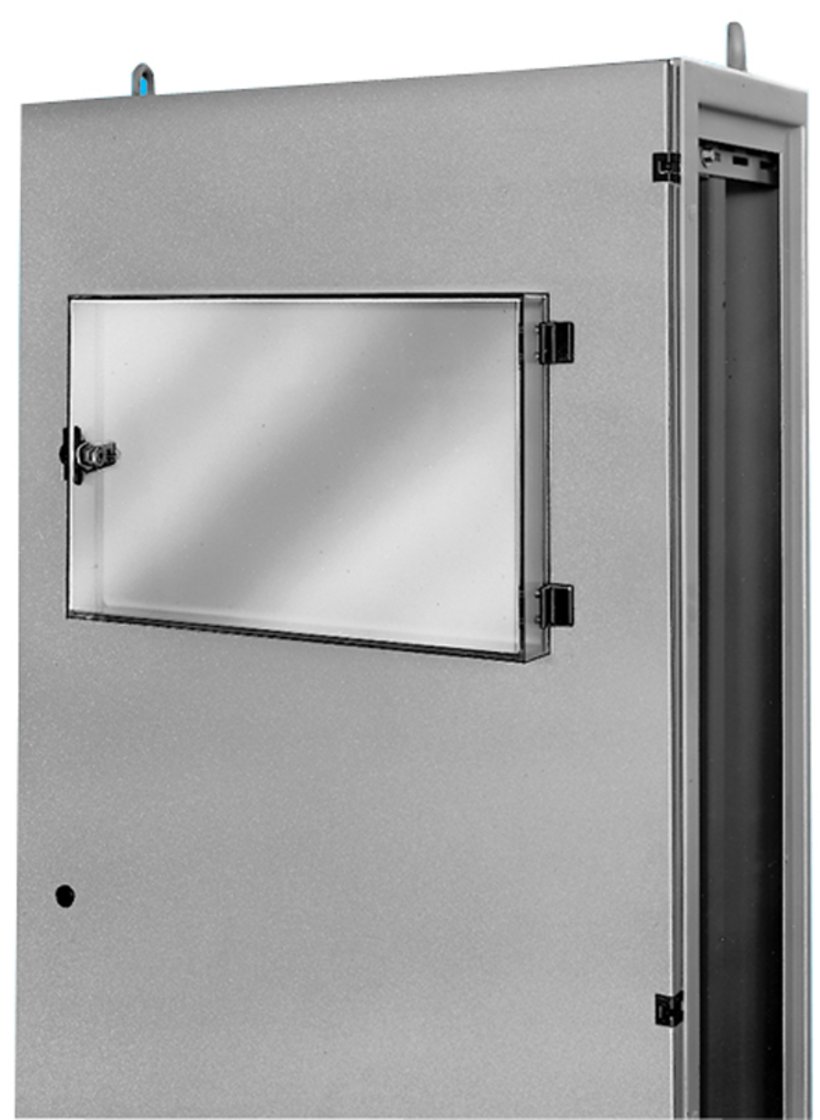

Viewing cover
Product description
For installation on housings and cabinets. Protects indicators and instruments against unauthorized or unintentional access.
Lock: Lateral twist grip with locking barrel left side locking black plastic
Technical data
-
Article number: 0371-5521-55-10
-
Dimensions: Width : 548 mm Height : 213 mm Depth : 55 mm
-
Variant: Hinge version 1
-
Material: Tinted plexiglass (umbra 802), handle made of black plastic
-
Protection class: corresponds to IP54
Notice
- Other dimensions on request. For design with lock on right side, toggle quarter turn latch lock 3070-7347-92-00 has to be ordered separately.
- Viewing cover with hinge option 1: viewing cover shorter than door.
- Viewing cover with hinge option 2: viewing cover hinges flush with the cabinet resp. cabinet door.
- Viewing cover with lock, hinges and mounting hardware
