0395-1020-09-08

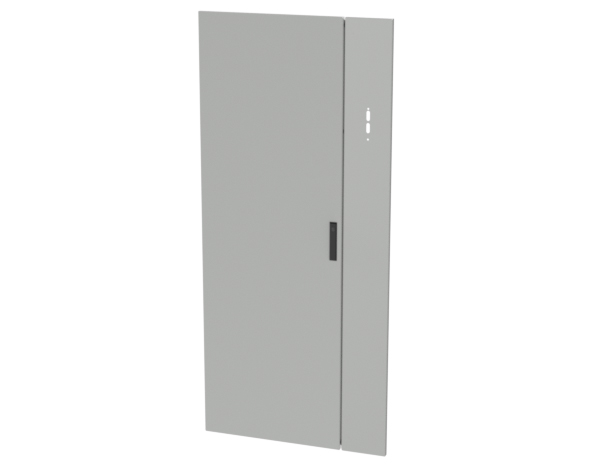

Partial center doors
- Conversion of free-standing and modular cabinet to main cabinet
Product description
Door and separately lockable cover with knockout for main switch
Protective ground connection according to DIN EN 61439-1, bolts M8x20
With seamlessly foamed seal
Opening angle 120°
Screwed in position reinforcing frame made from sturdy square pipe with fixing holes of 4.5 mm in 25 mm increments
Technical data
-
Article number: 0395-1020-09-08
-
Dimensions: suitable for width : 1000 mm suitable for height : 2000 mm
-
Variant: with cover right
-
Protective conductor connection: according to DIN EN 61439-1
-
Protection class: IP55
Type 1, 12 -
Material: Sheet steel
-
Sheet thickness: 2 mm
Notice
- Other modifications are non stock items, price upon request.
- 1 pc. door, 1 pc. cover, with 120° hinges, Fixing parts and mounting instructions (3070-0802-M0-15-01 for right-hand cover
- or 3070-0802-M0-16-01 for left-hand cover), 1 key
Mounting instructions:
