19" components

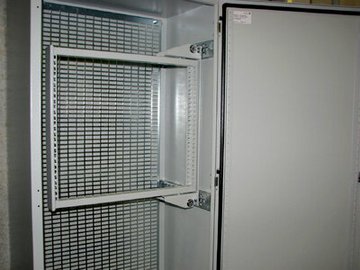

19"-Swing frame 0361

No cross bar required, as pivot point and lock are on the same side.
Connection of protective earth conductor according to DIN EN 61439-1, connection on frame.
To house slide-in modules, sub-racks etc.
Can be mounted in häwa free-standing and modular cabinets and in wall-mount enclosures Serie 3331.
Left-hand or right-hand hinging.
Lock: casement fastener with 3 mm dual-bit lock.
Load capacity: max. 40 kg.


0361-7003-60-07	600 mm	278 mm
0361-7006-60-07	600 mm	411 mm
0361-7009-60-07	600 mm	544.5 mm
0361-7012-60-07	600 mm	678 mm
0361-7015-60-07	600 mm	811.5 mm
0361-7018-60-07	600 mm	944.3 mm
0361-7006-80-07	800 mm	411 mm
0361-7009-80-07	800 mm	544.5 mm
0361-7012-80-07	800 mm	678 mm
0361-7015-80-07	800 mm	811.5 mm
0361-7018-80-07	800 mm	944.5 mm

19"-Swing frame type 0318

Protective ground connection according to DIN EN 61439-1.
Locks: For 23.62" wide cabinets swing frames come with top and bottom 0.12" double mandrel casement locks, for 31.5" wide cabinets swing frames come with 0.12" double mandrel center bar lock.
Load carrying capacity: 397 lbs at 90°, 309 lbs at 165°.
Hinge mounting: Left or right.


0318-6016-01-37	600 mm	1600 mm	lateral
0318-6018-01-37	600 mm	1800 mm	lateral
0318-6020-01-47	600 mm	2000 mm	lateral
0318-6022-01-47	600 mm	2200 mm	lateral
0318-8016-02-37	800 mm	1600 mm	lateral
0318-8018-02-37	800 mm	1800 mm	lateral
0318-8020-02-47	800 mm	2000 mm	lateral
0318-8022-02-47	800 mm	2200 mm	lateral
0318-8016-03-37	800 mm	1600 mm	center
0318-8018-03-37	800 mm	1800 mm	center
0318-8020-03-47	800 mm	2000 mm
0318-8022-03-47	800 mm	2200 mm	center

Attachment bars for swing-frame 0318

Protective ground connection according to DIN EN 61439-1.
Swing frames can be mounted on the right or left.
Opening angle 90°.

		Remember
0318-7060-90-07	600 mm
0318-7080-90-07	800 mm
0318-7010-90-07	1000 mm
0318-7012-90-07	1200 mm

165° kit for 19"-swing frame

Protective ground connection according to DIN EN 61439-1.
For swing frames with center or lateral 19"-arrangement (cannot be used in 23.62" wide cabinets).

Art No.	Remember
0318-7080-18-07

19"-Zinc plated element rails

Protective ground connection according to DIN EN 61439-1.
19"-rails are used for the installation of sub-racks to DIN 41494 and EIA standards in 23.62" wide cabinets.
19"-rails are adjustable over the depht of the cabinet and may be positioned per the "A" dimension of slide rails.

		Remember
0348-7016-33-63	1600 mm
0348-7018-38-63	1800 mm
0348-7020-43-63	2000 mm
0348-7022-47-63	2200 mm
0348-7016-33-73	1600 mm
0348-7018-38-73	1800 mm
0348-7020-42-73	2000 mm
0348-7022-47-73	2200 mm
0348-7016-33-93	1600 mm
0348-7018-38-93	1800 mm
0348-7020-42-93	2000 mm
0348-7022-47-93	2200 mm

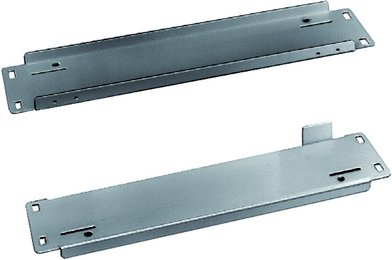

Attachment bracket 0348

Protective ground connection according to DIN EN 61439-1.
For 19"-zinc plated rails.
Adjustable over entire depht every 0.98".

		Remember
0348-9029-56-03	Galvanized 19"-element rails / order no. with final number 63
0348-9829-56-03	Galvanized 19"-element rails / order no. with final numbers 73 and 93

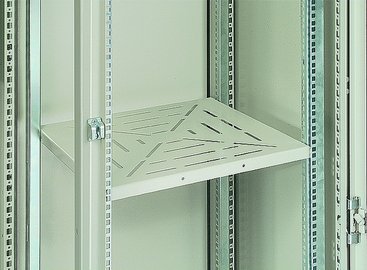

19"-Intermediate shelves-fixed

Protective ground connection according to DIN EN 61439-1.
Assembled with clip nuts and bolts. The fixed shelf is simply placed onto the bolts and secured.
Slots in the shelves aid air movement and help to prevent heat build-up.

		Remember
2010-7263-44-17	600 mm
2010-7263-54-17	800 mm

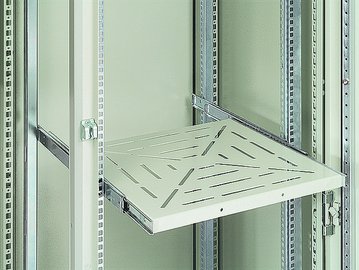

19"-Extendable intermediate shelves

Labor saving quick mounting system employs bajonet tabs on intermediate shelves and telescopic rails. Slots in the shelves aid air movement and help to prevent heat build-up.

		Remember
2010-7261-44-27	600 mm
2010-7261-54-27	800 mm
