Lighting

Connection cable for LED lamp SOL 704

Connection cable to the power supply for sensor operated LED lamp SOL 704.
Male and female connectors (at LED lamp) with locking device.
UL approved when used with sensor operated LED lamp SOL 704.

					notice
3080-7042-25U73	Input side	3000 mm	AC	cURus approved when used with sensor operated LED lamp SOL 704
3080-7042-25U24	Input side	3000 mm	DC	cURus approved when used with sensor operated LED lamp SOL 704

Connection cable for LED lamp SOL 704

Connection cable for cascading sensor operated LED lamps SOL 704.
Male and female connectors (at LED lamp) with locking device.
UL approved when used with sensor operated LED lamp SOL 704.


3080-7042-05U73	Cascading	700 mm	AC	cURus approved when used with sensor operated LED lamp SOL 704
3080-7042-10U73	Cascading	1200 mm	AC	cURus approved when used with sensor operated LED lamp SOL 704
3080-7042-05U24	Cascading	700 mm	DC	cURus approved when used with sensor operated LED lamp SOL 704
3080-7042-10U24	Cascading	1200 mm	DC	cURus approved when used with sensor operated LED lamp SOL 704

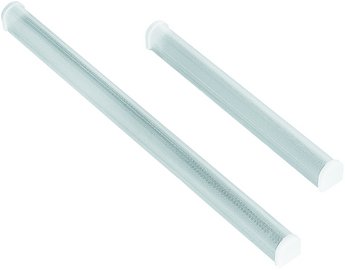

Protection cover for fluorescent lamps

for fluorescent lamps
The cover clips onto the fluorescent tube and protects tube against damage.

			notice
3080-0042-14-40		14 W
3080-0042-15-40		15 W
3080-0042-18-40		18 W

Connection cable with male and female connectors for daisy chain connection

For mounting several cabinet lights


3080-9042-05-24	DC 24V	Connection cable H05VV-F 3G 1.5 with male and female connectors	0.7 m
3080-9042-05-73	AC	Connection cable H05VV-F 3G 1.5 with male and female connectors	0.7 m	Male/female connectors black, connection cable orange
3080-9042-10-24	DC 24V	Connection cable H05VV-F 3G 1.5 with male and female connectors	1.2 m
3080-9042-10-73	AC	Connection cable H05VV-F 3G 1.5 with male and female connectors	1.2 m	Male/female connectors black, connection cable orange

Connection cable with female connector and open end

Cable for connection to power supply

					notice
3080-9042-25-24	DC 24V	Connection cable H05VV-F 3G 1.5 with female connector	3 m	Female connector green / connection cable orange
3080-9042-25-73	AC	Connection cable H05VV-F 3G 1.5 with female connector	3 m	Connecteur femelle noir / câble orange

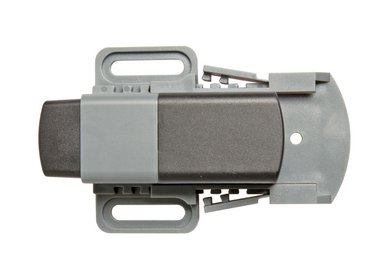

Door Switch for Cabinets H3X0/H3X5

The door switch can be mounted at any position of the continuous door frame.

Order No.	Contact	Housing and lid	Utilization category	Rated operating voltage	notice
3080-7041-61-95	1 Normally open, 1 normally closed		AC-15, Ue/le 240V/3A	Ue 240V

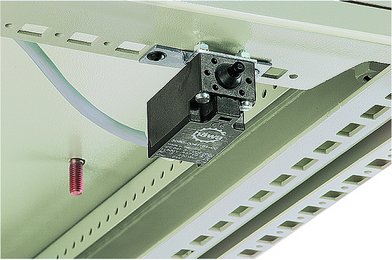

Door Contact Switch

The door contact switch monitors the position of the cabinet doors. Due to its wide mechanical adjustment range, the door contact switch is very versatile. The housing of the switch is adjustable within a range of 35 mm, the slotted hole in the threaded flange offers an additional 21 mm. The travel of the switch itself adds another 8 mm.

					notice
3080-0041-13-01	Change-over (co = closed open)	Screw fixing M5		4-pole terminal, max. tightening torque 0.5 Nm
3080-0041-13-02	Opener (nc=normally closed)	Screw fixing M5		4-pole terminal, max. tightening torque 0.5 Nm

Mounting kit for lamps

The mounting kit is required for mounting lamps to the lateral cabinet strut.

Order No.	Ausführung	Width	Height	Length	notice
3080-7006-12-07	Sheet steel cover plate: Powder coating RAL 7035, texture finish

Mounting kit universal lamp

	notice
3080-7006-04-07
3080-7006-10-07

Mounting kit for sensor operated LED lamp SOL 704

Mounting kit for vertical attachment of sensor operated LED lamps SOL 704 at the frame of H375/H395 modular cabinets (locking side).

Order No.	notice
3080-7042-00-03

Female connector


3080-7041-23-28	female connector unmounted	white	Input side
3080-7041-12-28	female connector unmounted	blue	Input side
3080-7041-24-28	female connector unmounted	blue	Input side

Male connector


3080-7041-23-29	male connector loosely enclosed	white	power output
3080-7041-12-29	male connector loosely enclosed	blue	power output
3080-7041-24-29	male connector loosely enclosed	blue	power output

Connection cable with female connector and open end

For LED lamps, for the connection to the power supply.


3080-7041-23-24	connection cable 2 x 1.5 mm² with female connector	Input side
3080-7041-23-25	connection cable AWG 15 with female connector	Input side
3080-7041-12-24	connection cable 2 x 1.5 mm² with female connector	Input side
3080-7041-12-25	connection cable 2 x AWG 15 with female connector	Input side
3080-7041-24-24	connection cable 2 x 1.5 mm² with female connector	Input side
3080-7041-24-25	connection cable AWG 15 with female connector	Input side

Connection cable with female and male connectors for daisy chain connection

For mounting several LED lamps


3080-7041-23-26	Extension cable 2 x 1,5 mm² with female and male connectors	Socket/connector white, lead white
3080-7041-23-27	Extension cable 2 x AWG 15 with female and male connectors	Socket/connector white, lead white
3080-7041-12-26	Extension cable 2 x 1,5 mm² with female and male connectors	Socket/connector blue, lead white
3080-7041-12-27	Extension cable 2 x AWG 15 with female and male connectors	Socket/connector blue, lead white
3080-7041-24-26	Extension cable 2 x 1,5 mm² with female and male connectors	Socket/connector blue, lead white
3080-7041-24-27	Extension cable 2 x AWG 15 with female and male connectors	Socket/connector blue, lead white
