Mounting plate

Safe and quick fixing by means of häwa "click" locking device!
Mounting plate up to cabinet width 1200 mm with C-edge. For cabinet width 1600/2000 mm, the mounting plate is reinforced with U-sections.
Protective ground connection according to DIN EN 61439-1 with ground screw.


0348-4018-00-13	400 mm	1800 mm
0348-4020-00-13	400 mm	2000 mm
0348-6010-00-13	600 mm	1000 mm
0348-6012-00-13	600 mm	1200 mm
0348-6014-00-13	600 mm	1400 mm
0348-6016-00-13	600 mm	1600 mm
0348-6018-00-13	600 mm	1800 mm
0348-6020-00-13	600 mm	2000 mm
0348-6022-00-13	600 mm	2200 mm
0348-8010-00-13	800 mm	1000 mm
0348-8012-00-13	800 mm	1200 mm
0348-8014-00-13	800 mm	1400 mm
0348-8016-00-13	800 mm	1600 mm
0348-8018-00-13	800 mm	1800 mm
0348-8020-00-13	800 mm	2000 mm
0348-8022-00-13	800 mm	2200 mm
0348-1010-00-13	1000 mm	1000 mm
0348-1012-00-13	1000 mm	1200 mm
0348-1014-00-13	1000 mm	1400 mm
0348-1016-00-13	1000 mm	1600 mm
0348-1018-00-13	1000 mm	1800 mm
0348-1020-00-13	1000 mm	2000 mm
0348-1022-00-13	1000 mm	2200 mm
0348-1210-00-13	1200 mm	1000 mm
0348-1212-00-13	1200 mm	1200 mm
0348-1214-00-13	1200 mm	1400 mm
0348-1216-00-13	1200 mm	1600 mm
0348-1218-00-13	1200 mm	1800 mm
0348-1220-00-13	1200 mm	2000 mm
0348-1222-00-13	1200 mm	2200 mm
0348-1618-00-13	1600 mm	1800 mm
0348-1620-00-13	1600 mm	2000 mm
0348-2018-00-13	2000 mm	1800 mm
0348-2020-00-13	2000 mm	2000 mm

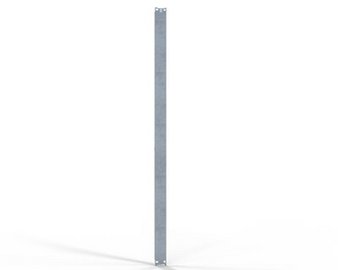

Intermediate piece for mounting plate

To maintain a continuous surface between modular cabinets assembled in suites.

		Remember
0348-0010-00-13	1000 mm
0348-0012-00-13	1200 mm
0348-0014-00-13	1400 mm
0348-0016-00-13	1600 mm
0348-0018-00-13	1800 mm
0348-0020-00-13	2000 mm
0348-0022-00-13	2200 mm

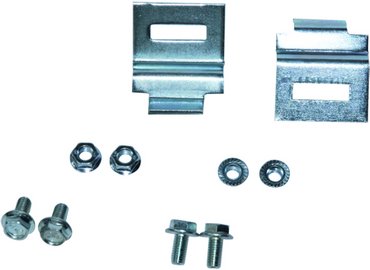

Attachment bracket

For attachment of mounting plate to center attachment rails.

Art No.	Remember
3080-7111-17-00

Lateral mounting plate

For the formation of mounting areas on the side.

		Remember
0396-3220-00-13	400 mm
0396-3240-00-13	400 mm
0396-4220-00-13	500 mm
0396-4240-00-13	500 mm
0396-5220-00-13	600 mm
0396-5240-00-13	600 mm
0396-7220-00-13	800 mm
0396-7240-00-13	800 mm

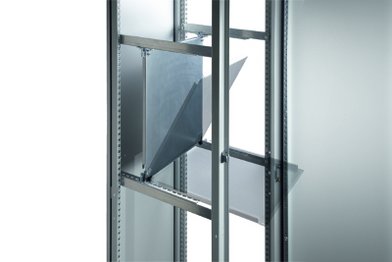

Partial pivot mounting plate

Ground connection: Provided
The partial mounting plate pivots to the front making the equioment behind the mounting plate readily accessible.

		Remember
0396-5155-00-03	600 mm
0396-7155-00-03	800 mm
0396-9155-00-03	1000 mm
0396-1155-00-03	1200 mm
