Mounting rail

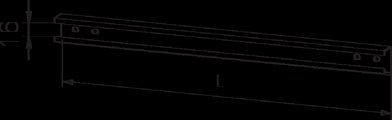

Vertical mounting rail

With M8 thread grounding possibility
forms the vertical mounting platform for all accessories in H370/H390 free-standing cabinets

		Remember
0391-9010-00-03	1000 mm
0391-9012-00-03	1200 mm
0391-9014-00-03	1400 mm
0391-9016-00-03	1600 mm
0391-9018-00-03	1800 mm
0391-9020-00-03	2000 mm

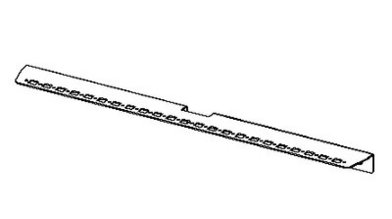

Horizontal mounting rail

		Remember
0391-9000-06-03	600 mm
0391-9000-08-03	800 mm
0391-9000-10-03	1000 mm
0391-9000-12-03	1200 mm
0391-9000-16-03	1600 mm
0391-9000-20-03	2000 mm

Lateral rail

		Remember
0396-0001-40-00	400 mm
0396-0001-50-00	500 mm
0396-0001-60-00	600 mm
0396-0001-80-00	800 mm

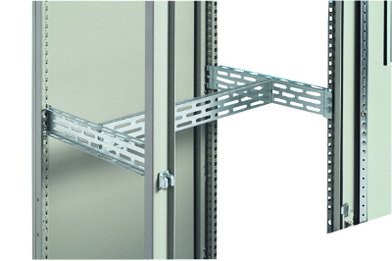

Mounting rail

		Remember
0396-0002-60-00	600 mm
0396-0002-80-00	800 mm
0396-0002-10-00	1000 mm
0396-0002-12-00	1200 mm

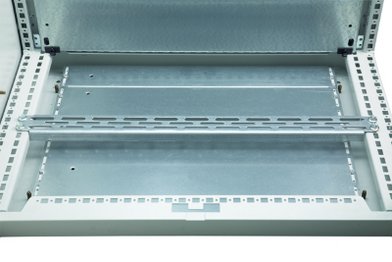

Support rail

		Remember
0396-0004-40-00	400 mm
0396-0004-50-00	500 mm
0396-0004-60-00	600 mm
0396-0004-80-00	800 mm

Mounting rail (Q)

		Remember
0396-0005-60-00	600 mm
0396-0005-80-00	800 mm
0396-0005-10-00	1000 mm
0396-0005-12-00	1200 mm

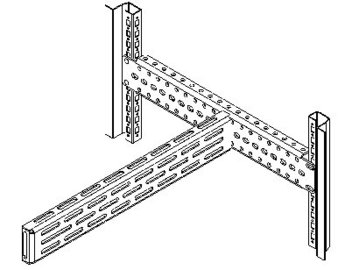

Mounting rail (Q1)

For installation between support rails (T)

		Remember
0396-0019-60-00	600 mm
0396-0019-80-00	800 mm
0396-0019-10-00	1000 mm
0396-0019-12-00	1200 mm

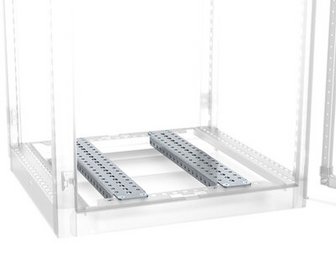

Support rail

		Remember
0396-0062-06-00	600 mm
0396-0062-08-00	800 mm
0396-0062-10-00	1000 mm
0396-0062-12-00	1200 mm

Strut

For lateral mounting of lightweight equipment, cable ducts, cable harnesses etc. inside the cabinet. With 4.5 mm holes every 25 mm for screws DIN 7500 M5x12 or DIN7516 M5x10.

		Remember
0396-0006-40-00	400 mm
0396-0006-50-00	500 mm
0396-0006-60-00	600 mm
0396-0006-80-00	800 mm

Plug-in strut

Used for retrofitting cabinets or if the rear struts are difficult to access due to the cabinet structure
For lateral mounting of lightweight equipment, cable ducts, cable harnesses etc. inside the cabinet
With 4.5 mm holes every 25 mm for screws DIN 7500 M5x12 or DIN7516 M5x10

		Remember
0396-0006-45-00	400 mm
0396-0006-55-00	500 mm
0396-0006-65-00	600 mm
0396-0006-85-00	800 mm

Mounting frame in doors

For lateral mounting of light components, cable ducts, wiring harnesses etc. in cabinets
With Ø 4.5 mm holes every 25 mm for DIN 7500 M5x12 or DIN 7516 M5x10 bolts

		Remember
0396-0011-60-00	600 mm
0396-0011-80-00	800 mm
0396-0011-82-00	800 mm
0396-0011-10-00	1000 mm

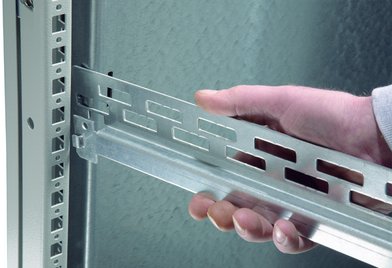

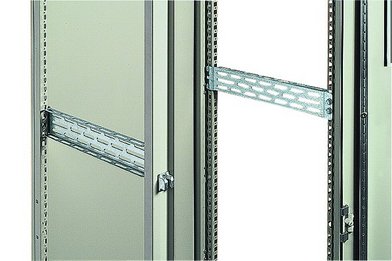

Hook-in center attachment rails

Center attachment rails with oblong holes for flexible attachment of components and accessories.
Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.


0396-0003-40-05	400 mm	left + right version
0396-0003-50-05	500 mm	left + right version
0396-0003-60-05	600 mm	left + right version
0396-0003-80-05	800 mm	left + right version

Left hook-in center attachment

Center attachment rails with oblong holes for flexible attachment of components and accessories.
Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.


0396-0003-40-15	400 mm	left version
0396-0003-50-15	500 mm	left version
0396-0003-60-15	600 mm	left version
0396-0003-80-15	800 mm	left version

Right hook-in center attachment

Center attachment rails with oblong holes for flexible attachment of components and accessories.
Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.


0396-0003-40-25	400 mm	right version
0396-0003-50-25	500 mm	right version
0396-0003-60-25	600 mm	right version
0396-0003-80-25	800 mm	right version

Center attachment for H370/H390

For direct mounting to the side panel (without rail)

		Remember
0391-0003-40-00	400 mm
0391-0003-50-00	500 mm
0391-0003-60-00	600 mm

Center Support Bar

For width separation of 800, 1000, and 1200 mm wide cabinets

		Remember
0396-0007-40-00	400 mm
0396-0007-60-00	600 mm

Center support bracket

For mounting short 19"-rails, at any height of H390/H395 cabinets.

		Remember
0396-0015-40-01	400 mm
0396-0015-50-01	500 mm
0396-0015-60-01	600 mm
0396-0015-80-01	800 mm

Adaptor rail for Lütze wiring system

		Remember
0396-0009-40-00	400 mm
0396-0009-50-00	500 mm
0396-0009-60-00	600 mm
0396-0009-80-00	800 mm

Mounting system “Comfort“ for Lütze LSC

		Remember
0396-6009-00-00	600 mm
0396-8009-00-00	800 mm
0396-1009-00-00	1000 mm
0396-1209-00-00	1200 mm

		Remember
0396-6009-10-00	600 mm
0396-8009-10-00	800 mm
0396-1009-10-00	1000 mm
0396-1209-10-00	1200 mm

Mounting system "Vario"

Art No.	Remember
0396-0009-00-10

Universal cable support rail

For cabinets and 7.87" high bases
Cable support rails for stress relief of cable wires.

		Remember
0396-7082-02-64	400 mm
0396-7082-04-64	600 mm
0396-7082-06-64	800 mm
0396-7082-07-14	850 mm
0396-7082-08-64	1000 mm
0396-7082-09-64	1100 mm
0396-7082-10-64	1200 mm

Lateral cable strain

		Remember
0396-7702-03-40	400 mm
0396-7702-04-40	500 mm
0396-7702-05-40	600 mm
0396-7702-07-40	800 mm

Slide rails 2070

Suitable for 19"-element rails for supporting and guiding 19"-slide-in modules to DIN 41494

		Remember
2070-7046-01-86
2070-7046-02-86
2070-7046-03-86
2070-7046-04-86
2070-7046-05-86

Slide rails 0317

For 0318-swing frames.
For supporting heavy slide-in modules

		Remember
0317-7001-16-01	210 mm
0317-7001-16-02	310 mm
0317-7001-16-03	410 mm

Slide rails 0361

For 0361-swing frames for 19"-mounting units.

Art No.	Remember
0361-9001-50-03
