Segmentation

Partition panel

Seperates individual units in modular cabinet suites. Protection class is maintained

			Remember
0396-0016-40-63	400 mm
0396-0018-40-63	400 mm
0396-0020-40-63	400 mm
0396-0018-50-63	500 mm
0396-0020-50-63	500 mm
0396-0016-60-63	600 mm
0396-0018-60-63	600 mm
0396-0020-60-63	600 mm
0396-0022-60-63	600 mm
0396-0018-80-63	800 mm
0396-0020-80-63	800 mm

Panels with plug cut-outs

Protective ground connection according to DIN EN 61439-1
For covering cabinet type 0399
Attachment: By means of 6 self-locking nuts
Seal: Continuous clip-on rubber, corresponding to protection class IP 559
Ground connection: Is provided

			Remember
0396-0018-41-52	400 mm
0396-0020-41-52	400 mm
0396-0018-51-52	500 mm
0396-0020-51-52	500 mm
0396-0018-61-52	600 mm
0396-0020-61-52	600 mm

Mounting brackets for partition panels

Mounting brackets for installation of partition panels in-between two modular cabinets. Also operates as joining brackets for modular installation.

Art No.	Remember
0396-7033-01-63

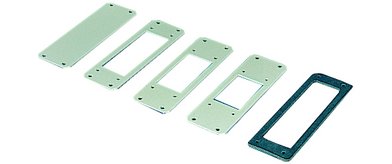

Adapter flanges

For reducing the connector or sealing the cutout.
For mounting over the pre-cut openings.

	Remember
3080-9104-10-00
3080-9104-20-00
3080-9104-30-00
3080-9104-40-00
