Shelves

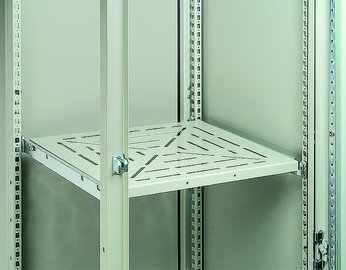

Intermediate shelves - fixed

Protective ground connection according to DIN EN 61439-1.
Intermediate shelves for mounting to cabinet frame. Very large mounting surfaces are obtained by using the entire interior cabinet width.
Assembled with clip nuts and bolts. The fixed shelf is simply placed onto the bolts and secured.
Slots in the shelves aid air movement and help to prevent heat build-up.


2010-7266-44-17	600 mm	600 mm
2010-7268-44-17	600 mm	800 mm
2010-7268-54-17	600 mm	800 mm
2010-7286-44-17	800 mm	600 mm
2010-7288-44-17	800 mm	800 mm
2010-7288-54-17	800 mm	800 mm

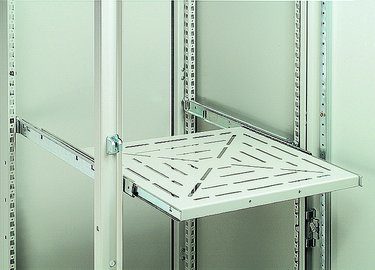

Extendable intermediate shelves

Labor saving quick mounting system employs bajonet tabs on intermediate shelves and telescopic rails. Slots in the shelves aid air movement and help to prevent heat build-up.


2010-7266-44-37	600 mm	600 mm
2010-7268-44-37	600 mm	800 mm
2010-7286-44-37	800 mm	600 mm
2010-7288-44-37	800 mm	800 mm

Extendable equipment drawer, two levels

Can be used in häwa 2096 PC cabinets, modular and free-standing cabinets.
For PC, printers, etc.
max. dimensions W x H x D:
- 2 pcs. PC towers: 200 x 450 x 460 mm / 7.87 x 17.71 x 18.11“ plus plug
- 1 pc. printer: 390 x 350 x 460 mm / 15.35 x 13.77 x 18.11“ plus plug

Art No.	Suitabel for width	Suitable for depth	Footprint	Load capacity	Extension length	Remember
0396-6866-55-27	600 mm	625 mm	Width: 488 mm x Depth: 500 mm	60 kg	530 mm

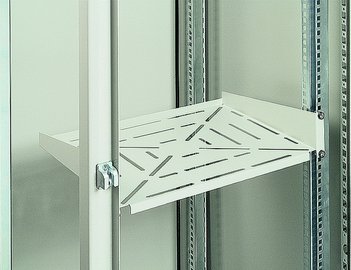

Fixed intermediate shelves 2 U

For mounting in all 19"-cabinets to DIN 41494.

Art No.	Remember
2010-7262-30-17

Intermediate shelves 2U, extendable

Art No.	Remember
2010-7262-30-27
