0390-2020-40-17

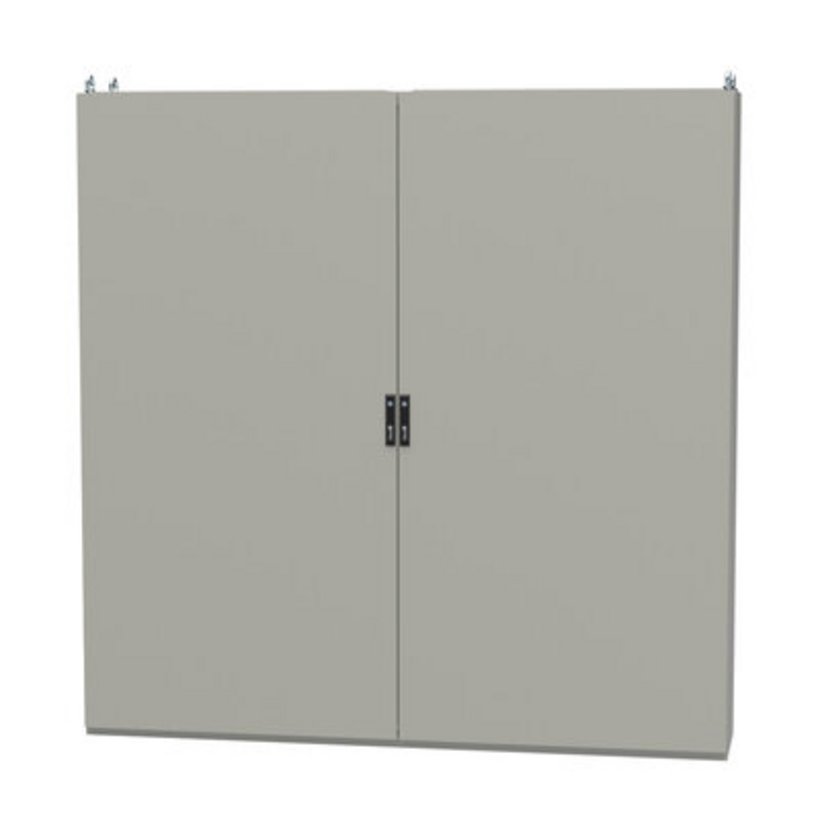

Free-Standing cabinets Sheet steel H390, double door
- Sheet steel
- Free-standing cabinet
- Depth 400 mm
- Protection class IP/Nema/Type: see Technical data
- System accessories permit modular extension
Product description
Free-standing cabinets with single or double door design. Available with or without mounting plate. Mounting rails for 100 % utilization of häwa accessories available as option.
Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling
Flanged edges prevent dust and water from entering when opening the door
Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side
Opening angle 120° can be modified to 180°
Locking: Bar lock
Standard with 3 mm double mandrel bolt
Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm
Top plate can be removed, with 4 lifting eyes M12 to DIN 580
Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes
C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets
Technical data
-
Article number: 0390-2020-40-17
-
Protection class: Designed in accordance with IP55
and Nema 1, 12 -
Material: Sheet steel
-
Authorization: CE
-
Dimensions: Width : 2000 mm Height : 2000 mm Depth : 400 mm
-
Weight: 293.5 kg
-
Cabinet type: Free standing cabinets
-
Variant: with mounting plate
-
Surface: Powder coating RAL 7035, texture finish
-
Sheet thickness: Door: 2 mm(ga)
Roof angle: 2 mm(ga)
Carrier angle ground group: 2,5 mm(ga)
Frame/Body: 1,5 mm(ga)
Rear wall: 1,5 mm(ga)
Moungting panel: 3 mm(ga)
Notice
- Rear panel with hinged door or other modifications involve delivery time. Price upon request.
- Attention: Center attachment type 0391-0003-..-00 cannot be combined with vertical mounting rails type 0391-90..-00-03.
- Modular assembly is achieved by using the horizontal/vertical mounting rails.For width 1600/2000, 2 horizontal mounting rails are required.
- Please refer to base drawings for base mounting dimensions.
- Cabinet complete with lifting eyes, top plate, bottom cable entry plate and 1 key
2070-9102-34-00
Clip-nuts
Thread
M4
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-45-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-45-01
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-01
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 2,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9202-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9203-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 3,2 mm
For cut-out size
12,3x12,3 mm/0,48x0,48"
Variante
without grounding pin
3080-7109-87-00
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door width 500 mm
3080-9042-01-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
3080-9042-04-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
3080-9042-60-37
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
0396-2001-41-17
100 mm high base for H390 cabinets only (flush with rear side)
Suitable for width
2000 mm
Suitable for depth
400 mm
Material
Sheet steel
Socket size
375 mm
0396.2002.41.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
2000 mm
Suitable for depth
400 mm
Material
Sheet steel
Socket size
375 mm
3080-7041-61-95
Door Switch for Cabinets H3X0/H3X5
Contact
1 Normally open, 1 normally closed
Utilization category
AC-15, Ue/le 240V/3A
Rated operating voltage
Ue 240V
3080-0041-13-01
Door Contact Switch
Design
Change-over (co = closed open)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
3080-0041-13-02
Door Contact Switch
Design
Opener (nc=normally closed)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
