0450-1018-50-00

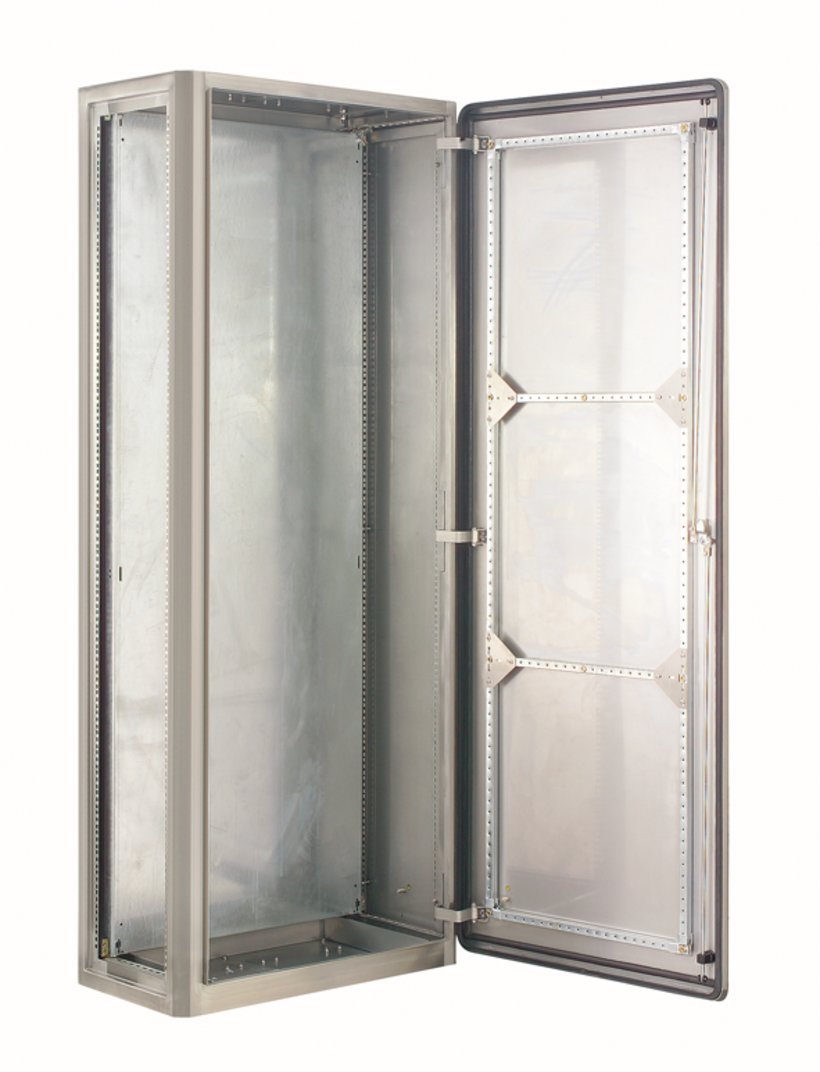

Sanitary IP69K Cabinet H450 Depth 19.69"
- Protection class IP66/69
- Without joints
- No dead spots
- Suitable for critical applications
Product description
Protective ground connection according to DIN EN 61439-1, M8x20 mm bolts in top, bottom, door and side panel. Mounting plate with drilled holes.
Base mounting: 4 or 6 holes 10.5 mm /0.41” diam.
Hinged door: Externally mounted, at right side. Edges rounded, 30 mm/1.18“ radius
Lock: 3 mm double mandrel lock with safety latch and locking bars.
Internal hinges with 110° opening angle
Bolted reinforcement frame made of resistant square tubes with two additional cross strut with attachment holes 4,5 mm/0.18“ with 25 mm/0.98“ hole pattern.
Closed top
Cable entry: bottom with 4 cable entry plates flush mounted, attachment from inside.
Modular assembly: Via flange element or quick connector attachment to perforated frame.
Technical data
-
Article number: 0450-1018-50-00
-
Protective conductor connection: according to DIN EN 61439-1
-
Dimensions: Width : 1000 mm Height : 1800 mm Depth : 500 mm
-
Weight: 131 kg
-
Cabinet type: Sanitary Cabinet
-
Variant: without mounting plate
Notice
- Option: Version in V4A material no. 1.4571, or sheet steel.
- Surface finish: externally brushed, grain 300 or polished.
- Door externally flush
- with viewing window
- Door hinged at left side
- Swivel frame type 0318 with customized attachment kit
- Cable entry in the roof
- Intermediate dimensions
- Partition panel
- Price on request
- Cabinet complete with hinged front door, 4 bottom cable entry plates and one key
Side panel for sanitary cabinet type H450
base, height 200 mm for sanitary cabinet H450
