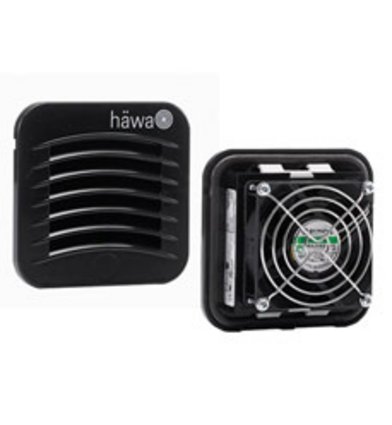

FixCool Filter Fan
FixCool Filter Fan
FixCool filter fan with standard filter pad in an innovative design for economical control cabinet cooling.
The front grid is made of robust, self-extinguishing plastic with seamless foamed-in seal.
Sturdy plastic clips allow quick installation and ensure a secure fit.
The electrical connection is made via spring terminals (except type FC10: strands).
Two lateral auxiliary grooves facilitate the opening of the front grid, which is simply opened to the front to change the filter pad.
Remember
3156-0092-23-00-00
230 V AC
IP54
92x92 mm/3,62x3,62"
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
FC10
3156-0092-23-70-00
230 V AC
IP54
92x92 mm/3,62x3,62"
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
FC10
3156-0092-11-00-00
115 V AC
IP54
92x92 mm/3,62x3,62"
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
FC10
3156-0092-11-70-00
115 V AC
IP54
92x92 mm/3,62x3,62"
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
FC10
3156-0092-24-00-00
24 V DC
IP54
92x92 mm/3,62x3,62"
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
FC10
3156-0092-24-70-00
24 V DC
IP54
92x92 mm/3,62x3,62"
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
FC10
3156-0125-23-00-00
230 V AC
IP54
125x125 mm/4,92x4,92"
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
FC15
3156-0125-23-70-00
230 V AC
IP54
125x125 mm/4,92x4,92"
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
FC15
3156-0125-11-00-00
115 V AC
IP54
125x125 mm/4,92x4,92"
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
FC15
3156-0125-11-70-00
115 V AC
IP54
125x125 mm/4,92x4,92"
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
FC15
3156-0125-24-00-00
24 V DC
IP54
125x125 mm/4,92x4,92"
unimpeded air flow: 67 m3/h
with exhaust filter: 50 m3/h
FC15
3156-0125-24-70-00
24 V DC
IP54
125x125 mm/4,92x4,92"
unimpeded air flow: 67 m3/h
with exhaust filter: 50 m3/h
FC15
3156-0177-23-00-00
230 V AC
IP54
177x177 mm
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
FC20
3156-0177-23-70-00
230 V AC
IP54
177x177 mm
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
FC20
3156-0177-11-00-00
115 V AC
IP54
177x177 mm
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
FC20
3156-0177-11-70-00
115 V AC
IP54
177x177 mm
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
FC20
3156-0177-24-00-00
24 V DC
IP54
177x177 mm
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
FC20
3156-0177-24-70-00
24 V DC
IP54
177x177 mm
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
FC20
3156-0223-23-00-00
230 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
FC25
3156-0223-23-70-00
230 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
FC25
3156-0223-11-00-00
115 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
FC25
3156-0223-11-70-00
115 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
FC25
3156-0223-23-01-00
230 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
FC25
3156-0223-23-71-00
230 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
FC25
3156-0223-11-01-00
115 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
FC25
3156-0223-11-71-00
115 V AC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
FC25
3156-0223-24-01-00
24 V DC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow: 230 m3/h
with exhaust filter: 190 m3/h
FC25
3156-0223-24-71-00
24 V DC
IP54
223 x 223 mm/8,78 x 8,78"
unimpeded air flow: 230 m3/h
with exhaust filter: 190 m3/h
FC25
3156-0291-23-00-00
230 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
FC30
3156-0291-23-70-00
230 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
FC30
3156-0291-11-00-00
115 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
FC30
3156-0291-11-70-00
115 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
FC30
3156-0291-23-01-00
230 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
FC30
3156-0291-23-71-00
230 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
FC30
3156-0291-11-01-00
115 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
FC30
3156-0291-11-71-00
115 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
FC30
3156-0291-40-01-00
400/460 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
FC30
3156-0291-40-71-00
400/460 V AC
IP54
291 x 291 mm/11,46 x 11,56"
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
FC30

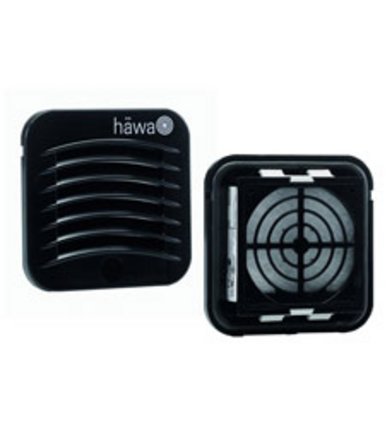

FixCool Filter Fans
FixCool Filter Fans
FixCool filter fan with standard filter pad in an innovative design for economical control cabinet cooling.
The front grid is made of robust, self-extinguishing plastic with seamless foamed-in seal.
Sturdy plastic clips allow quick installation and ensure a secure fit.
Two lateral auxiliary grooves facilitate the opening of the front grid, which is simply opened to the front to change the filter pad.
Remember
3156-0092-00-00-00
IP54
92x92 mm/3,62x3,62"
AC10
3156-0092-00-70-00
IP54
92x92 mm/3,62x3,62"
AC10
3156-0125-00-00-00
IP54
125x125 mm/4,92x4,92"
AC15
3156-0125-00-70-00
IP54
125x125 mm/4,92x4,92"
AC15
3156-0177-00-00-00
IP54
177x177 mm
AC20
3156-0177-00-70-00
IP54
177x177 mm
AC20
3156-0223-00-00-00
IP54
223 x 223 mm/8,78 x 8,78"
AC25
3156-0223-00-70-00
IP54
223 x 223 mm/8,78 x 8,78"
AC25
3156-0291-00-00-00
IP54
291 x 291 mm/11,46 x 11,56"
AC30
3156-0291-00-70-00
IP54
291 x 291 mm/11,46 x 11,56"
AC30
Exhaust Filters for Super Flat Filter Fans
Exhaust Filters for Super Flat Filter Fans
The front grid can be overpainted to match your color.
Large front grid cut-outs optimize maximum air flow, minimum noise level and visual filter status indication.
Häwa’s super flat filter design makes size variations for specific applications economically feasible.
Environment-friendly, since all parts are made of galvanized sheet steel which can be easily recycled.
Snap-in mounting achieved with catches integrated in the filter frame.
Construction of filter frame using galvanized sheet steel with…
Remember
3149-0144-00-07
IP42
122x122 mm/4,80x4,80"
0144
3149-0160-00-07
IP42
138x138 mm/5,43x5,43"
0160
3149-0324-00-07
IP42
292x292 mm/11,50x11,50"
0324

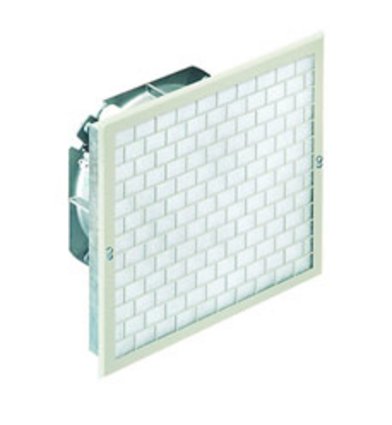

Super Flat Filter Fans
Super Flat Filter Fans
The front grid can be overpainted to match your color.
Large front grid cut-outs optimize maximum air flow, minimum noise level and visual filter status indication.
häwa’s super flat filter design makes size variations for specific applications economically feasible.
Environment-friendly, since all parts are made of galvanized sheet steel which can be easily recycled.
Snap-in mounting achieved with catches integrated in the filter frame.
Additional attachment is possible by using sheet metal screws.…
Remember
3149-0144-23-07-01
230 V AC
IP42
122x122 mm/4,80x4,80"
0144
3149-0144-11-07-01
115 V AC
IP42
122x122 mm/4,80x4,80"
0144
3149-0160-23-07-01
230 V AC
IP42
138x138 mm/5,43x5,43"
0160
3149-0160-11-07-01
115 V AC
IP42
138x138 mm/5,43x5,43"
0160
3149-0324-23-07
230 V AC
IP42
292x292 mm/11,50x11,50"
0324
3149-0324-11-07
115 V AC
IP42
292x292 mm/11,50x11,50"
0324

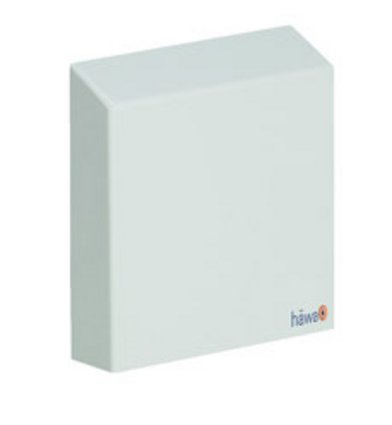

Filter Fans IP 55 Protected Against Water Jets
Filter Fans IP 55 Protected Against Water Jets
Protection cover either of powder coated sheet steel or externally brushed stainless steel.
For top mounting: protection class IP52. Depending on the mounting type, the air outlet can be adjusted to the front, sides or back.
Remember
3142-0148-02-27
0148
Sheet steel
3142-0148-02-25
0148
Stainless steel
3142-0148-01-17
0148
Sheet steel
3142-0148-01-15
0148
Stainless steel
3142-0148-00-24
0148
Sheet steel
3142-0148-00-25
0148
Stainless steel
3142-0276-02-27
0276
Sheet steel
3142-0276-02-25
0276
Stainless steel
3142-1276-02-27
1276
Sheet steel
3142-1276-02-25
1276
Stainless steel
3142-0276-01-17
0276
Sheet steel
3142-0276-01-15
0276
Stainless steel
3142-1276-01-17
1276
Sheet steel
3142-1276-01-15
1276
Stainless steel
3142-0276-00-24
0276
Sheet steel
3142-0276-00-25
0276
Stainless steel
3142-1276-00-24
1276
Sheet steel
3142-1276-00-25
1276
Stainless steel
Inlet Filters for IP 55 Protected Against Water Jets
Inlet Filters for IP 55 Protected Against Water Jets
Protection cover either of powder coated sheet steel or externally brushed stainless steel.
For top mounting: protection class IP52. Depending on the mounting type, the air outlet can be adjusted to the front, sides or back.
Remember
3142-0148-00-07
IP55
cURus
0148
3142-0148-00-05
IP55
cURus
0148
3142-0276-00-07
IP55
cURus
0276/1276
3142-0276-00-05
IP55
cURus
0276/1276

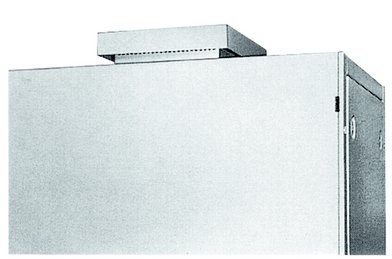

Roof-Mounted Ventilators
Roof-Mounted Ventilators
For heat removal through top of cabinet.
Remember
3148-0300-02-27
230 V AC
IP43
249x249 mm
Roof-mounted ventilator complete
3148-0300-01-17
115 V AC
IP43
249x249 mm
Roof-mounted ventilator complete
3148-0300-00-07
IP43
249x249 mm
Roof-cover without ventilator

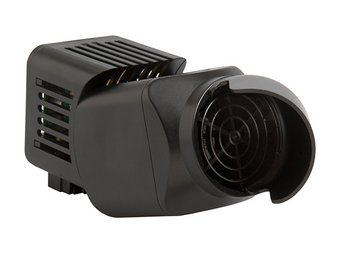

Built-In Fans
Built-In Fans
Used for air circulation inside the cabinet to avoid build-up of heat in certain areas.
Remember
3157-0050-11-23
unimpeded air flow at 50/60 Hz: 27,6 m3/h
clip for snap-on attachment
3157-0051-11-23
unimpeded air flow at 50/60 Hz: 27,6 m3/h
screw attachment
Hose-Proof Hood AC KIT
Hose-Proof Hood AC KIT
Remember
6319-3010-00-02
IP56
1, 12, 3R, 4
AC10
Sheet steel, PC/ABS
FixCool Filter Fans AC10
6319-3015-00-02
IP56
1, 12, 3R, 4
AC15
Sheet steel, PC/ABS
FixCool Filter Fans AC15
6319-3020-00-02
IP56
1, 12, 3R, 4
AC20
Sheet steel, PC/ABS
FixCool Filter Fans AC20
6319-3025-00-02
IP56
1, 12, 3R, 4
AC25
Sheet steel, PC/ABS
FixCool Filter Fans AC25
6319-3030-00-02
IP56
1, 12, 3R, 4
AC30
Sheet steel, PC/ABS
FixCool Filter Fans AC30
6319-5010-00-02
IP56
1, 12, 3R, 4, 4X
AC10
Stainless steel no. 1.4301, PC/ABS
FixCool Filter Fans AC10
6319-5015-00-02
IP56
1, 12, 3R, 4, 4X
AC15
Stainless steel no. 1.4301, PC/ABS
FixCool Filter Fans AC15
6319-5020-00-02
IP56
1, 12, 3R, 4, 4X
AC20
Stainless steel no. 1.4301, PC/ABS
FixCool Filter Fans AC20
6319-5025-00-02
IP56
1, 12, 3R, 4, 4X
AC25
Stainless steel no. 1.4301, PC/ABS
FixCool Filter Fans AC25
6319-5030-00-02
IP56
1, 12, 3R, 4, 4X
AC30
Stainless steel no. 1.4301, PC/ABS
FixCool Filter Fans AC30
Hose-Proof Hood FC KIT
Hose-Proof Hood FC KIT
Remember
6319-3110-30-02
24 V DC
IP56
FC10
Sheet steel, PC/ABS
unimpeded air flow: 50 m³/h
FixCool Filter Fan FC10
6319-3115-30-02
24 V DC
IP56
FC15
Sheet steel, PC/ABS
unimpeded air flow: 67 m³/h
FixCool Filter Fan FC15
6319-3120-30-02
24 V DC
IP56
FC20
Sheet steel, PC/ABS
unimpeded air flow: 108 m3/h
FixCool Filter Fan FC20
6319-3125-31-02
24 V DC
IP56
FC25
Sheet steel, PC/ABS
unimpeded air flow: 230 m3/h
FixCool Filter Fan FC25
6319-5110-30-02
24 V DC
IP56
FC10
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 50 m³/h
FixCool Filter Fan FC10
6319-5115-30-02
24 V DC
IP56
FC15
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 67 m³/h
FixCool Filter Fan FC25
6319-5120-30-02
24 V DC
IP56
FC20
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 108 m3/h
FixCool Filter Fan FC20
6319-5125-31-02
24 V DC
IP56
FC25
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 230 m3/h
FixCool Filter Fan FC25
6319-3110-10-02
115 V AC
IP56
FC10
Sheet steel, PC/ABS
unimpeded air flow: 35/35 m3/h
FixCool Filter Fan FC10
6319-3115-10-02
115 V AC
IP56
FC15
Sheet steel, PC/ABS
unimpeded air flow: 67/69 m³/h
FixCool Filter Fan FC15
6319-3120-10-02
115 V AC
IP56
FC20
Sheet steel, PC/ABS
unimpeded air flow: 108/114 m3/h
FixCool Filter Fan FC20
6319-3125-11-02
115 V AC
IP56
FC25
Sheet steel, PC/ABS
unimpeded air flow: 270/280 m3/h
FixCool Filter Fan FC25
6319-3130-11-02
115 V AC
IP56
FC30
Sheet steel, PC/ABS
unimpeded air flow: 700/630 m3/h
FixCool Filter Fan FC30
6319-5110-10-02
115 V AC
IP56
FC10
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 35/35 m3/h
FixCool Filter Fan FC10
6319-5115-10-02
115 V AC
IP56
FC15
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 67/69 m³/h
FixCool Filter Fan FC15
6319-5120-10-02
115 V AC
IP56
FC20
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 108/114 m3/h
FixCool Filter Fan FC20
6319-5125-11-02
115 V AC
IP56
FC25
Stainless steel no. 1.4301
unimpeded air flow: 270/280 m3/h
FixCool Filter Fan FC25
6319-5130-11-02
115 V AC
IP56
FC30
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 700/630 m3/h
FixCool Filter Fan FC30
6319-3110-20-02
230 V AC
IP56
FC10
Sheet steel, PC/ABS
unimpeded air flow: 35/35 m3/h
FixCool Filter Fan FC10
6319-3115-20-02
230 V AC
IP56
FC15
Sheet steel, PC/ABS
unimpeded air flow: 67/69 m³/h
FixCool Filter Fan FC15
6319-3120-20-02
230 V AC
IP56
FC20
Sheet steel, PC/ABS
unimpeded air flow: 108/114 m3/h
FixCool Filter Fan FC20
6319-3125-21-02
230 V AC
IP56
FC25
Sheet steel, PC/ABS
unimpeded air flow: 270/280 m3/h
FixCool Filter Fan FC25
6319-3130-21-02
230 V AC
IP56
FC30
Sheet steel, PC/ABS
unimpeded air flow: 700/630 m3/h
FixCool Filter Fan FC30
6319-5110-20-02
230 V AC
IP56
FC10
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 35/35 m3/h
FixCool Filter Fan FC10
6319-5115-20-02
230 V AC
IP56
FC15
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 67/69 m³/h
FixCool Filter Fan FC15
6319-5120-20-02
230 V AC
IP56
FC20
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 108/114 m3/h
FixCool Filter Fan FC20
6319-5125-21-02
230 V AC
IP56
FC25
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 270/280 m3/h
FixCool Filter Fan FC25
6319-5130-21-02
230 V AC
IP56
FC30
Stainless steel no. 1.4301, PC/ABS
unimpeded air flow: 700/630 m3/h
FixCool Filter Fan FC30
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

Share this page
