3184-1200-02-23

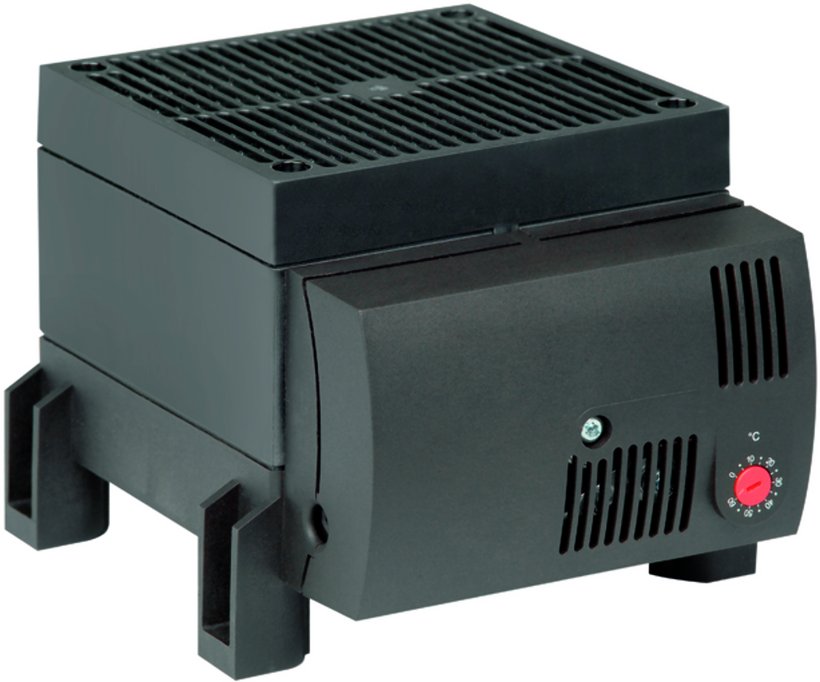

Fan Heater Type HG
- Small compact design
- Ensure a minimum operating temperature
- Prevent condensation
- Advantages of heaters with PTC-resistor: Dynamic heating up, temperature limiting, wide voltage range
- Advantages fan heaters: small compact design, quiet operation
Product description
Cabinet heaters are used for heating up the air inside a control cabinet. häwa offers a wide range of cabinet heaters from 10 to 1200 W to optimize the functionality of electric and electronic components, to ensure a minimum operating temperature and for frost monitoring in case of low ambient temperatures and high humidity.
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

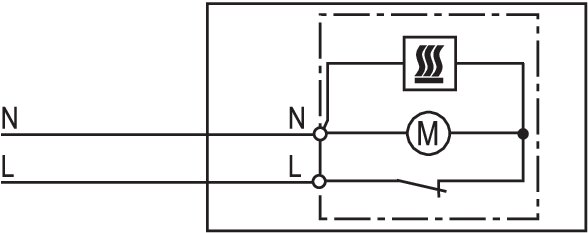

The heater is connected using the internal terminal connectors.
With integrated adjustable temperature controller or hygrostat, maintenance-free.
The small size makes it ideal for use in enclosures where space is at a premium.
Radial fan with ball bearing provides forced air circulation inside the cabinet.
Type HG950/1200 clamping screw M5.
Technical data
-
Article number: 3184-1200-02-23
-
Frequency: 50 Hz/60 Hz
-
Protection class: IP20
-
Protection class: II (double insulation)
-
Use/storage temperature: from : -45 °C to : +70 °C
-
Application/storage humidity: max. 90% relative humidity (non-condensing)
-
Heat output: 1200 W
-
Regulation: Thermostat 0 up to +60 °C
-
MONTAGE: Screw fixing M5
-
Electrical connection: 2-pole max. 2.5 mm², clamping screw with strain relief, max. torque 0.8Nm
-
Heating element: PTC-resistor temperature limiting
-
Temperature monitor: with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure
-
Switch-on current: 13 A
-
SICHERUNG: 10 A (slow-blow)
-
Authorization: CE; cURus
-
Weight: 1.2 kg
-

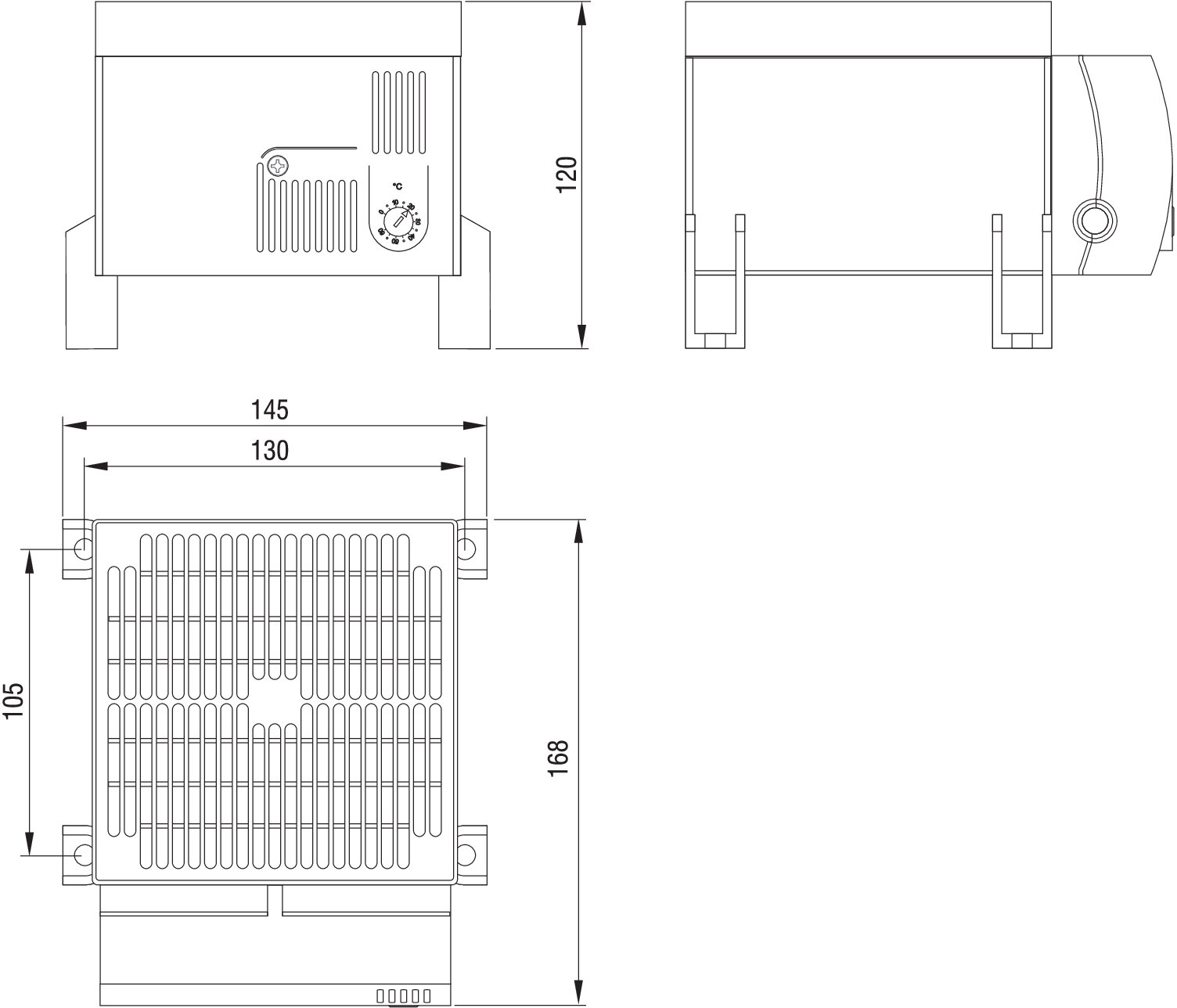

Dimensions: Width : 145 mm Height : 120 mm Depth : 168 mm
-
Surface: housing: black plastic, UL94 V-0
-
Nominal voltage: 230 V AC
-
Mounting position: Vertical air flow (air outlet at top), other mounting positions possible
-
type: HG 1200
- 1 fan heater
