2621-0537-01-03

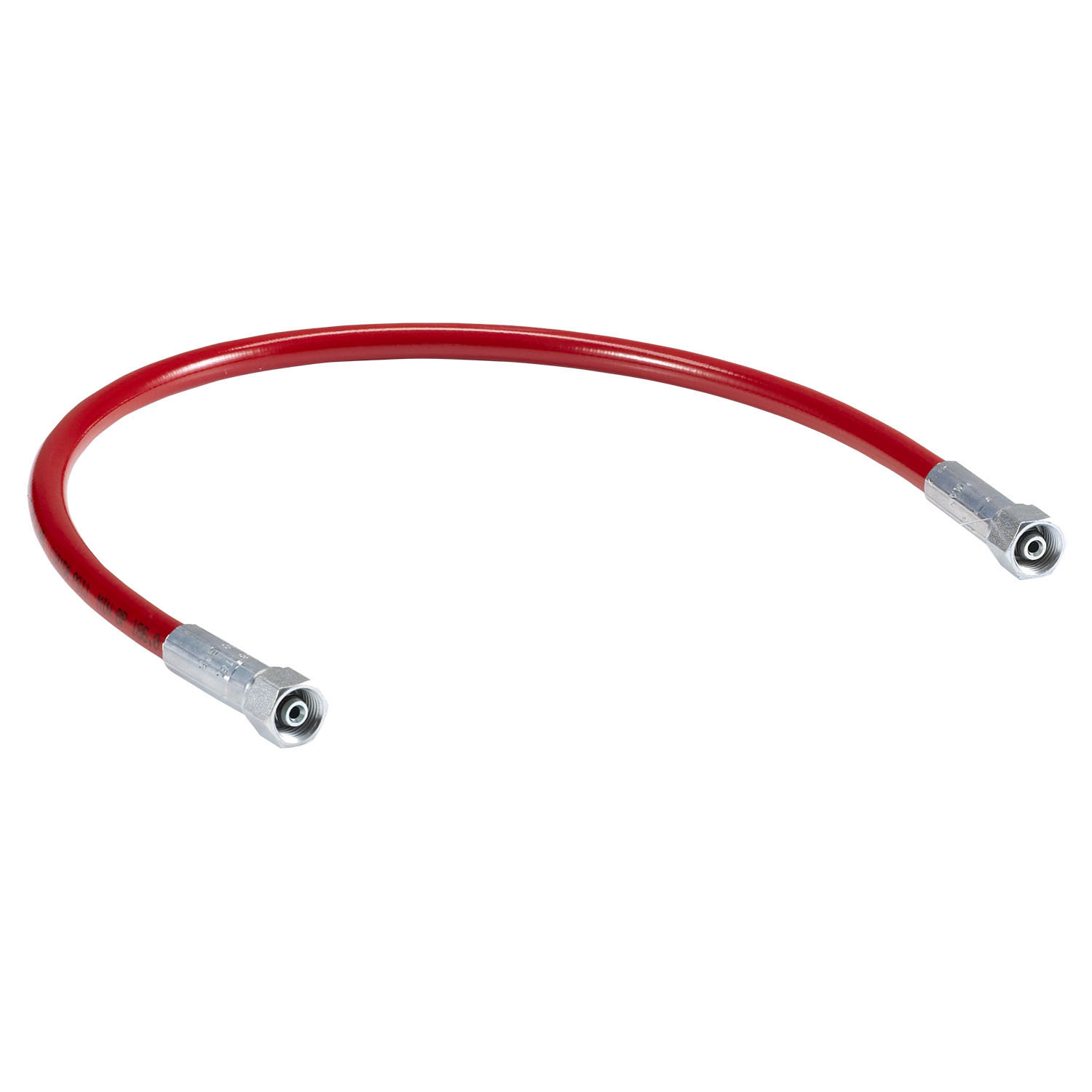

Hydraulic Hose with Union Nut
- Max. operating pressure: 700 bar
Product description
The steel reinforced polymer hose has an excellent flexibility for its entire life-span
Through its steel reinforced construction and its abrasion-resistant cover, it can be used for the toughest applications
With its small outside diameter and tight minimum bending radius it is ideal for installations in narrow spaces
Technical data
-
Article number: 2621-0537-01-03
-
Product family: for mobile devices
-
Connection thread: 2x DKOS08 with M16x1.5 union nut
-
Max. operating pressure: 700 bar
-
Temperature range: from : -40 °C to : +100 °C
-
Color: Red
-
Hose length: 700 mm
-
Outer diameter: 12.5 mm
-
Bending radius: 70 mm
Notice
- Replacement hydraulic hose for Powerman Kompakt, from delivery date September 2016.
- 1 hydraulic hose
