2684-0400-10-00

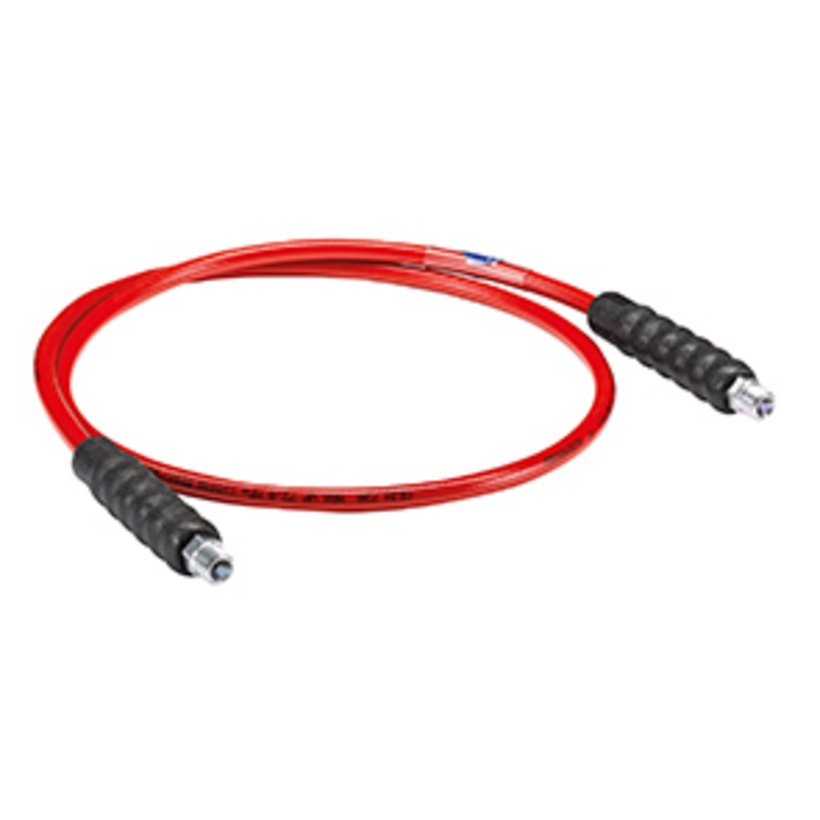

Hydraulic Hoses 1/4" BSPT / 3/8" BSPT
- Max. operating pressure: 700 bar
Product description
The steel reinforced polymer hose has an excellent flexibility for its entire life-span
Through its steel reinforced construction and its abrasion-resistant cover, it can be used for the toughest applications
With its small outside diameter and tight minimum bending radius it is ideal for installations in narrow spaces
Technical data
-
Article number: 2684-0400-10-00
-
Product family: for mobile devices
-
Connection thread: 1x 1/4" BSPT AG + 1x 3/8" BSPT AG
-
Max. operating pressure: 700 bar
-
Temperature range: from : -40 °C to : +100 °C
-
Color: Red
-
Hose length: 1000 mm
-
Outer diameter: 12.5 mm
-
Bending radius: 70 mm
Notice
- To seal the threaded connection, use the thread sealant type 2600-2005-00-03.
- For suitable couplings or screwed cable glands, see “Accessories”.
- 1 hydraulic hose
2600-2005-00-03
Liquid Thread Sealant
Product range
For Mobile Devices and Workshop Equipment
Temperature range from
-
55 °C
Temperature range tor
+
180 °C
Package size
50 ml
