Accessories for sheet metal processing

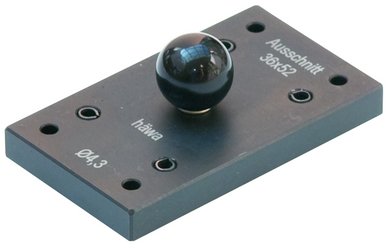

Drilling Template

For drilling 4 attachment holes ø 4.3 mm after punching the cut-out for “heavy duty connectors“.


2683-0906-52-04	for mobile devices	6
2683-0910-65-04	for mobile devices	10
2683-0916-85-54	for mobile devices	16
2683-0924-11-24	for mobile devices	24

Drill bit with tap

For drilling and tapping metric threads in sheet steel, aluminum and plastic.
Drilling and tapping without tool exchange.
Ideal for automatic use in box column drilling machines.


2633-0004-07-00	M4	HSS/E
2633-0005-08-00	M5	HSS/E
2633-0006-10-00	M6	HSS/E
2633-0008-12-00	M8	HSS/E
2633-0010-15-00	M 10	HSS/E
2633-0000-12-15	M 12 x 1,5	HSS/E
2633-0000-16-15	M 16 x 1,5	HSS/E
2633-0000-20-15	M 20 x 1,5	HSS/E
2633-0000-25-15	M 25 x 1,5	HSS/E
2633-0000-32-15	M 32 x 1,5	HSS/E

Taps

For the production of metric threads in sheet steel, aluminum and plastic.
Suitable for machine and manual operation.
Dimensions according to DIN 374.


2633-0012-15-00	M 12 x 1,5	HSS/E
2633-0016-15-00	M 16 x 1,5	HSS/E
2633-0020-15-00	M 20 x 1,5	HSS/E
2633-0025-15-00	M 25 x 1,5	HSS/E
2633-0032-15-00	M 32 x 1,5	HSS/E

Combined Step Drill

Step drill for drilling, reaming and deburring steel, aluminum and plastic sheets.
With marking of the drill diameter in the flute.

				Remember
2632-0000-10-40	for mobile devices	For thread M12x1.5; M16x1.5; M20x1.5; M25x1.5; M32x1.5; M40x1.5	HSS/E
2632-0312-30-00	for mobile devices	For thread PG7; PG9; PG11; PG13.5; PG16; PG21	HSS/E

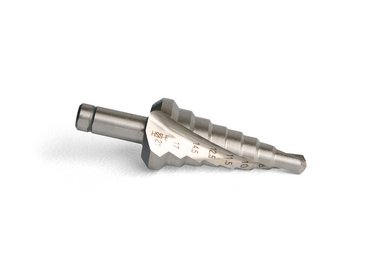

Step Drill

Step drill for drilling, reaming and deburring steel, aluminum and plastic sheets.
With marking of the drill diameter in the flute.

Art No.	Product range	Size	Material	Remember
2632-0000-08-21	for mobile devices	ø 6; 8; 10; 11,5; 12,5; 14,5; 17; 21 mm/ ø 0,24“; 0,31“; 0,39“; 0,45“; 0,49“; 0,57“; 0,67“; 0,83“	HSS/E

Sheet Metal Shell Drill Bits

For burr-free and chatter mark-free drilling.
No pre-drilling required due to sharp drill tip.
Diameter dimensions are specified in the groove.
Shaft with three surfaces.

					Remember
2631-0200-15-42	for mobile devices	8 - 20 mm/0,31 - 0,79"	0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic	HSS
2631-0305-15-43	for mobile devices	4 - 30,5 mm/0,16 - 1,2"	0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic	HSS

Coated Sheet Metal Shell Drill Bits

For burr-free and chatter mark-free drilling.
No pre-drilling required due to sharp drill tip.
Spiral grooved for safe chip disposal.
Diameter dimensions are specified in the groove.
Shaft with three surfaces.
Prolonged lifetime compared to non-coated versions! Higher cutting speed due to coating.

					Remember
2631-0200-35-42	for mobile devices	8 - 20 mm/0,31 - 0,79"	0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic	HSS-TiAlN
2631-0350-35-43	for mobile devices	4 - 30,5 mm/0,16 - 1,2"	0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic	HSS-TiAlN

Sheet Metal Shell Drill Bit Set

For burr-free and chatter mark-free drilling.
No pre-drilling required due to sharp drill tip.
Diameter dimensions are specified in the groove.
Shaft with three surfaces.
3-piece sheet metal shell drill bit set and drilling paste in case.

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2631-7800-15-45	for mobile devices	3-14 mm, 8-20 mm, 16-30,5 mm	0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic	HSS

Drilling Paste

Prevents material buildups of sheet metal shell drill bits and step-drill bits.

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2631-0600-15-49

High Performance Cutting Oil

In plastic bottle with nozzle
Reduces power force
Increases lifetime
Skin-friendly odorless

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2684-0700-25-00	0.25 liters
