2654-7110-00-00

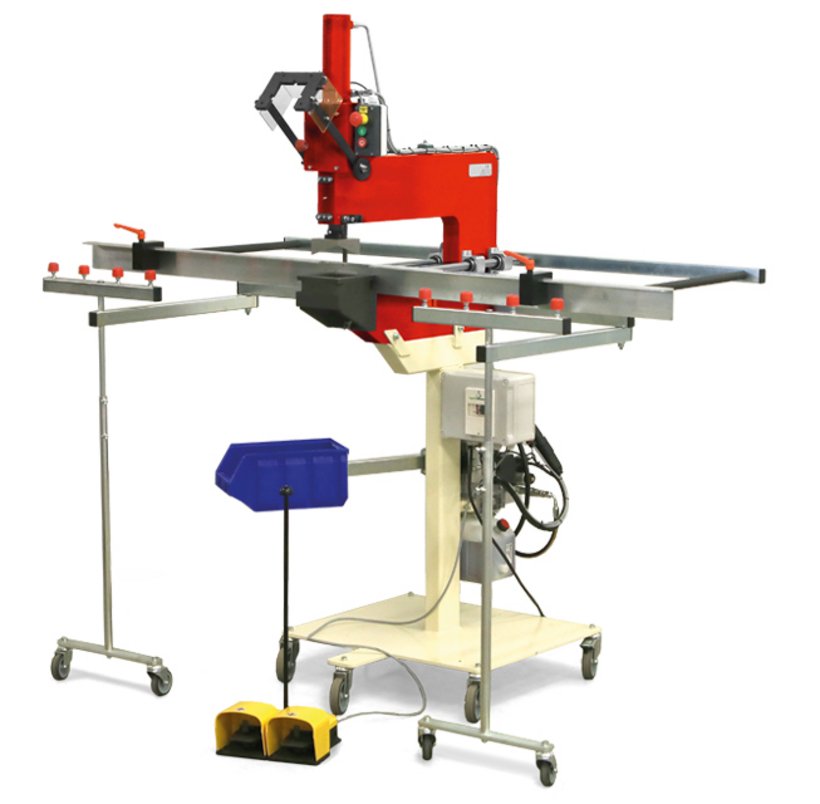

Mobile Multi-Press 500 with Workpiece Support
- Working without marking and center punching
- Useful working depth 500 mm/19.69“
- ”Repositioning is possible“
- Designed for machining small housings as well as large mounting plates
Product description
Powerful bow punch with integrated hydraulic unit for quick and exact punching without pilot holes.
Exchangeable die holders allow the use of punching tools up to 92x92 mm/3.62x3.62”.
Designed for punching junction boxes, wall-mount enclosures, doors, covers/lids, mounting/cable plates, flat and flanged sheets up to 40 mm/1.57“.
The “narrow“ die supports are perfect for punching junction boxes and enclosures.
Center point indicator via laser diode.
Pivot door support.
Transparent finger guard with wiper function.
Easy and quick tool exchange.
Quick punching of large cut-outs thanks to narrow but long rectangular punches.
Equipped with mobile pedestal offering flexible use in the workshop.
Technical data
-
Article number: 2654-7110-00-00
-
EINSATZBEREICH: Punching of cut-outs
-
Material: Sheet steel, stainless steel, polyester
-
Can be used for: Round punches up to ø 92 mm/3.62"
Square punches 92 mm/3.62"
Rectangular punches up to a max. length of 92 mm/3.62" -
MATERIALSTAERKE_DICT: Sheet steel up to 2 mm/14 ga
Stainless steel up to 1.5 mm/17 ga
Polyester up to 4 mm/9 ga -
Noise level: 55 dB
-
Cylinder stroke: 100 mm
-
Processing depth: 500 mm
-
Mains connection: 230V
-
HYDRAULIKLEISTUNG: 0,37 - 0,55 kW
-
Floor space: 2 000 x 800 x 1 900 mm/78,74 x 31,50 x 74,80"
-
WERKSTUECKABMESSUNG: max. 1,000 x 2,000 mm/39.37“ x 78.74“
-
Length stop: Adjustable on both sides of the cylinder from 48 up to 920 mm/1.89“ - 36.22“
-
Depth stop: Adjustable from 28 up to 500 mm/1.10“ – 19.69“
-
Stamp holder diameter: 30 mm
-
Max. operating pressure: 95 bar
-
Weight: 270 kg
Notice
- In addition to special punches such as those for SUB-MIN-D connectors, it is also possible to punch other shapes.
- Die holders and punching tools are available as accessories.
- Bow punch with hydraulic unit and mobile pedestal.
- Length and depth stop with measuring scale.
- Pivot door support on rollers.
- Mounted laser center point indicator.
- Finger guard.
- Scrap box.
