2665-0000-10-00

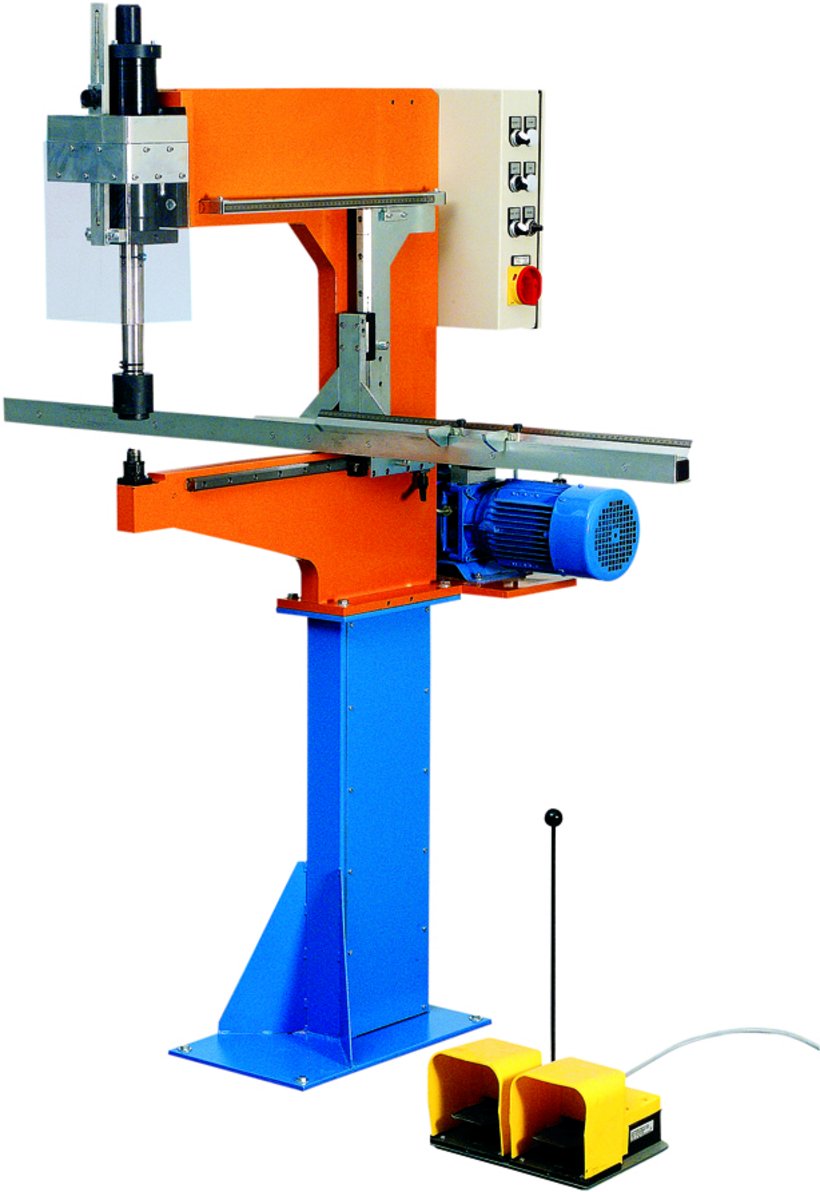

Quick-Press 400
- Punching marks or drill holes are not required
- Punching to the outermost edge is possible
- Useful processing depth 400 mm / 11.75”
- User-friendly
Product description
Bow punch with mounted hydraulic power unit for quick and precise drilling without pilot holes
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates, flat or up to 15 mm flanged and 400 mm deep sheet metals. Depending on the enclosure design, it is possible to punch the base of 300 mm deep enclosures
Double operating hydraulic cylinder with automatic or inching mode controlled via foot switch, with adjustable piston return stroke (for serial production)
Punch center point indicator via laser diode
Smooth-running ball bearing depth stop continuously adjustable from 25-400 mm
Length stop with two movable tilt stops, with measuring scale on right side
Stop adjustable to height through hole grid
Technical Data
-
Order No.: 2665-0000-10-00
-
Application: Punching of cut-outs
-
PRODUKTFAMILIE: For workshop equipment
-
Material: sheet steel, stainless steel, aluminium
-
Suitable for: round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
-
Material thickness: Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
-
Punching force: 65 kN
-
Piston stroke: 100 mm
-
Operating voltage: 400 V / 50 Hz
-
Processing depth: 400 mm
-
Power Supply: 5-pin 16 A Cekon plug
-
Length stop: Adjustable up to 700 mm; 27.56" on both sides of the cylinder
-
Depth stop: Adjustable from 25 to 400 mm; 0.98" to 15.75
-
Punch holder: ø 20 mm; 0.79“
-
Operating pressure: 210 bar
-
Weight: 240 kg
-
Output: 0.55 kW
Notice
- Repositioning is not recommended
- Installation and instruction by qualified häwa personnel
- Travelling costs according to offer
- Quick-Press 400 mounted on a pedestal with length and depth stop
- 2 tilt stops
- hydraulic unit with foot switch
- Laser diode for center point indicator
- Die holder
- Punch extension
- Finger guard and adapter to hold the punch
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 10,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 21,3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 24,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 25,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 28,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 30,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 32,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 40,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 50,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 63,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2665-0422-20-00
Square Punch for Quick-Press 400
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm; 0,87 x 0,87"
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2665-0425-40-00
Square Punch for Quick-Press 400
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm; 1 x 1"
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2665-0922-52-01
Round Punch with Two Keyways for Quick-Press 400
Product range
For workshop equipment
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2665-0000-10-03
Die Holder ø 50 mm for Quick-Press 400
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 20 mm/0,79"
2665-0000-10-04
Adapter for Quick-Press 400
Product range
For workshop equipment
Clamping pin
ø 20 mm/0,79"
Punch holder thread
M14x1,5
2642-0313-20-00
Reduction Adapter Clamping Pin
Product range
For workshop equipment
Version
for Quick-Press 400 and for Maxi-Press 500
Outer diameter
20 mm/0,79"
Inner diameter
13 mm
2600-9500-00-02
Swivel Door Support for Bow Punch
Product range
For workshop equipment
Working height
Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
Workpiece dimensions
max. 800 x 2.000 mm/ 31.5" x 78.74"
Workpiece weight
max. 45 kg; 99.2 lbs
2600-2000-30-00
Laser adjustment aid
Product range
For workshop equipment
Version
for Quick-Press 300/400 and Maxi-Press 500
2665-0000-10-03
Die Holder ø 50 mm for Quick-Press 400
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 20 mm/0,79"
2665-0000-10-04
Adapter for Quick-Press 400
Product range
For workshop equipment
Clamping pin
ø 20 mm/0,79"
Punch holder thread
M14x1,5
