3353-4040-00-88

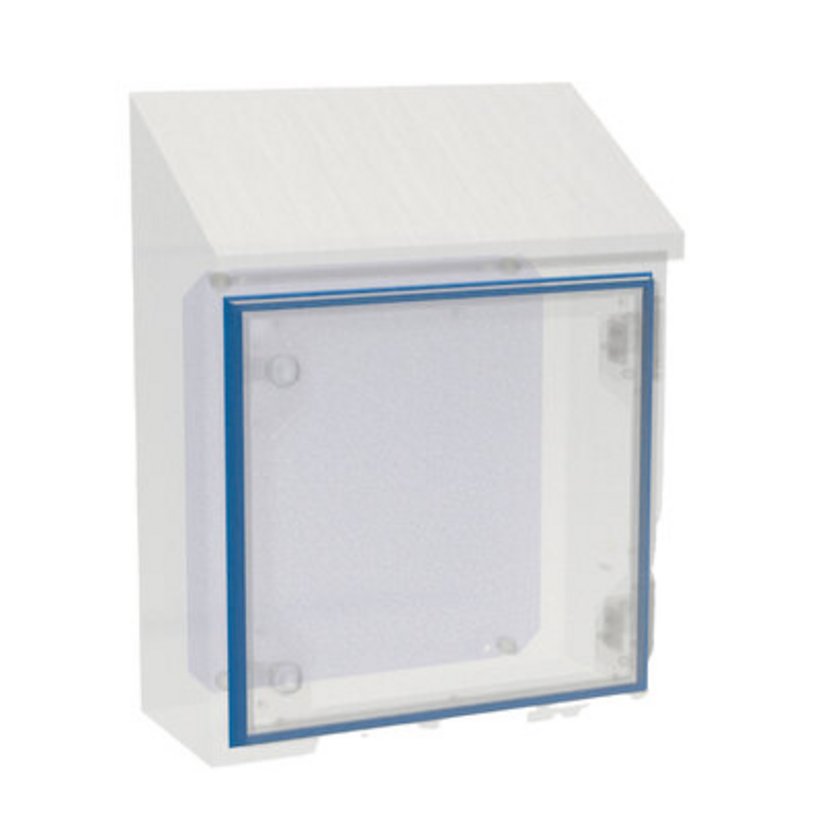

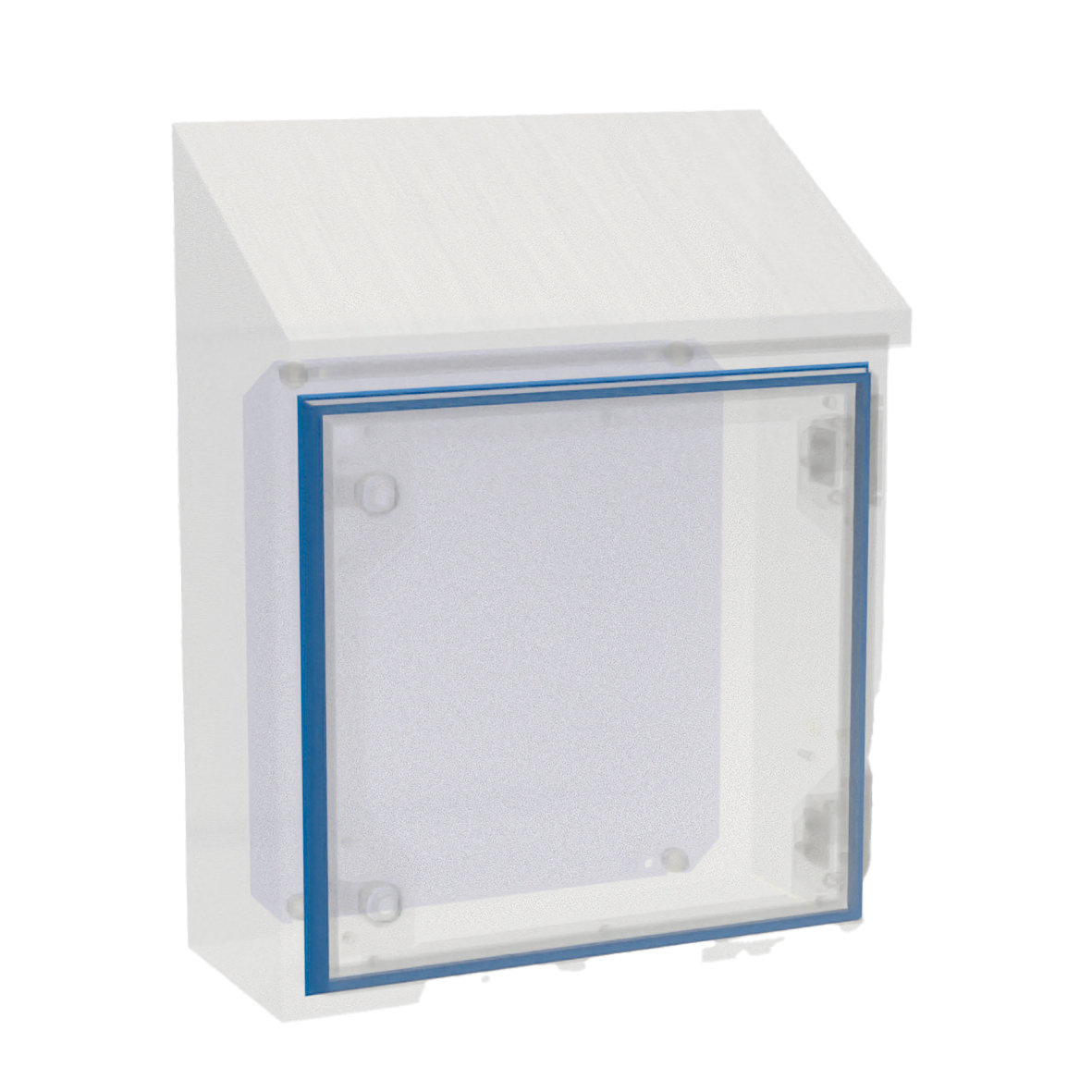

Hygiene sealing for enclosures type HE3353
Product description
Replacement sealing profile for Hygienic Equipment enclosures type HE3353
blue silicone seal, ready for installation
Technical data
-
Article number: 3353-4040-00-88
-
Material: Silicone FDA 177.2600 conform
-
Surface: similar to RAL 5017
Notice
- The hygiene sealing is supplied ready for installation.
- Please observe the mounting instructions for Hygienic Equipment enclosures type 3353
- 1 hygiene sealing
3353-4040-01-00
Door for enclosures type HE3353
Material
Stainless steel no. 1.4301
Surface
externally brushed, surface roughness < 0.8 µm
3353-4040-20-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 420/420 mm
Height: (nominal dimensions/external dimensions): 420/535 mm
Depth: (nominal dimensions/external dimensions): 200/204 mm
Height: (nominal dimensions/external dimensions): 420/535 mm
Depth: (nominal dimensions/external dimensions): 200/204 mm
CAD data and other illustrations:
