Bases and feet

Bases

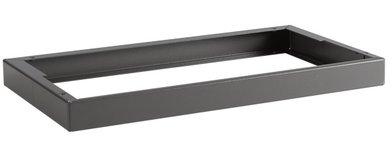

Base for submounting.
4 bottom bore holes ø 8 mm for floor attachment.
4 top tapped bore holes M6 for enclosure attachment.


3336-6005-30-07	300 mm	600 mm	Sheet steel	1,97 inch
3336-6005-35-07	350 mm	600 mm	Sheet steel	1,97 inch
3336-6005-40-07	400 mm	600 mm	Sheet steel	1,97 inch
3336-8005-30-07	300 mm	800 mm	Sheet steel	1,97 inch
3336-8005-35-07	350 mm	800 mm	Sheet steel	1,97 inch
3336-8005-40-07	400 mm	800 mm	Sheet steel	1,97 inch
3336-1005-30-07	300 mm	1000 mm	Sheet steel	1,97 inch
3336-1005-35-07	350 mm	1000 mm	Sheet steel	1,97 inch
3336-1005-40-07	400 mm	1000 mm	Sheet steel	1,97 inch
3336-1205-30-07	300 mm	1200 mm	Sheet steel	1,97 inch
3336-1205-35-07	350 mm	1200 mm	Sheet steel	1,97 inch
3336-1205-40-07	400 mm	1200 mm	Sheet steel	1,97 inch

Feet

Support feet for submounting
for each foot 3 bottom fastening bore holes Ø9 mm for attachment
for each foot 3 top fastening bore holes Ø6 mm and two lateral ones for enclosure mounting

				Remember
3336-3630-30-07	300 mm	Sheet steel	300 mm
3336-3630-35-07	350 mm	Sheet steel	300 mm
