2451-3020-01-00

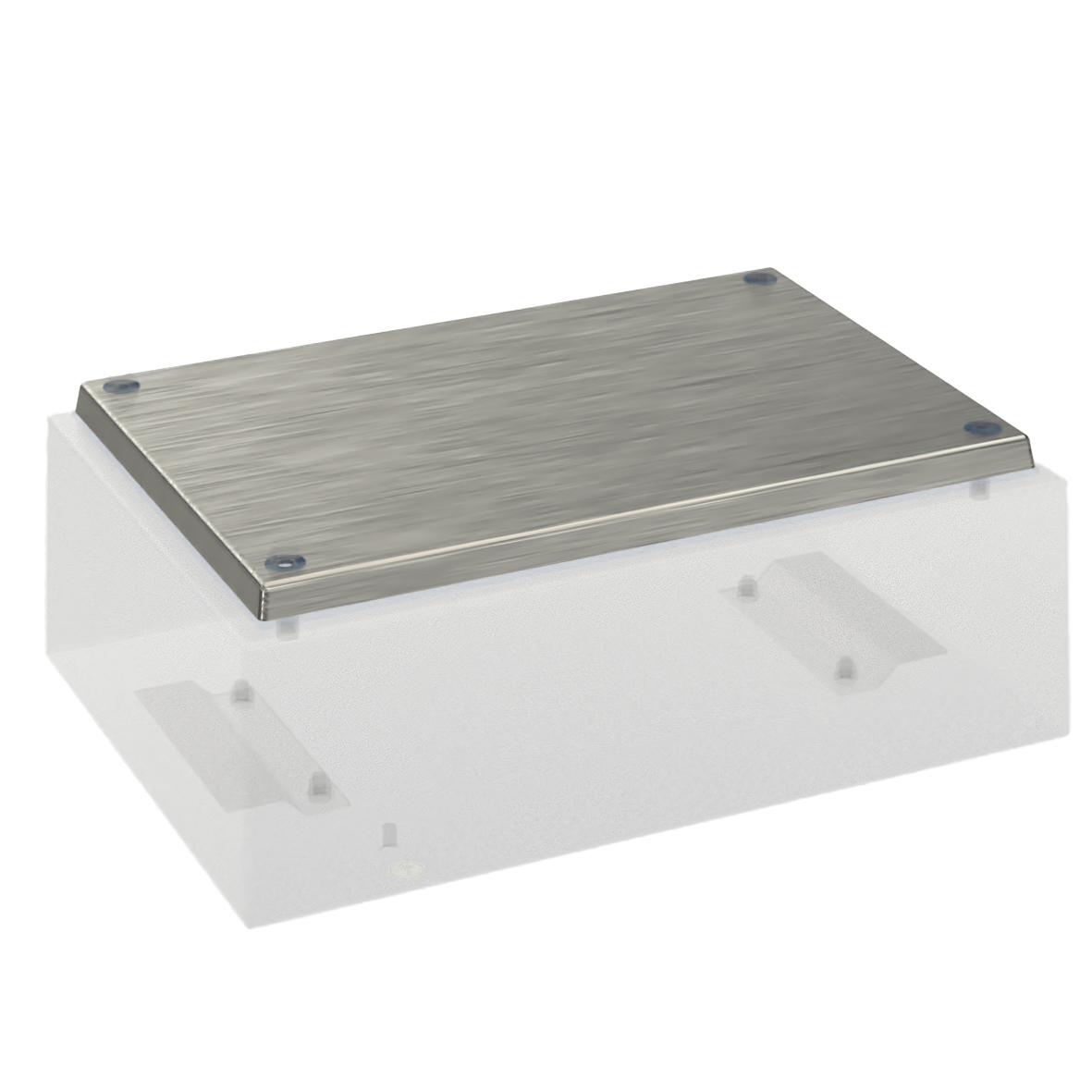

Lids for junction boxes type HE2451
Product description
Replacement lids for Hygienic Equipment junction boxes type HE2451
protective ground connection according to DIN EN 61439-1
with reinforcement brackets
Technical data
-
Article number: 2451-3020-01-00
-
PRODUKTGRUPPENNAMEEBENE4: Accessories Junction Box Hygienic Equipment HE2451
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: 1.5 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: externally brushed, surface roughness < 0.8 µm
Notice
- Please order the hygiene sealing and mounting hardware separately – see accessories.
- 1 lid without mounting hardware, without hygiene sealing
2451-7000-00-10
Mounting hardware for junction box lids type HE2451
Material
Stainless steel no. 1.4301
2451-3020-00-88
Hygiene sealing for junction boxes type HE2451
Material
Silicone FDA 177.2600 conform
Surface
similar to RAL 5017
2451-3020-12-00
Junction Box Hygienic Equipment HE2451
Dimensions
Length: (nominal dimensions/external dimensions): 300/329 mm
Width: (nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
Width: (nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
CAD data and other illustrations:
