6016-0303-00-00

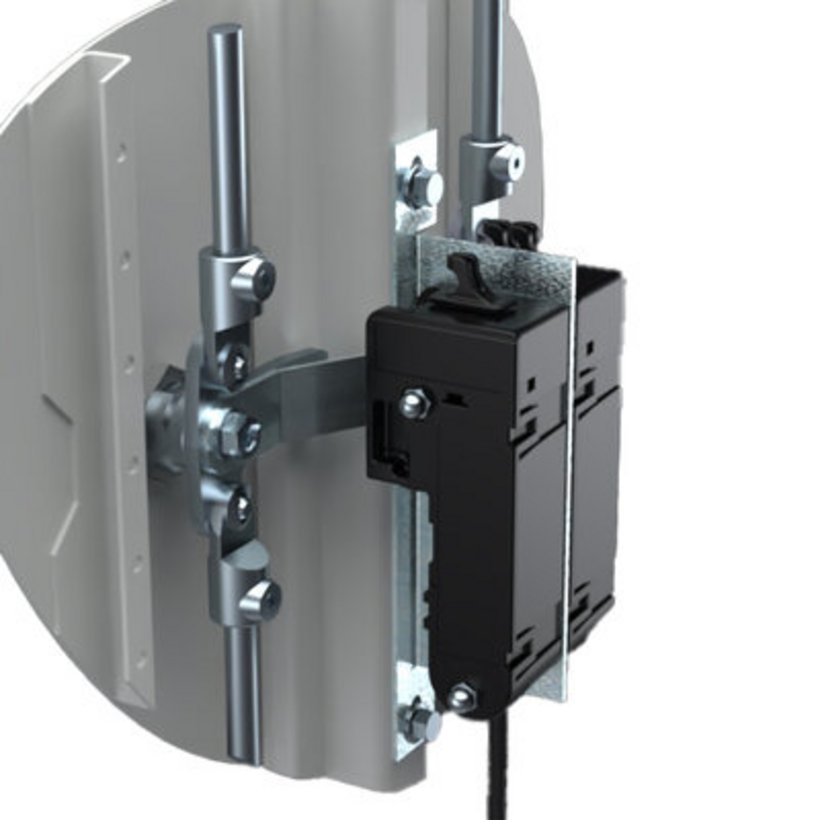

Interlock
- Universal retrofit
- Door locking system with status feedback and automatic unlocking in case of power failure
- Door lock certified according to DIN EN 61439-1 and UL 508A
Product description
Interlocks are designed as an electromechanical component of door locking systems, door closure systems as defined by DIN EN 61439-1 and UL 508A.
Interlocks are designed to receive, lock and release a locking element (latch), used to lock a door, flap or cover of a control cabinet as specified by the above standards.
Can be controlled directly or via a higher-level control system.
Can be used as door contact.
Possibility of integrating other door contacts or controlling HMI interfaces.
Technical data
-
Article number: 6016-0303-00-00
-
Material: Sheet steel / plastic
-
Authorization: cURus
-
Variant: 2 overlapping doors with center post
-
Protection class: approved for Type 1, 2, 5, 12, 3, 3R, 4, 4X
-
Surface: Galvanized
-
Weight: 0.3 kg
Notice
- The connection cable must be provided by the customer, or see 6016-0001-02-00 Interlock Cable.
- UL requirements must be observed.
- Interlock with mounting hardware and operation manual.
