2409-1530-12-07

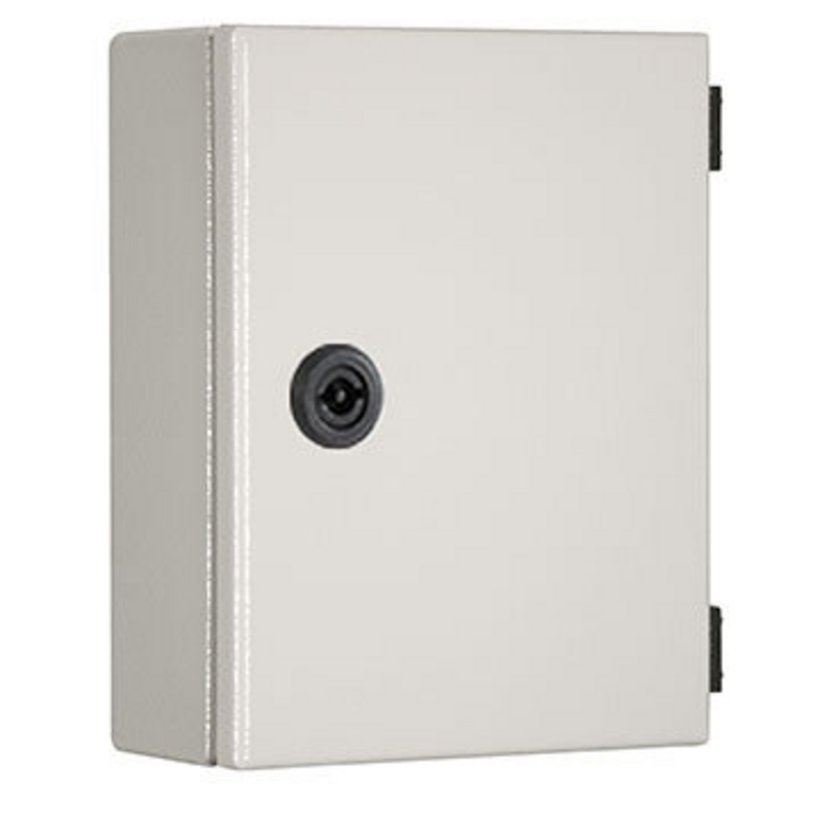

K-enclosure
- Perfect for smaller circuit and wiring systems
- Narrow door frame for large installation surfaces
- Protection class IP55, type 12
- Approval: cULus
Product description
K-enclosure, single door version, can be used with häwa junction box accessories.
Protective ground connection according to DIN EN 61439-1, bolts M5x10 on door and body
9 mm flanged door frame and narrow door gap avoid the entry of dirt and water while opening the door
Door with seamlessly foamed seal, standard door stop on the right side
Sheet steel hinges, opening angle 120°
Lock: quarter turn lock, standard locking type 3 mm double mandrel
Z-bracket on the rear panel for the attachment of a mounting plate or mounting rail
Technical data
-
Article number: 2409-1530-12-07
-
PRODUKTGRUPPENNAMEEBENE4: K-enclosure
-
Variant: without equipment, 1 door
-
Material: Sheet steel
-
Width: 150 mm
-
Height: 300 mm
-
Depth: 120 mm
-
Closing: 1 quarter turn latch lock
-
Sheet thickness: 1.5 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Closure: plastic housing, locking bolt: GDZn black, latch: galvanized
-
Authorization: cULus
-
Protection class: IP55
Type 1, 2, 5, 12
- Complete enclosure and 1 key
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
2408-7202-13-04
Screw-on hinge 120°
Material
hinge: zinc die-casting, chrome-plated
mounting hardware: stainless steel
hinge pin: hardened steel
mounting hardware: stainless steel
hinge pin: hardened steel
2408-7202-13-07
Screw-on hinge 120°
Material
hinge: zinc die-casting, black galvanized
mounting hardware: galvanized sheet steel
hinge pin: hardened steel
mounting hardware: galvanized sheet steel
hinge pin: hardened steel
