3331-1080-40-07

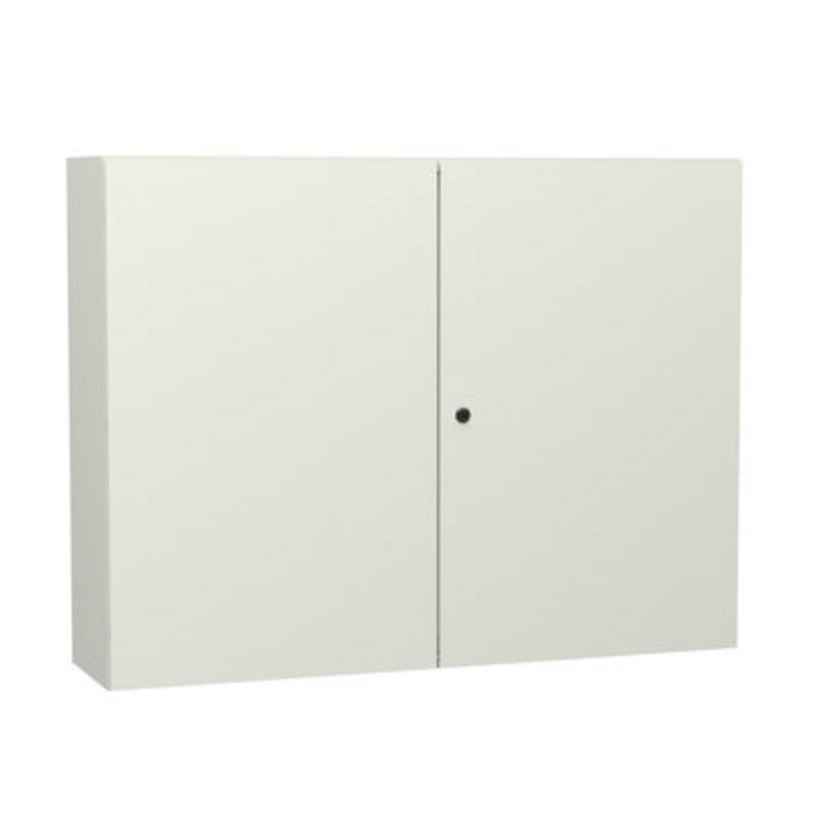

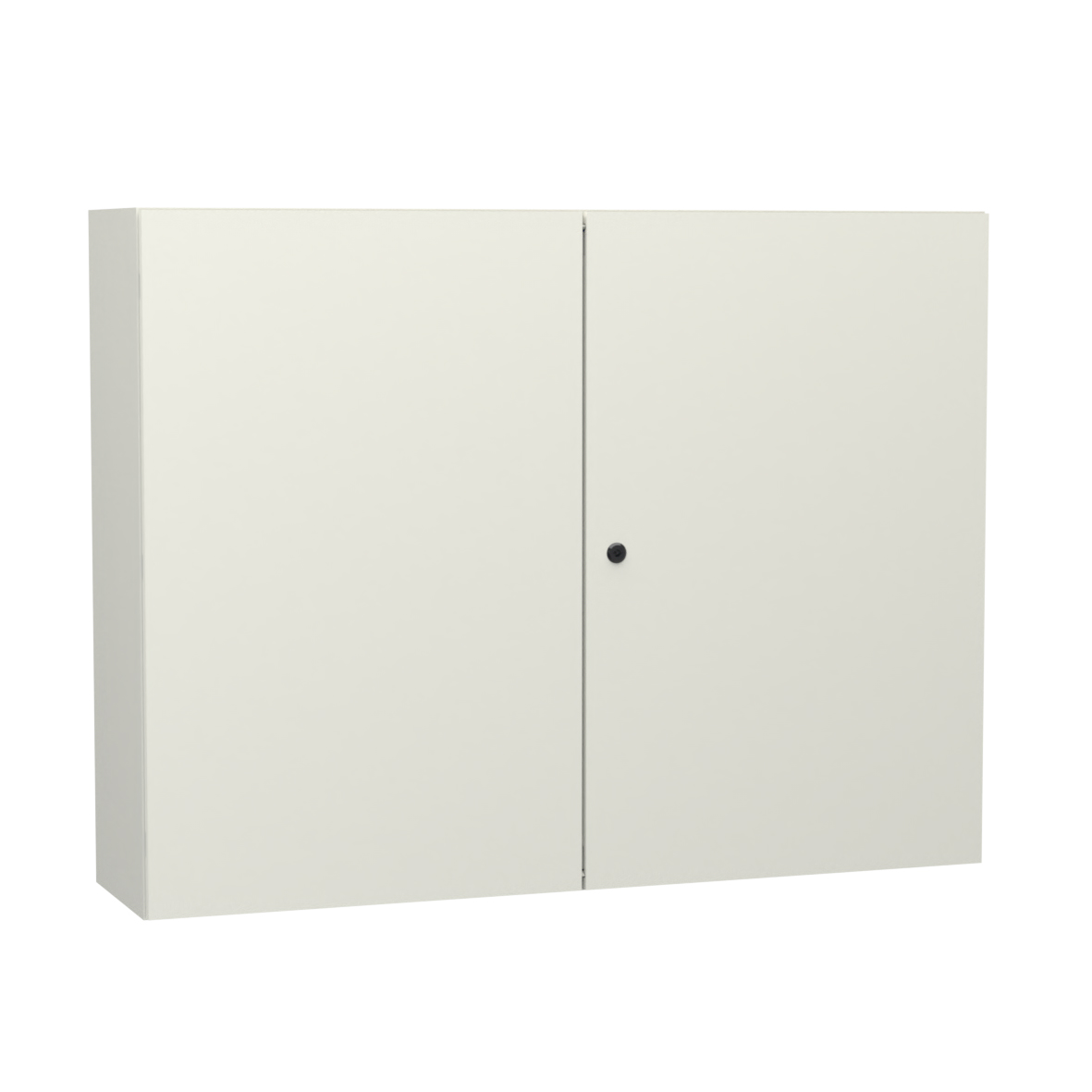

Wall-mount enclosures series 33, sheet steel, 2 doors
- maximum protection class IP66
- 180° concealed hinge
- solid frame with a width of 26.5 mm
- narrow door gap
- The door’s opening direction can be changed without drilling
- maximum depth: D-16mm
- flexible system accessories
Product description
Enclosure with double door. Optional with or without mounting panel.
Protective ground connection to DIN EN 61439-1, studs M6x16 on door and body.
Doubly flanged edges and a narrow door gap prevent dust and water from entering the cabinet when opening the door.
Door(s) with seamlessly foamed gasket; Single door version: opening direction can be set to left or right hand hinge, standard is right side. Change of opening direction without drilling. Double door version: right door overlaps.
Concealed hinges made of steel; opening angle 180°.
Closure: up to a height of 400 mm with 1 turn lock, from a height of 401 mm with 2 turn locks, from 801 mm with 3-point locking, standard actuation 3 mm double-bit.
Doors with a width from 300 mm and a height from 400 mm are fitted on both sides with bolted reinforcement and hole profiles with fixing drillings in 25 mm increments for screws size M5.
Bottom panels with a width of ≥ 400 and a depth of ≥ 200 mm with external cable entry panel(s) made from sheet steel. Fixing takes place using Gefu-screws M4 with Torx T20.
Mounting panel on the back wall with securing screw standard length M8x30, maximum 10 mm depth-adjustable. The edged mounting panel is fixed.
Wall attachment: Back wall with 4 drillings Ø 9 mm for installation of wall mounting brackets.
Sheet steel with improved pre-treatment by iron phosphating and rinsing with demineralized water as well as environmentally friendly powder coating.
Technical data
-
Article number: 3331-1080-40-07
-
Variant: without mounting plate
-
Material: Sheet steel
-
Width: 1000 mm
-
Height: 800 mm
-
Depth: 400 mm
-
Weight: 44.16 kg
-
Number of cable plates: 2
-
Cable plate size: size 1
-
Sheet thickness: Body: 1,5 mm
Door: 2 mm -
Maximum installation depth: T-24 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Closure: plastic housing, locking bolt: GDZn black, latch: galvanized
-
Authorization: cULus
-
Protection class: IP55
Type 1, 2, 5, 12
Notice
- Compact handle 3070-0908-00-01 (for elongated barrel). Other modifications on request.
- Enclosure complete,fixing kit for grounding as well as one key. Depending on dimensions with cable entry plate(s).
